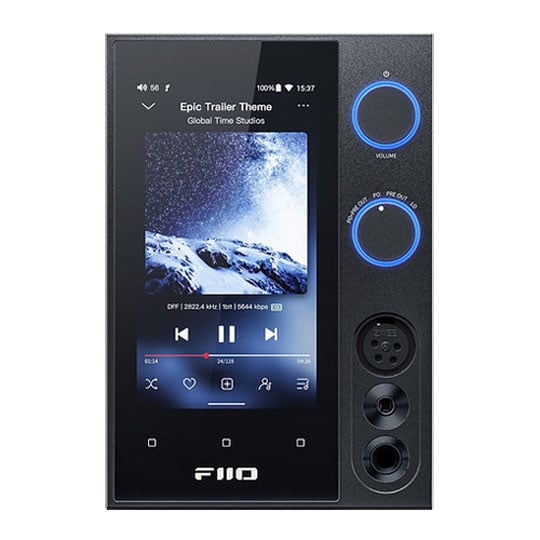

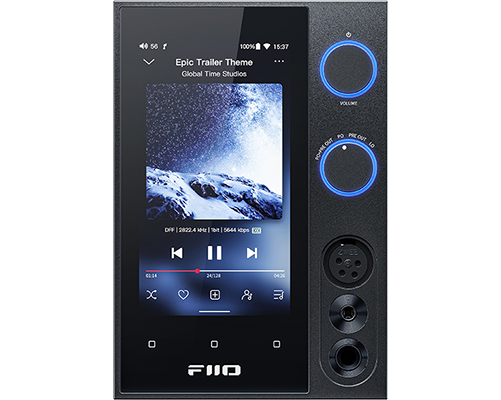

FiiO R7 Desktop Streaming Player and DAC/Amp
FiiO - R7 Desktop High-Resolution Transmitter Decoder and Headphone Amp
Email me when the availability or price changes
Desktop High-Resolution Transmitter
Decoder and Headphone Amp
FiiO - R7
a new era of desktop HiFi experience!Building a desktop HiFi system has always been full of compromises. Stacking various brands of equipment together makes it to hard have an elegant and compact setup. For streaming media, such a setup usually brings an unacceptable experience.But now there is a new solution. The FiiO HiFi desktop experience version 1.0 is now available. With the R7 serving as the centerpiece, and backed by the SP3 speakers and FT3 headphones, You will experience a consistent and highly enjoyable audio and visual device.
The R7 combines transmitter/decoder/amp/preamp/media playback functions into a single unit. Numerous connections and expansion capabilities are included, along with a wide variety of operating modes, it is also capable streams media on a gorgeous portrait screen for an extraordinary user experience. The R7 brings you an attractive-looking, easy-to-use and great- sounding desktop HiFi experience!
at a glance
• Full range of inputs and outputs
• Four output modes
• DC/AC dual power supply
• Eight operating modes
• ES9068AS+THX AAA 788+*2
• Five gain levels
• 3.6W output power
• Portrait media streaming
• Snapdragon 660+Android
• Customizable RGB lights
• Ethernet port
• Personalized screensaver
• Exclusive DP mode
• Dual USB ports

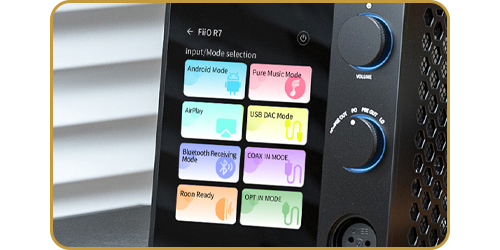

Multiple Modes
Exceptional ExperiencesAndroid mode: Enjoy third-party apps, such as major streaming services. Pure Music Mode: Exclusive FiiO pure music mode for an even more immersive experience. USB DAC mode: Greatly improve the sound of any computer/phone by connecting to them as a decoder. Bluetooth receiver mode: Supports LDAC/SBC/AAC, making it easier to listen to stunning sound quality. AirPlay receiver mode: Wirelessly connect iPhone/iPad and other iOS devices, giving them a huge boost in sound quality. Roon Ready Mode: Roon Ready certified gives you an ergonomic player in seconds. Coaxial/optical decoding mode: By being able to receive optical/coaxial signals, the R7 turns into a high-performance decoder.
Convenient and Intuitive
micro-SD card supportThe R7 is unique in that it's easy to use and offers an astounding number of ways to listen. When listening to music streaming apps, easily switch between headphones and speakers or any other output mode. Conveniently listen to songs stored locally on the R7 - thanks to its built-in storage and micro-SD card support - or receive Bluetooth audio from your phone with support for high-resolution Bluetooth audio formats. With the R7, you can truly listen any way you want. R7 supports micro-SD cards up to 2TB and comes with a micro-SD card holder. R7 features Bluetooth 5.0; supports reception of SBC/ AAC/LDAC; supports transmission of SBC/AAC/aptX/ aptX HD/LDAC/LHDC.
Cutting-Edge Technology
USB HOSTFor even more ways to listen, you can fully utilize the USB HOST interface to connect external portable drives, the FiiO KB1 keypad and other devices for an even more convenient desktop HiFi experience that is especially suited for you. You can use the portable drive to store a large amount of your favourite lossless music. The KB1 allows you to conveniently change tracks, adjust the volume, and switch output modes while listening to those tracks on the portable drive.
HeadphonesThrough either the XLR and 4.4mm balanced outputs or the 6.3mm single-ended output, connect the R7 to the FT3 or other headphones for faithfully reproduced music.

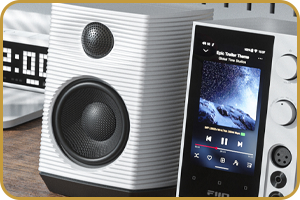

Active SpeakersConnect the R7 to the SP3 or other speakers via the XLR, RCA single-ended, USB, coaxial or optical ports and enjoy truly immersive three-dimensional sound in a grand soundstage.
Headphones & Active SpeakersThe R7 can serve as a convenient hub to connect both speakers and headphones. Turn the knob to conveniently switch between listening devices by changing the output mode.

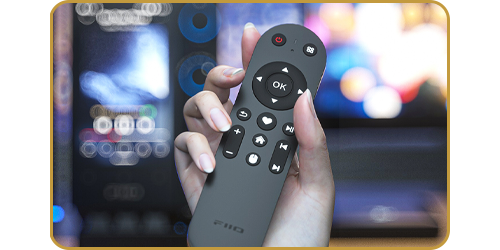

Remote Control Freedom
Remain comfortableUsing the FiiO Music app or a Bluetooth remote control allows you to control your music from a distance, and conveniently handle multiple operations with ease. A FiiO will also be launching a customizable universal Bluetooth remote control in the future too!

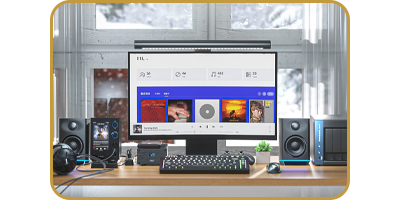

A Complete HiFi Desktop Setup!
the heart of entertainmentWhen connected to a NAS and playing music through DLNA, the R7 works as your control hub for accessing your music. The R7 is also Roon Ready certified, so you can access music from a ROON CORE source such as a NAS or a computer.
The R7 itself can also act as a network music server thanks to being compatible with the DLNA transmission protocols. Through DLNA, on another device one can access the music on the R7's internal storage, micro-SD cards, and even tracks on a connected external portable drive.

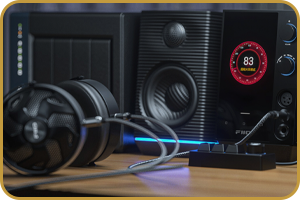

The FiiO HiFi Desktop Experience Version 1.0
world-class listeningIf you're a beginner or a professional audiophile, you can easily get started with building a desktop HiFi setup around the R7.
You can also synergistically further pair the R7 with other FiiO products to enhance your listening experience even further, opening the door to a totally new and refreshing desktop HiFi experience.
The Pursuit of Great Sound

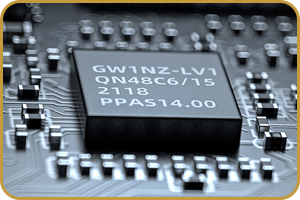

4th-gen FPGA4th-gen FPGA with phase-locked loop clock tech+2 femtosecond crystal oscillators allow for a high-precision, low-jitter unified clock source for cleaner and more stable audio.

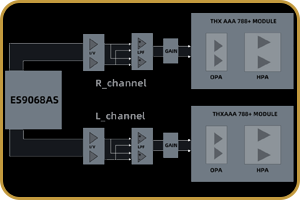

Specially-optimized designThe R7 utilizes an ES9068AS DAC together with a pair of THX AAA 788+ headphone amplifiers. The R7 includes other premium components, such as four Panasonic PPS film capacitors.
5 gain levelsThe R7 has five gain levels: low/medium/high/over-ear headphone/enhanced over-ear headphone levels. Under a 32Ω load using enhanced over-ear headphone mode, the R7 can output up to 3.6W, more than enough to power low-and high-impedance headphones.
The Root of Great Sound
DC/AC dual power supply designInside the R7 is a 30W switching power supply. The AC input circuit uses filtering and purification with a large capacity choke and dedicated high-voltage capacitors. The DC input circuit is of a 12V high-voltage power supply design. Both power circuits add to the robustness of the power supply system, to give it that dynamic sound to your music. The R7 can also be used with external DC power supplies, such as the FiiO PL50 linear power supply or other power supplies to give your sound an even purer, blacker background to truly make the musical details pop. (Only 12V-3A external DC power supplies are supported).
Premium ComponentsThe 12 470uF tantalum capacitors help to regulate and purify power in the power supply and thus further reduce power supply noise. In addition, the specially-designed metal cover locks the transformer in place to the main power supply board, reducing the jitter of the power supply and resulting in more stable power.
Power supply design with numerous LDOsThanks to power stabilization and filtering in part due to each stage of the audio circuit employing ultra-low-noise LDOs for voltage regulation, the R7 is continuously fed with stable, clean power.
The Tech Spec
| Features | Specification | Weight | 1.282 kg |
|---|---|
| Dimensions (HxWxD) | 110 x 134 x 160 mm |
| Amplifier type | THX AAA-788+ x 2 |
| Frequency Response | 5Hz~ 50kHz: attenuation < 1dB 20Hz~ 20KHz: attenuation < 0.3dB |
| DAC Chip | ES9068AS |
| Output power | Max 3000mW |
| Output Impedance | < 0.5Ω |
| THD+N | < 0.0005% (1kHz / -8dB@32 Ω) |
| Sample rate | Max 384kHz/32bit; DSD256 (Native) |
| SNR | ≥ 124dB (dbA) |
| Input impedance | Single Ended: 16 ~ 150Ω | Balanced: 16 ~ 300Ω |
| Built-in Memory | 64GB |
| External memory | Up to 2TB |
| Display | 4.97 inches (720 * 1280) full-fit screen |
| Digital inputs | USB x 2 | 100M Ethernet port | Optical x 1 |
| Analogue outputs | 4.4mm x 1 | XLR x 1 | 3 Cores XLR x 2 | Optical x 1 6.35mm x 1 |
| Digital outputs | Coaxial x 1 |
| Bluetooth | AAC/SBC/aptX/aptX HD/LDAC/LHDC |
| Wi-Fi | 2.4GHz/5GHz |
