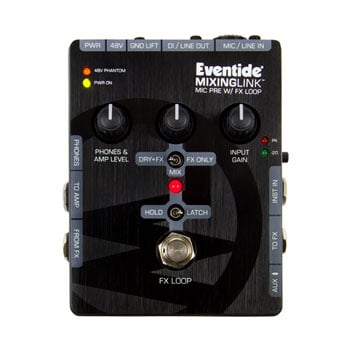

Eventide Mixing Link Mic Preamp with FX Loop
Eventide - Mixing Link, Microphone Preamplifier and FX Loop Pedal, with 70dB of Gain, Phantom Power, Hold/Latch Modes
Email me when the availability or price changes
Finance this product
- With a 10% deposit from just £9.53 / month (APR 19.9%)
- SCANPROTECT Protect against installation damage for 28 days.
Mic Pre with FX Loop
Eventide - MixingLink

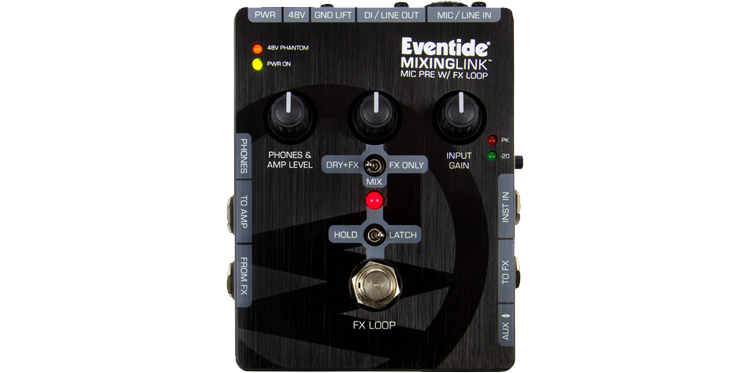

High Quality Mic Pre with FX LoopThe Eventide Mixing Link preamp pedal is the perfect addition to any live vocal chain, delivering exceptional sound quality and versatility. Featuring a high-performance preamplifier with phantom power, ample gain for low-output microphones, and ultra-low noise operation, it ensures crystal-clear vocals with professional-grade clarity.
Its flexible effects loop supports both balanced and unbalanced signals, allowing you to seamlessly incorporate studio effects or guitar stompboxes to shape your sound. Designed for vocalists who want more creative control, the Mixing Link makes integrating effects effortless, whether you're performing live or recording in the studio.
at a glance
• Latching or momentary footswitch control of FX loop for performance effects
• Works with a wide range of microphones including condenser and ribbon mics with up to 65dB of clean gain
• Aux I/O connection supporting stereo input and send
• Guitar amp output and headphone monitor output with separate master volume control
• International universal power supply included
• Operates on 9V battery (no phantom power when operating on a battery)
• 48V phantom power for condenser mics
• Balanced XLR output which supports DI and line levels
• Instrument and balanced line level inputs
Suggested Uses

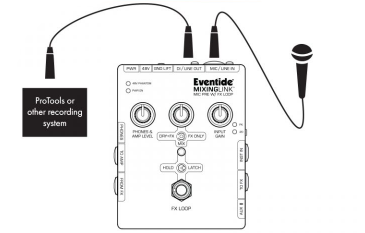

High Quality Mic PreUse the MixingLink as a compact studio mic pre for recording with Pro Tools, Ableton, or any other D.A.W.

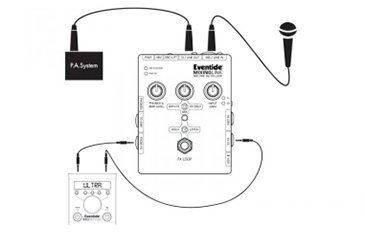

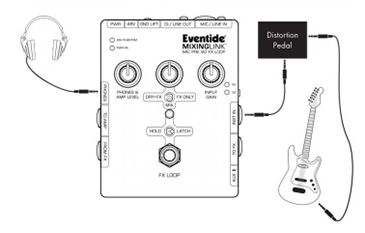

Sing Thru StompboxUse the MixingLink to connect a microphone to your favorite stompbox(es) to add effects to your vocals.
Hotel Practice AmpUse the MixingLink as a hotel practice amp.

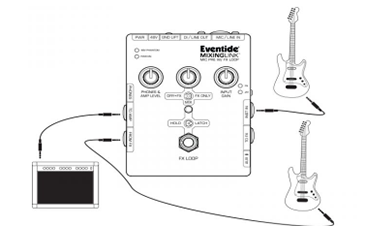

A/B Switching BoxUse the MixingLink as an A/B Box to switch between two instruments.

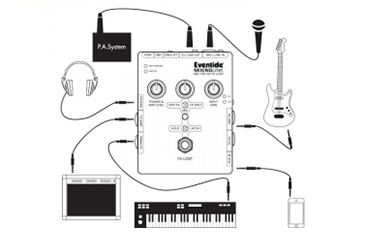

use as a mixerUse MixingLink as a mixer to connect multiple sources to an amp or headphones.

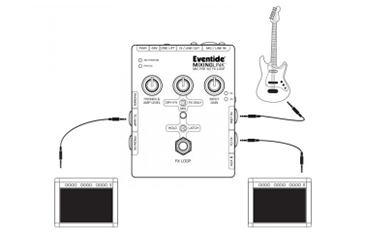

1 Instrument, 2 AmplsUse MixingLink to split and blend one instrument between two amplifiers.

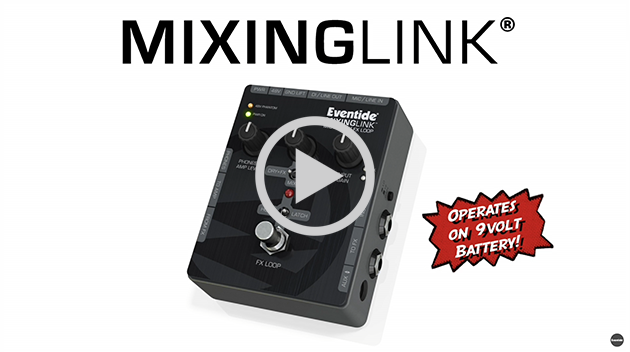

Eventide MixingLink Introduction
The Tech Spec
| Features | Specification | Preamp Type | Solid State |
|---|---|
| Number of Channels | 1 |
| Phantom Power | Yes (AC adapter required) |
| Pads | -20dB |
| Analogue Inputs | 1 x XLR (mic/line), 1 x 1/4" (Hi-Z), 1 x 1/4" (FX return), 1 x 1/8" (aux) |
| Analogue Outputs | 1 x XLR (DI/line out), 1 x 1/4" (to amp), 1 x 1/4" (FX send) |
| Headphones | 1 x 1/8" |
| Power Source | 9V DC power supply (included) / 9V battery |
| Height | 1.5" |
| Depth | 3.6" |
| Width | 2.65" |
| Weight | .43 kg |
