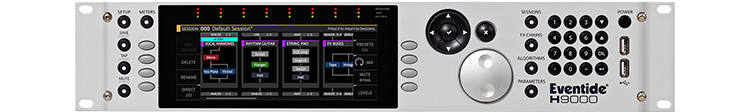

Eventide H9000 Expandable 16-Channel Effects Processor
Eventide - H9000 Harmonizer Processing Unit, 4 x Quad-Core ARM Processors
Email me when the availability or price changes
Finance this product
- From £191.71 / month (APR 16.9%) or 0% for 4 months
- With a 10% deposit from just £180.67 / month (APR 19.9%)
Expandable 16-Channel Effects Processor

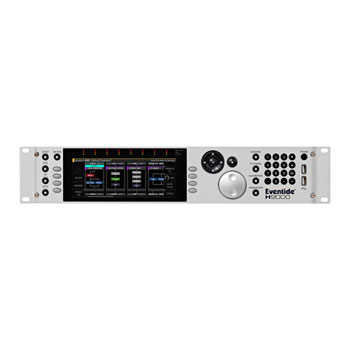

Eventide - H9000
Powerful Multi-FX ProcessorEventide’s flagship multi-effects processor, the H9000, continues our unbroken tradition of delivering industry-leading signal processing power to the pro audio community. The culmination of nearly fifty years of R&D, the H9000 comes loaded with over 1600 unique algorithms from recreations of beloved classics to Eventide’s latest and greatest effects. The wealth of included effects will offer users many years of exploration and inspiration.
The H9000 is available in two versions, the standard H9000 and the H9000R. The H9000 with full front panel UI is priced at $7,999. The blank front panel H9000R is priced at $5,999 and requires Emote for operating.
16 ChannelsUSB audio
16 DSP EnginesFour quad core ARM processors
8 ChannelsAnalog audio I/O
at a glance
• AES/EBU, ADAT, S/PDIF: Up to 8 channels
• World-class USB audio interface
• Expandable I/O: Three expansion slots for additional audio connectivity
• Hardware Meters: 8 assignable LED meters – front panel version only
• Emote control software app for Mac & PC is available as a standalone app or AAX, VST, AU plug-in
• FX Chains: Innovative approach for setting up and managing complex effects
• Network Connectivity via LAN or WiFi

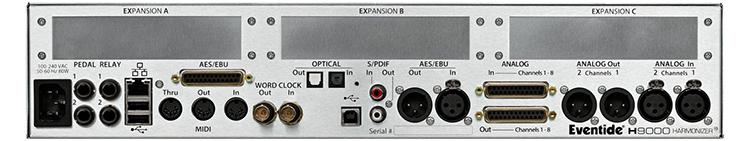

Colossal Audio I/O
the perfect platform for surround soundWith up to 128 channels of simultaneous signal processing and a generous complement of analog and digital audio I/O, the H9000 is the perfect platform for surround sound and for processing many tracks of audio simultaneously. Audio I/O includes 8 channels of pristine analog audio, 16 channels over USB, 8 channels of AES/EBU, ADAT optical, and S/PDIF. Whether you use it live or in a studio, the H9000 gives you plenty of external control options.
• MIDI In, Out and Thru. MIDI Thru allows you to daisy chain MIDI controlled devices.
• 2 1/4″ TRS Inputs – Connect up to four foot pedals, or four control voltage sources, or six auxiliary switches, or a combination.
• 4 USB Ports – Two on front, Two on back. Connect USB MIDI controllers, save and restore presets from a USB thumb drive, enable WiFi using the supplied WiFi dongle.

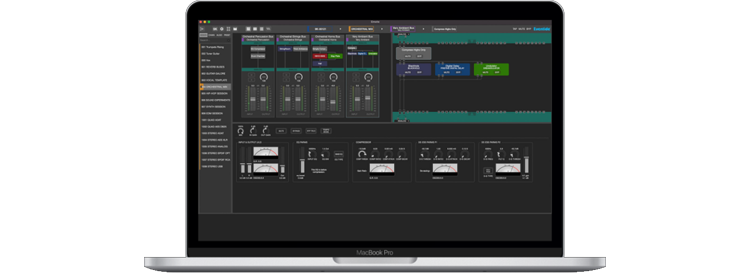

Emote
Remote Control App / Plug-inEmote gives you control of all of the features and settings of your H9000 multi-effects processor, allowing you to craft your effects quickly and intuitively. Think of Emote as your artistic partner, letting you dig deeper into the creative potential of the H9000. Emote can be used as a stand-alone application for Mac and Windows and as a plug-in for AAX, AU, VST, and VST3. Emote can connect to your H9000 via a direct ethernet connection, a networked connection using an ethernet cable from your router, or wirelessly using the included Wi-Fi dongle.
Intuitive, Powerful Interface
it just 'feels right'
The most gratifying comments that we’ve received about the H9000’s interface is that it feels right. Words can’t properly convey what makes the H9000 feel good to use, but we can say a lot of attention to detail went into crafting its interface.
The H9000’s big wheel is custom machined and has been carefully weighted to give it the right amount of inertia when spun. The H9000’s custom designed buttons were chosen for their particular tactile response. And the H9000’s large, crisp color display is driven by a dedicated ARM processor to ensure that the H9000 feels fluid and responsive when used.
The H9000’s core functionality is encapsulated in the four mode keys SESSIONS, FX CHAINS, ALGORITHMS, and PARAMETERS. User presets of Sessions, FX Chains, and Algorithms can be saved and recalled.

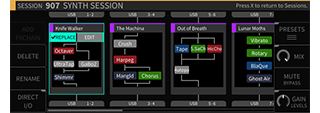

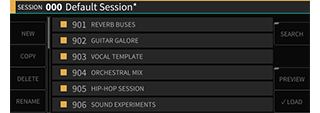

A Session is the “big picture” for the H9000, a snapshot of the current state of all of settings.

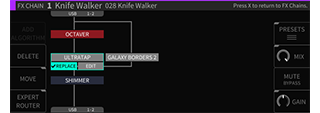

An FX Chain is a user defined combination of up to four algorithms. Algorithms can be connected in parallel, series or parallel/series.

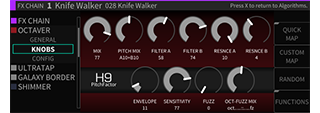

Parameters are the individual adjustments you can make within an effects algorithm which customize that effect.
Algorithms are the H9000’s “secret sauce”, with specific effects parameters that are adjustable by you, the user.

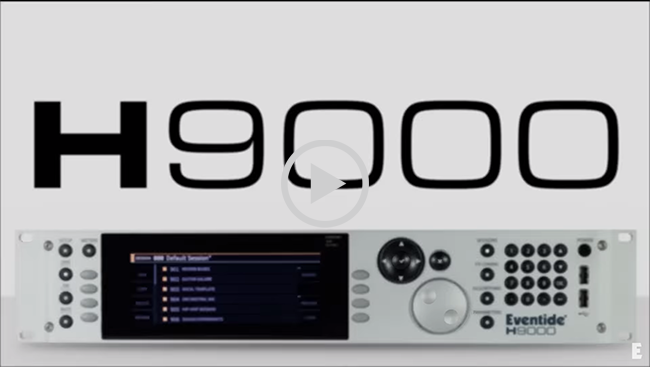

Introducing the Eventide H9000 Harmonizer
The Tech Spec
| Features | Specification | System Requirements | For Optional Software Control: Mac OS X 10.9 or Later Mac Computer Equipped with a USB Type-A Port Core-Audio-Compatible application Host Software That Supports AAX Native, Audio Units, or VST Plug-In Formats (for Plug-In Use) |
|---|---|
| Rack Height | 2 RU |
| Effects Type | Multi-Effects |
| Channels | 16 |
| Effect Variations | 50 Effect Types |
| Presets | Types: Algorithm, FX Chain, and Session Total: Over 9000 |
| User Memory | Internal Memory External Storage Via USB Flash Drive |

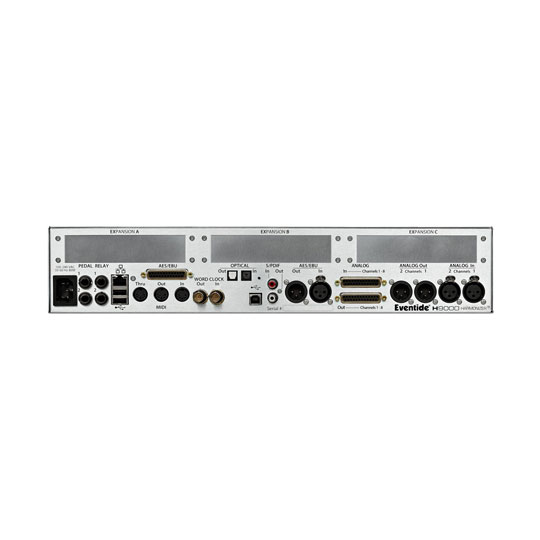

| Inputs | 2 x XLR 3-Pin (Analog) 1 x DB25 (8 Channels, Analog) 1 x XLR 3-pin (2 Channels, AES/EBU) 1 x DB25 (8 Channels I/O, AES/EBU) 1 x RCA coaxial (2 Channels, S/PDIF) 1 x TOSLINK optical (2 Channels in S/PDIF Mode, 8 Channels in ADAT Mode) |
| Output | 2 x XLR 3-Pin (Analog) 1 x DB25 (8 Channels, Analog) 1 x XLR 3-Pin (2 Channels, AES/EBU) 1 x DB25 (8 Channels I/O, AES/EBU) 1 x RCA Coaxial (2 Channels, S/PDIF) 1 x TOSLINK Optical (2 Channels in S/PDIF Mode, 8 Channels in ADAT Mode) |
| AD/DA Conversion | Up to 96 kHz |
| Sample Rates | Up to 96 kHz Using Analog, USB, AES/EBU, or S/PDIF via RCA Up to 48 kHz Using ADAT or S/PDIF via Optical |
| USB | 4 x USB 2.0 Type-A for External Storage, Wi-Fi Dongle, and USB MIDI Controller 1 x USB 2.0 Type-B for 16-Channel Audio Interface Functionality |
| MIDI | 1 x MIDI 5-Pin Input 1 x MIDI 5-Pin Output 1 x MIDI 5-Pin Thru |
| Word Clock | 1 x BNC Input (50 Ohms) 1 x BNC Output (50 Ohms) |
| Ethernet | 1 x RJ45 |
| Pedal Control | 2 x 1/4" TRS Inputs |
| Relay Input | 2 x 1/4" TRS |
| External Storage | USB Hard Drives or Flash Drives |
| Expansion | 3 x Expansion Slot |
| Display | Front-Panel Color Screen |
| Signal to Noise Ratio | 120 dBA at 44.1 kHz 114 dBA at 48 kHz or Greater Sample Rates |
| Total Harmonic Distortion | 0.002% |
| Power Requirement | 100 to 240 VAC, 50/60 Hz, 80 W |
| Dimensions | 19 x 3.5 x 12.5" / 48.3 x 8.9 x 31.8 cm |
| Weight | 6.4 kg |
