eten HDP-150T HDMI-over-PoE Transmitter
Scan code: LN51882
Manufacturer code: HDP-150T
£140.99
eten HDP-150T HDMI-over-PoE Transmitter
eten HDP-150T HDMI 1.3b over IP PoE Transmitter ONLY ideal for Video Wall multicasting with Gigabit Ethernet LAN
Scan code:
LN51882
Manufacturer code:
HDP-150T
Order now and get it tomorrow, Wed 15th Jan
Email me when the availability or price changes
Product Overview
The HDP-150T/R Series is an innovative HDMI-over-PoE digital signage Solution. Designed with transmitting units (HDP-150T) and receiving units (HDP-150R), it is exceptionally scalable, offering any combination up to 8x16 matrix video wall arrangement. The HDP-150T/R Series riches video wall connectivity options to public premises such as sports bars, cinemas, transport stations, or highly demanded monitoring sites such as emergency response centers, security organization, or traffic monitoring units.
PoE Connectivity, Centralization and Grouping
The HDP-150T/R series support powered by 802.3af PoE & DC5V, support remote power on/off by PoE managed switch. Support plug-and-play by rotary DIP switch to adjust different group or software utility.
How it works

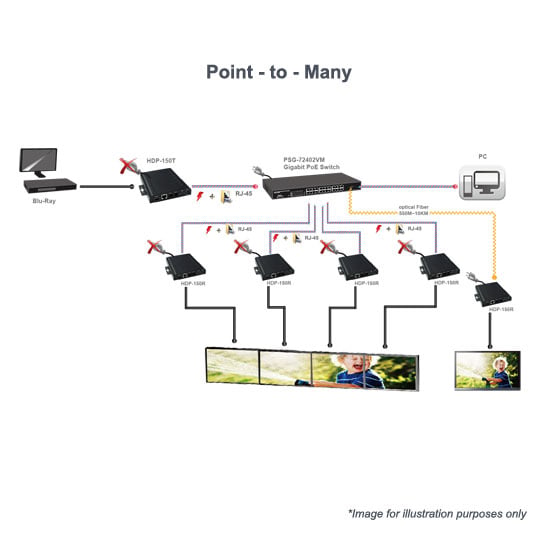

In the system, video signal is distributed by connecting HDMI-over-PoE digital signage Transmitter (HDP-150T) to HDMI video source. At each of displaying monitors, one receiving unit (HDP-150R) is attached to complete the system. The solution is highly flexible that Point-to-Point or Point-to-Many topologies could be conveniently arranged. And to meet wider range of application requirement, Many-to-Many connection is also easily achievable and manageable through IGMP v1/2 with a managed network switch, where multiple video sources could be freely distributed to required monitors. The video gridding layout is modifiable with software utility provided. With advanced multicasting technology the bandwidth is not heavily loaded.
Features • Flexible and scalable HDMI 1080p Video Wall multicasting with Gigabit Ethernet LAN
• Multicasting architecture, no more bandwidth loading
• Support MxN display array in a single Video Wall system.
• Transmits an HDMI signal over one CAT5e/6/7 cable.
• HDMI 1.3b and HDCP 1.2 compliant
• Dual power input: 802.3af compliant PoE & DC5V
• Up to 8 transmitters and 128 receivers possible in a single system
• Built-in rotary DIP switch to change Group ID
PoE Connectivity, Centralization and Grouping
The HDP-150T/R series support powered by 802.3af PoE & DC5V, support remote power on/off by PoE managed switch. Support plug-and-play by rotary DIP switch to adjust different group or software utility.
How it works
In the system, video signal is distributed by connecting HDMI-over-PoE digital signage Transmitter (HDP-150T) to HDMI video source. At each of displaying monitors, one receiving unit (HDP-150R) is attached to complete the system. The solution is highly flexible that Point-to-Point or Point-to-Many topologies could be conveniently arranged. And to meet wider range of application requirement, Many-to-Many connection is also easily achievable and manageable through IGMP v1/2 with a managed network switch, where multiple video sources could be freely distributed to required monitors. The video gridding layout is modifiable with software utility provided. With advanced multicasting technology the bandwidth is not heavily loaded.
Features • Flexible and scalable HDMI 1080p Video Wall multicasting with Gigabit Ethernet LAN
• Multicasting architecture, no more bandwidth loading
• Support MxN display array in a single Video Wall system.
• Transmits an HDMI signal over one CAT5e/6/7 cable.
• HDMI 1.3b and HDCP 1.2 compliant
• Dual power input: 802.3af compliant PoE & DC5V
• Up to 8 transmitters and 128 receivers possible in a single system
• Built-in rotary DIP switch to change Group ID
