ESI Planet 22X Pro Dante Audio Interface
ESI - Planet 22X Pro Dante Audio Interface, Dual XLR-1/4" Mic/Line/Hi-Z Inputs, Includes Power Supply & Software Bundle
Email me when the availability or price changes
Finance this product
- From £19.29 / month (APR 16.9%) for 24 months or 0% for 4 months
- With a 10% deposit from just £9.87 / month (APR 15.9%)
Suggested Alternatives
PreSonus AVB-D 16 16 Channel I/O AVB to Dante BridgePreSonus AVB-D 16 16 Channel I/O AVB to Dante Bridge
LN110652
No customer review
Professional Dante Audio Interface with 2 Inputs / 2 Outputs
ESI - Planet 22x
Dante Interface with professional audio quality
ESI’s planet 22x is a revolutionary new audio interface that combines the most modern networking audio technology based on the popular Dante protocol with the requirements of a professional high end desktop recording audio interface in studio and in mobile environments.
The audio interface is equipped with ultra high quality 24-bit / 96kHz AD converters with 118dB(a) dynamic range and 24-bit / 96kHz DA converters with 123dB(a) dynamic range. The two balanced analog line inputs can also be used with the integrated ultra low noise and precise professional microphone preamplifiers and the special Hi-Z instrument input stages. The balanced master line output can be controlled with a high precission master level step-potentiometer, plus there is a high quality headphone amplifier on the unit.
planet 22x can be powered either via an included 12V DC power supply or via the network cable as a PoE (Power over Ethernet) device. This makes it possible to use the interface even when there is no power outlet close by.
By supporting Dante, planet 22x combines and works with any other Dante devices in an IP audio network, which makes it also a cost effective solution to extend any existing network with additional audio channels, yet it has also been designed to be a flexible professional audio interface using the Dante Virtual Soundcard for any modern recording applications on both Mac and PC - in any professional studio environment.
at a glance
• Dante network audio interface with 2 analog inputs and 2 analog outputs
• 2 balanced XLR / TRS combo inputs
• 2 balanced XLR outputs
• high end 24-bit / 96kHz AD converters with 118dB(a) dynamic range
• per channel professional low noise microphone preamplifiert with adjustable gain
• includes Bitwig Studio 8-Track digital audio workstation software
• +48V phantom power for connected microphones
• 12V DC power supply included
The Tech Spec
| Features | Specification | Form Factor | Desktop |
|---|---|
| Display | 2 x Multi-Segment LED Meter |
| Channels of I/O | Analogue: 2 Input / 2 Output at 96 kHz |
| Maximum Sampling Rate | 96 kHz / 32-Bit |
| Number of Microphone Preamps | 2 Preamps |
| Gain/Trim Range | Mic Inputs:
+19 dB to +67 dB Line Inputs: +13 dB to +42 dB Hi-Z Inputs: 0 dB to +29 dB |

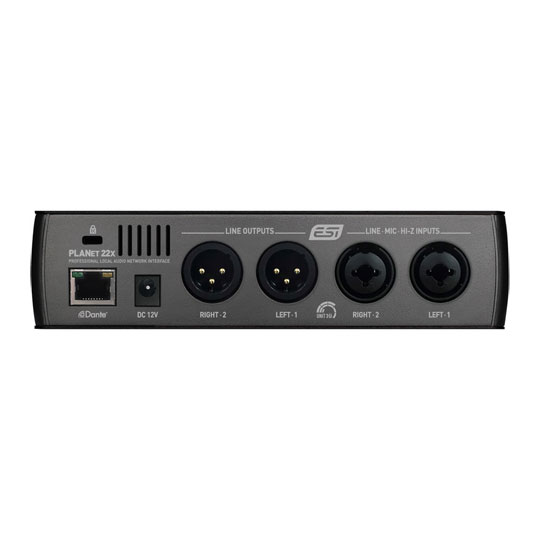

| Analogue Audio I/O | 2 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input 2 x XLR 3-Pin Balanced Line Output 1 x 1/4" TRS Unbalanced Headphone Output |
| Frequency Response | Mic, Line, Hi-Z Inputs:
20 Hz to 20 kHz ±0.1 dB Line Outputs: 20 Hz to 20 kHz ±0.05 dB |
| Maximum Input Level | Mic Inputs:
-49 dBu (Max Gain) Line Inputs: -24 dBu (Max Gain) Hi-Z Inputs: -10.5 dBu (Max Gain) |
| Maximum Output Level | Line Outputs:
+8.4 dBu Headphone Outputs: +10 dBu |
| Impedance | Mic Inputs:
1.5 Kilohms Mic Inputs: 3 Kilohms Line Inputs: 10 Kilohms Hi-Z Inputs: 10 Kilohms Line Outputs: 110 Ohms Headphone Outputs: 32 to 600 Ohms |
| Dynamic Range | Inputs:
118 dB Outputs: 123 dB |
| SNR | Inputs:
118 dB Outputs: 123 dB |
| THD+N | Mic Inputs:
-99.8 dB Line Inputs: -102 dB Hi-Z Inputs: -100 dB Line Outputs: -110 dB Headphone Outputs: -107 dBA |
| Crosstalk | Inputs:
-110 dB Line Outputs: -110 dB Headphone Outputs: -105 dB |
| Sample Rates | 44.1 / 48 / 88.2 / 96 kHz |
| Bit Depths | 24-Bit (AD/DA Conversion) |
| Sync Sources | Dante or Internal |
| OS Compatibility | macOS Windows 7 or Later *As of November, 2021: Check with manufacturer for the most up-to-date compatibility |
| Required Hardware | Ethernet Port |
| Power Requirements | AC/DC Power Adapter (Included) or PoE |
| Dimensions | 6.89 x 4.72 x 1.77" / 17.5 x 11.99 x 4.5 cm |
| Weight | 1.3 lb / 0.6 kg |
