PreSonus AVB-D 16 16 Channel I/O AVB to Dante Bridge

Asynchronous Sample Rate ConversationNew from PreSonus comes the ‘AVB-D16’, the first plug-and-play endpoint to bridge between AVB and Dante™ networks to allow up to 16 audio channels to be sent between an AVB and Dante network with just one simple device, making it the ideal solution to connect your StudioLive Series III AVB ecosystem to your favourite Dante-equipped products like the PreSonus CDL-12 constant directivity loudspeaker.

No matter if you’re looking at your Dante network setup from Audinate’s Dante Control software or taking control of your StudioLive Series III AVB ecosystem from UC Surface or a StudioLive Series III console touchscreen, the AVB-D16 presents itself as a simple 16x16 network device. Integrated Asynchronous Sample Rate Conversion ensures that the AVB-D16 provides precision clock isolation between your AVB and Dante networks for pristine, clear audio with no dropouts or artefacts.

It even allows you to run opposing sample rates on the AVB and Dante networks. So, even if you're operating a Dante network at 96kHz, it’s still possible to connect streams between your StudioLive Series III AVB network operating at 48kHz with total confidence that the audio will be clean and error-free.

The PreSonus AVB-D16 is the first plug-and-play endpoint that bridges AVB and Dante™ networks, bringing Dante™ compatibility to the StudioLive Series III ecosystem.

at a glance • 16 x 16 AVB
• 16 x 16 Dante
• Asynchronous Sample Rate Conversation
• Precision clock isolation

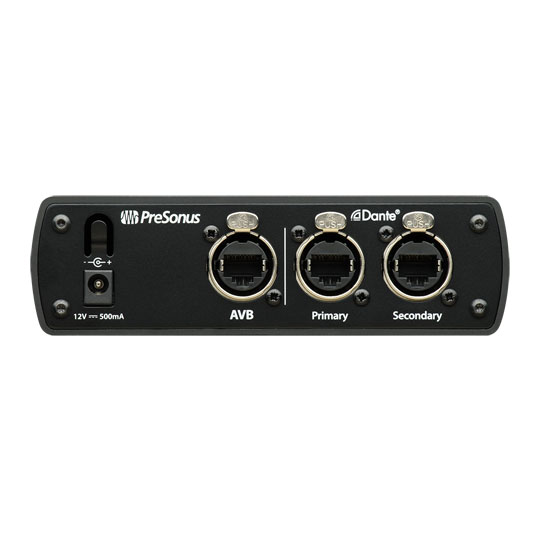

• 1 AVB port on locking etherCON
• 2 Dante ports on etherCON
• Use multiple AVB-D16 AVB-to-Dante bridges to add more channels

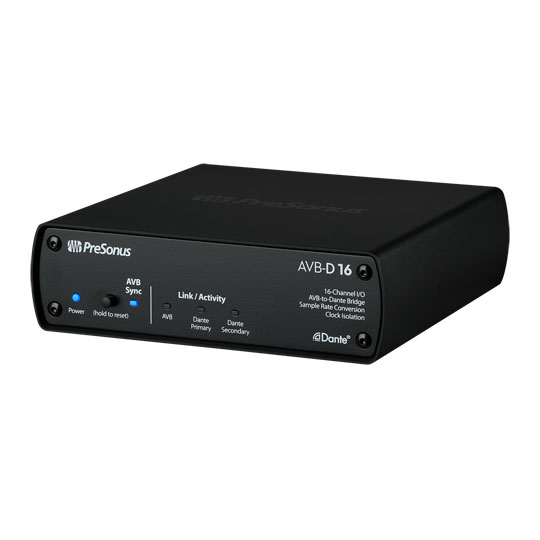

• Network Link/Activity indicators
• Support for 44.1kHz and 48kHz (AVB and Dante)
• Support for 88.2kHz and 96kHz (Dante)
