Epiphan - Pearl 2 Rackmount

Epiphan - Pearl 2 Rackmount - All in one video encoder and video production system - Rackmount

Thumbnail 1 : Epiphan - Pearl 2 Rackmount Thumbnail 2 : Epiphan - Pearl 2 Rackmount Thumbnail 3 : Epiphan - Pearl 2 Rackmount
Scan code: LN103713 Manufacturer code: EPI-ESP1151
£8,758.99Item currently awaiting an ETA
Pre order
From £246.97 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £793.54
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £8,758.99
Total inc. interest: £9,522.47
Monthly Payment: £427.69
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £8,758.99
Total inc. interest: £10,264.38
Monthly Payment: £306.72
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £8,758.99
Total inc. interest: £11,041.79
Monthly Payment: £246.97
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £8,758.99
Total inc. interest: £11,854.20
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £232.75 / month (APR 19.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Epiphan - Pearl 2 Rackmount

epiphan pearl 2 rackmount

All-in-OneThe Pearl 2 Rackmount from Epiphan is an all-in-one streaming box, that utilises a web based user interface and the box itself to bring high quality, 1080p60 (4K30 on upgrade) to a range of platforms, including local recording, Twitch, YouTube and education based CMS like Moodle or Kaltura.

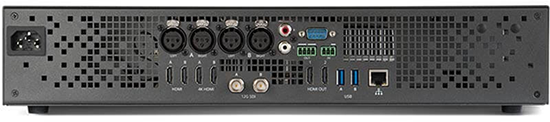

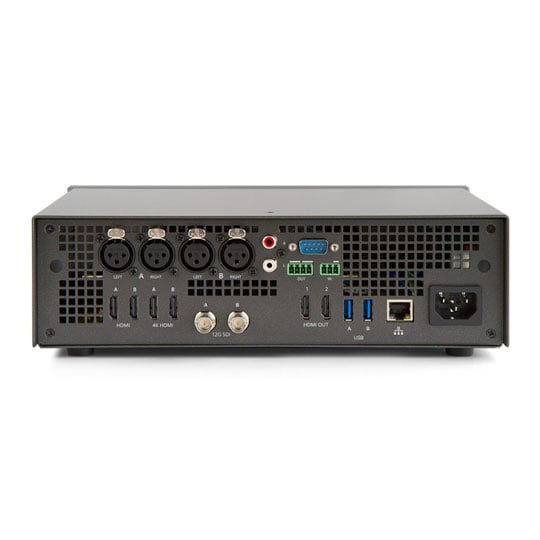

photograph of epiphan pearl 2 rackmount streaming switcher showing rear connectivity

Touch Screen Situated on the front, Pearl 2's screen gives you the options to switch between layouts or 'channels' and enter the settings. There's also a button for when you get things set up just right on the backend for instant recording or streaming.

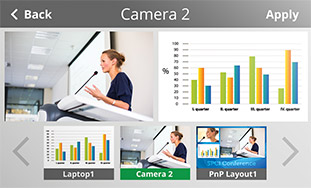

screenshot of epiphan pearl 2 rackmount touchscreen user interface with multiple video inputs This massive amount of flexibility gives you the option to capture six video sources at once and then stream out into one 4K or six Full HD programs. When you combine the options on the backend, you'll be able to pull in your own images to be used as lower thirds or whatever you want.

HDMIInput and Output

12G SDIPorts

USB 3.0Device Support

XLRAudio Ports

RCAAudio Ports

RS-232Serial Port

Processor, Hard Drive

photograph of production operator using epiphan pearl 2 to switch video feeds of live event

The Power to Drive 4K Under the hood, the Pearl 2 features a 6th gen, i7 processor to help with 4K streaming and capturing. However, to unlock this feature you'll need to buy the additional licence. While it's recommended for capturing, most people streaming from the Pearl 2 will find that bandwidth might be insufficient to stream out in 4K and 1080p is actively supported across a wider range of platforms.

Streaming and recording can take place at the same time, with streaming being able to be pushed to multiple platforms, including Epiphan's own built-in server that can be beamed out locally.

Upgrade to 4K

Speedy SSD Recording can go to the 512GB sold state drive built in, but also to a USB drive or with the right settings in place, you can even have the Pearl 2 save to a local network storage and even offload old content to it on a regular basis. Capturing takes in the full quality of the ISO you're shooting at so you can edit it in full during post-production.

Bring in your Audio With XLR and RCA ports, the Pearl 2 can also ingest into your workflow the power of a professional audio system, including your mixing desk. Those who have a penchant for impressive audio to go alongside their live streams will feel right at home.

Admin Panel

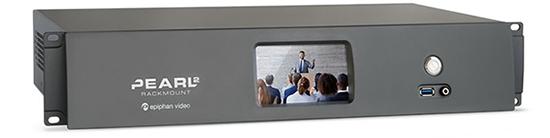

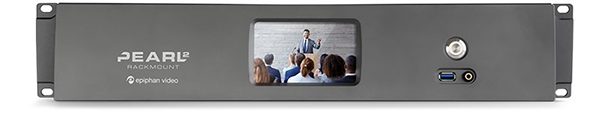

photograph of epiphan pearl 2 rackmount live streaming video switcher flat front view

Tweak and Go Daunting at first, the Admin Panel is actually incredibly easy to navigate with clearly marked sections, options and more to tweak or edit. To access it, you'll need to point your browser to the automatically assigned IP address or the static IP address that you can assign from the Pearl 2 itself. It'll ask for you to log in (Admin, no password on first set up), which will then lead you into the panel.

Channels and Layouts Here, you can begin to edit the 'channels' and layouts that Pearl 2 operates off, which work similar to other vision mixers like OBS or VMix when laying them out. Any alterations made should then be reflected on the monitor on the Pearl 2 while that channel is selected.

Each channel features layouts which can be edited to suit your needs, from different video or image sources and audio inputs. Once you have a few layouts made up in the admin panel, they'll become selectable on the touch screen or within Epiphan Live.

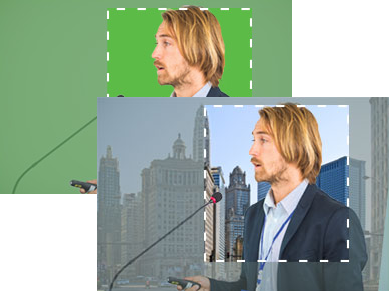

split image comparison of presenter on greenscreen and with chromakeyed video feed The Pearl 2 now supports chromakey, so you can apply a green screen effect into the video being outputted without having to reroute through any other software beforehand.

Nitty Gritty The Admin Panel also gives access to changing the bitrate, where you're pointing the Pearl 2 to stream to (stream keys, log ins) and automatic file transfers. Other streaming options are also available, like accessing the preview from the internal server for previewing.

Integrate with Crestron AV Systems & Remote Login Functionality

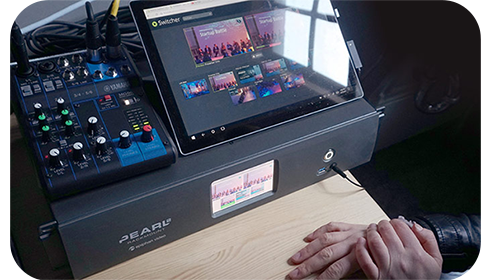

Epiphan pearl 2 rackmount sat on desk with audio interface and iPad tablet sat on top

Simple and intuitive integration Using the Crestron-developed Control Module, the bulk of the heavy coding is already done. Integrating Pearl 2 into your Crestron AV system is a snap. Build upon the Crestron Control Module’s foundation with confidence knowing that Pearl’s comprehensive API is accessible over HTTP or HTTPS for greater security. Epiphan Video is a certified Crestron partner.

REMOTE LOGIN Login to your Pearl 2 securely from anywhere over an Internet connection. Quickly take control of Pearl Mini for remote rescue troubleshooting, support technicians in the field, control recording, switching, and more.

What's more, the Pearl 2 is IT friendly and network security compliant with 802.1x support, RTMPS encryption for secure live streaming, SFTP and HTTPS data encryption for extra piece of mind.

Output Video to Local Displays

Epiphan pearl 2 rackmount sat on desk with audio interface and iPad tablet sat on top

DUAL 4K HDMI OUTPUT PORTS Show content to front of house or send it to a larger confidence monitor with Pearl 2’s two 4K HDMI video output ports. Configure to share any input source or switched program output.

The Pearl 2 allows for Local Streaming too, Use Pearl 2’s built-in streaming server to share via unicast or multicast stream to up to 50 viewers with popular streaming protocols such as HTTP, HLS, FLV, ASF, UPnP and SAP.

Why not try publishing your live video stream to a large audience using an enterprise streaming server or CDN using RTMP or RTSP? Supported CDNs including Facebook Live, Youtube, Wowza, Livestream, Akamai, Ustream and others.

Epiphan Live

Epiphan Live Logo with black and lime green text

Perfect for Digital Signage Through the Pearl 2 Admin page you can access Epiphan Live, a separate user interface that can be accessed and acts as a controller and switcher for those away from the Pearl 2 directly.

Intended to be used on almost any device with a web browser, Epiphan live is great with touch devices and any PC that can display a 1080p image will be able to control the whole Pearl 2 from the local network without any issues.

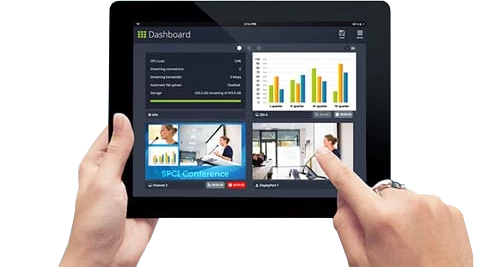

person using Apple ipad with Epiphan Live application dashboard open with 4 video With this web app you can switch channels, layouts and start recordings or broadcasts to whatever streams you've set up on the Admin Panel.


Youtube video thumbnail for Epiphan Pearl 2 and AV studio

Also from Epiphan In addition to these two systems, the Pearl 2 has direct integration with AVStudio, Epiphan's web based subscription service that you can do light editing in. This program is intended for those who have to go in and edit lots of video of presentations, live events etc. but don't need the higher end editing software to create this level of content.

This service is available from Epiphan directly.

For the Education Market

Youtub video thumnail for epiphan pearl 2 and education

Content and Learning Management System Integration Education based customers will love the Pearl 2. Not only is it easy to use for all teachers, but if you use a CMS and LMS like Kaltura, Moodle, Mediasite or Blackboard, the Pearl 2 integrates directly into their video services.

For instance, with Kaltura, you can set the Pearl 2 into a certain mode that will then work directly with Kaltura's scheduling system to go live automatically without any need to interact with the Pearl 2. It'll also then offload the content onto the CMS/LMS for use.
