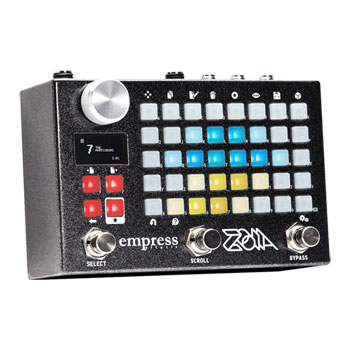

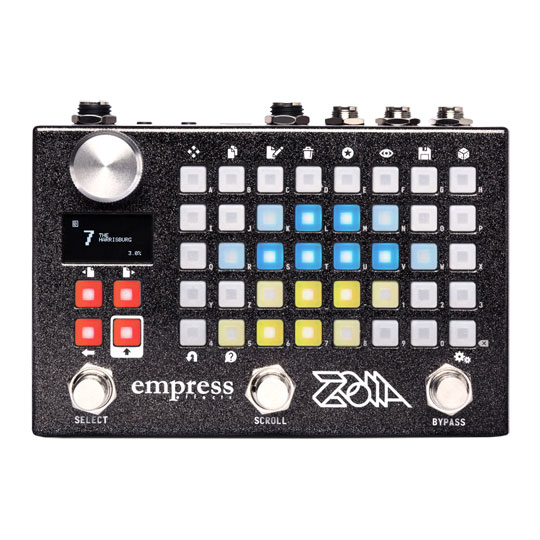

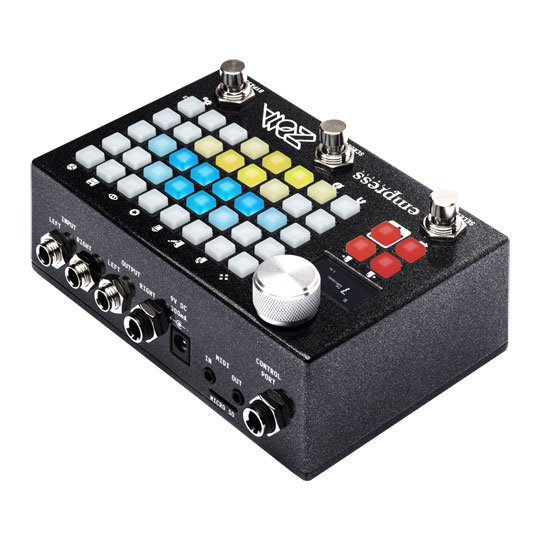

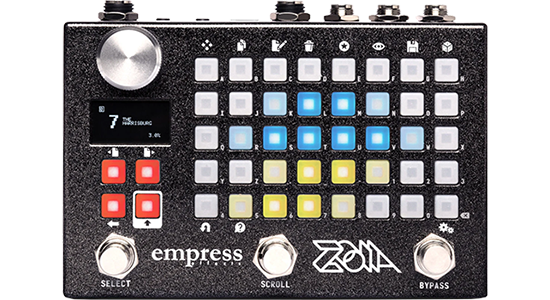

Empress Effects - 'ZOIA' Modular FX Synthesizer Pedal
Empress Effects - 'ZOIA' Modular FX Synthesizer Pedal, 80+ Modules, Up to 64 Patches, OLED Display, MIDI
- By DPD On 24th May to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- SCANPROTECT Protect against installation damage for 28 days. More info
Modular FX Synthesizer Pedal
Empress Effects - 'ZOIA'

Expand Your CreativityThe Empress Effects ZOIA is a modular synthesizer in pedal format. Rather than being a delay effect or tremolo, the ZOIA offers the modules neededto build a delay or tremolo from the ground up. But with you being the one creating it, you can customize it to do whatever you want. The ZOIA allows you to build your own custom effects, synthesizers, midi controllers, and virtual pedal boards.
To make your life easier, Empress Effects have already created modules for all your standard guitar effects. For example, if you want a phaser, you can just select a phaser. You don't have to go through manuals to discover that they're made from all-pass filters. With multiple user-friendly features and a continuously growing array of sounds, the Empress ZOIA becomes a unique addition to your pedal collection.
105.5 dBADynamic Range
10Hz – 23.4kHzFrequency Response (-3dB)
100 ΩOutput Impedance
Amazing Features
• Create your own effects, synths, control devices, and more!
• 80+ Modules and Growing with up to 64 Patches
• OLED Display Screen for Easy Editing
• Control Port and MIDI Connectivity
• 20+ Ready-Made Effects Modules
• SD Card Included
Welcome to ZOIA!

The Tech Spec
Features | Specification | Input Impedance | >= 1MΩ |
---|---|
Output Impedance | 100Ω |
Frequency Response (-3dB) | 10Hz – 23.4kHz |
Total Harmonic Distortion | 0.22% |
Dynamic Range | 105.5 dBA |
Input Headroom (no pad) | +0.5 dBu |
Input Headroom (6dB pad) | +5.7 dBu |
Input Headroom (12dB pad) | +10.8 dBu |
Output Headroom | +16.2dBu |
Power Input Connector | 2.1mm Barrel Connector |
Power Input Voltage | 9V DC (center negative) |
Required Current | 300mA |
Height (enclosure only) | 1.75” |
Height (including controls) | 2.625” |
Length | 5.7” |
Width | 3.75” |
Weight | 1.5lbs |
