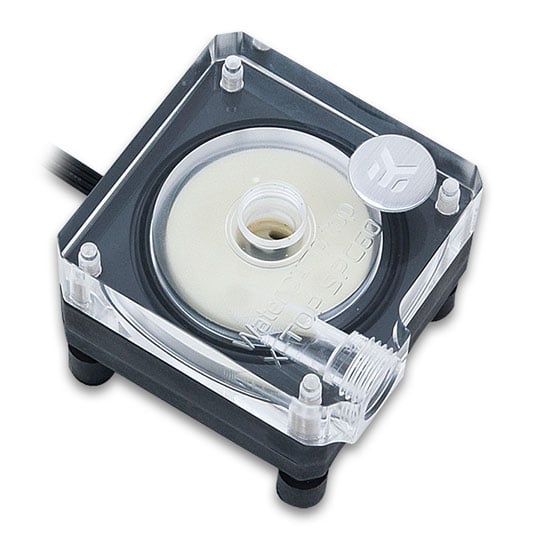

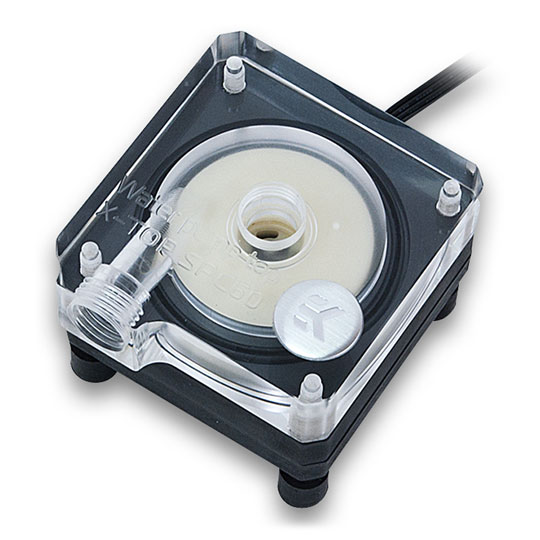

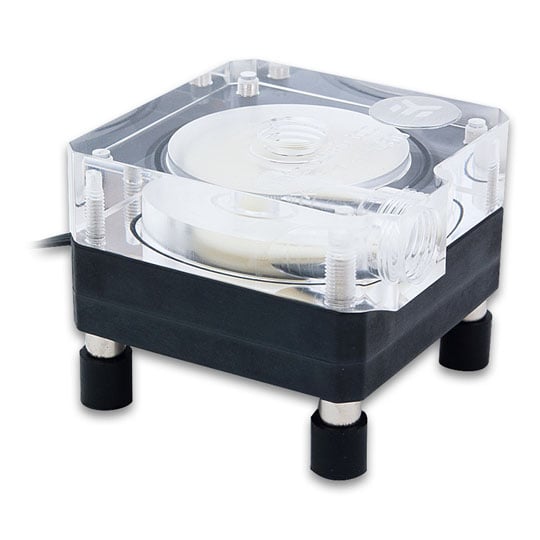

EKWB XTOP SPC 60 Plexi PWM Water Pump+Top Combi

EKWB EK-XTOP SPC-60 PWM with Pump, Clear Plexi, Standalone Design, G1/4 Threads, 450 L/h Flow, 4-pin PWM Fan connector

Thumbnail 1 : EKWB XTOP SPC 60 Plexi PWM Water Pump+Top Combi Thumbnail 2 : EKWB XTOP SPC 60 Plexi PWM Water Pump+Top Combi Thumbnail 3 : EKWB XTOP SPC 60 Plexi PWM Water Pump+Top Combi Thumbnail 4 : EKWB XTOP SPC 60 Plexi PWM Water Pump+Top Combi
Scan code: LN73292 Manufacturer code: 3831109843277
£56.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 16th Oct 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together
Product Overview EK-XTOP SPC-60 PWM is a reliable standalone, value-oriented liquid cooling pump. It has been designed to lower the production costs yet still offer great hydraulic performance at the best price.

The core of the unit is EK-SPC 60 water pump that uses only a 4-pin PWM FAN header for operation; no MOLEX connector is required! PWM control will allow you to set automatic pump speed regulation depending on your CPU temperature. Full performance on demand or whisper quiet operation in idle mode! With the maximum pressure head at 3.2m (10,5 ft), maximum flow at 450 L/h and a very compact form, we recommend this pump for smaller builds, particularly if you are assembling your custom loop in a mini ITX case.

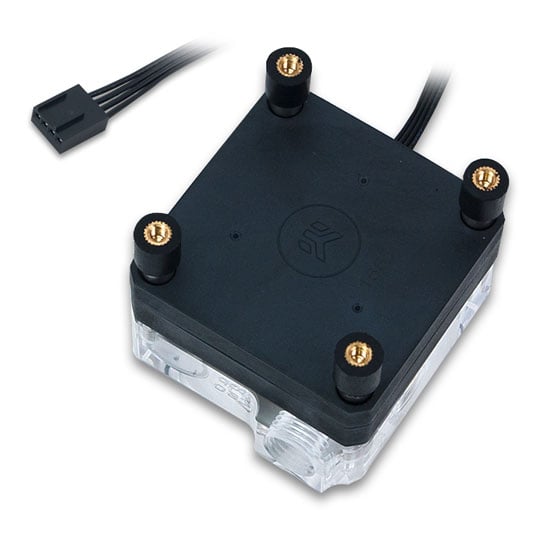

The pump features two G1/4 threaded ports of which one is an inlet on top and one is an outlet on the side of the unit. EK recommends EK-ACF series compression fittings. The top is made of quality Plexi material and the bottom features vibration-dampening rubber mounting system which effectively de-couples the water pump from the rest of the computer chassis.

EK-XTOP SPC-60 PWM - Plexi can also be upgraded with either EK-UNI Pump Bracket (120mm FAN) - Regular or Vertical (Not Included, Sold Separately), which allow installation of the product in any position with 120mm type fan hole pattern. Features Pump Electrical/Mechanical Specifications:
• Motor: Electronically commuted motor.
• Rated voltage: 12V DC.
• Power consumption: 6W.
• Maximum pressure head: 3.2m.
• Maximum flow rate: 450 L/h.
• Maximum liquid temperature: 50°C.
• Materials: PPS-GF30, EPDM O-rings, Aluminium oxide, graphite.
• Power connector: 4-Pin PWM FAN connector.

Operation Specifications:
• PWM duty cycle: ~ 20-100%.
• Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present.

Physical Specifications:
• Dimensions (W x D x H): 62 x 62 x 51 mm
• Mounting hole pattern: 50x50mm

Includes:
• EK-XTOP SPC60 - Plexi.
• EK-SPC60 PWM 12V DC pump motor.
• Mounting mechanism.
• Installation manual.
Specifications
Core Specifications
Edition EK-XTOP SPC-60 PWM
Product Type Pump
Pump Specifications
Pump Yes
Pump Type
Max. RPM
Max. Hydraulic Performance
PWM Duty Cycle Range ~ 20-100 %
Pump Voltage 12 V
Max. Power Draw 6 W
Reservoir Specifications
Reservoir No
Reservoir Capacity
Fluid Chamber Construction
Combined Specifications
Port Threads G1/4"
Temperature Monitoring
LED Lighting
Controller
Power Connector
Power Cable Length
Signal Connector
  • 1 x 4-pin fan header (KK254)
  • 1 x 4-pin fan header (KK254)
Signal Cable Length
Cabling Features
Max. Coolant Operating Temperature
Compatible Metals
  • Aluminium
  • Aluminium
Compatible Coolant
Mounting System
Installation Locations
  • 120mm Fan Mount
  • 120mm Fan Mount
Product Colour Transparent + Black Backplate
Dimensions 62 x 51 x 62 mm (WxHxD)
Weight
Additional Information
Scan Code LN73292
Model Number 3831109843277
GTIN 3831109843277
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
