EK-XTOP DDC 3.2 PWM Elite - Acetal incl. pump
EK-XTOP DDC 3.2 PWM Elite - Acetal incl. pump
Scan code: LN67640 Manufacturer code: 3831109843154
  • Thumbnail 1 : EK-XTOP DDC 3.2 PWM Elite - Acetal incl. pump
  • Thumbnail 2 : EK-XTOP DDC 3.2 PWM Elite - Acetal incl. pump

EK-XTOP DDC 3.2 PWM Elite - Acetal incl. pump

EKWB EK-XTOP DDC 3.2 PWM Elite - Acetal including Pump, 4 Pin PWM Fan Header, 2x G1/4 Threaded Ports
MORE INFO
MORE INFO

Scan code: LN67640 Manufacturer code: 3831109843154

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Suggested Alternatives

Product Overview EK-XTOP DDC 3.2 PWM Elite - Acetal (incl. pump) is a High-Performance water cooling pump. The core of the unit is the market-proven EK-DDC 3.2 PWM water pump (4-pin PWM FAN header). This unit offers increased hydraulic performance (up to 15 %) compared to original factory top.

PWM control allows for automatic pump speed regulation depending on your CPU temperature. Full performance on demand or whisper quiet operation in idle mode!

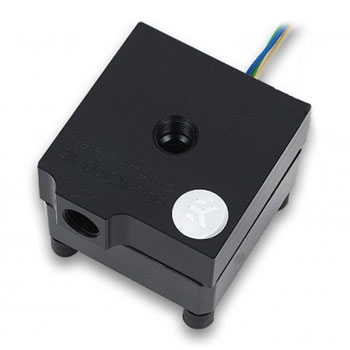

This top features two G1/4 threaded ports of which one is an inlet on top and one is an outlet on the side of the unit. EK recommends EK-ACF series compression fittings.

Despite a remarkably small footprint of 2.4" square, the pump features an astounding 7m of head to provide superior flow rates in today's most complex liquid cooled systems. The pump is also a high reliability, high pressure industrial pump, featuring a 50,000 hour MTBF (5 year lifetime).

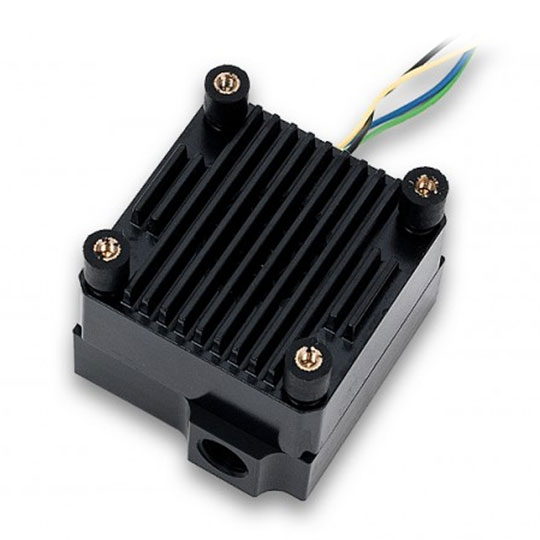

Top is made of quality POM Acetal material. The pump is nested inside the EK-DDC Heatsink Housing. This vastly improves the cooling performance of the motor and electronics and thus prolongs the lifespan of the water pump. Optimal heat transfer is ensured by the use of thermal pad inside the housing. Due to it's metallic construction and finned design EK-DDC Heatsink Housing amplifies the effect of airflow therefore placing the water pump in front of any fan or radiator will dramatically improve the cooling performance.

EK-DDC Heatsink Housing is made from cast ZAMAK (zinc, aluminum, magnesium, copper) alloy and features features glossy black paint finish.

This product also features vibration dampening rubber mounting system which effectively de-couples the water pump from the rest of the computer chassis.

EK-XTOP DDC 3.2 PWM Elite - Acetal can also be upgraded with either EK-UNI Pump Bracket (120mm FAN) - Regular or Vertical which allow installation of the product in any position with 120mm type fan hole pattern Features Technical Specifications:
• Dimensions (W x D x H): 63 x 68 x 55 mm
• Motor: Electronically commuted ball bearing motor
• Rated voltage: 12 V DC
• Power consumption: 18 W
• Maximum head pressure: up to 5.2m
• Maximum flow rate: up to 1000 L/h
• Maximum liquid temperature: 60 °C
• Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
• Power connector: 4-Pin Molex- and 4-Pin PWM FAN connector
• Xylem original model name: DDC-3.25TPPWM4

Enclosed:
• EK-XTOP DDC - Acetal
• EK-DDC 3.2 PWM 12V DC pump motor
• Mounting mechanism
• Installation manual

Made in Slovenia - EU!
Pump motor made in Hungary - EU!
Specifications
Core Specifications
Edition EK-XTOP DDC 3.2 PWM Elite
Product Type Pump
Pump Specifications
Pump Yes
Pump Type
Max. RPM
Max. Hydraulic Performance
PWM Duty Cycle Range
Pump Voltage 12 V
Max. Power Draw 18 W
Reservoir Specifications
Reservoir No
Reservoir Capacity
Fluid Chamber Construction
Combined Specifications
Port Threads G1/4"
Temperature Monitoring
LED Lighting
Controller
Power Connector 1 x 4-pin Molex (AMP Mate-N-Lok)
Power Cable Length
Signal Connector 1 x 4-pin fan header (KK254)
Signal Cable Length
Cabling Features
Max. Coolant Operating Temperature 60 °C
Compatible Metals
  • Aluminium
  • Stainless Steel
Compatible Coolant
Mounting System
Installation Locations
Product Colour
Dimensions 63 x 55 x 68 mm (WxHxD)
Weight
Additional Information
Scan Code LN67640
Model Number 3831109843154
GTIN 3831109843154
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871-472-4747
