EK-XRES 140 Revo D5 PWM Cooling Pump - Black
Scan code: LN67082
Manufacturer code: 3831109843079
End Of Life
EK-XRES 140 Revo D5 PWM Cooling Pump - Black
EKWB EK-XRES 140 Revo D5 PWM High Performance Cooling Pump + Integrated Reservoir, 4Pin Molex + 4Pin PWM Fan Connector
Scan code:
LN67082
Manufacturer code:
3831109843079
This product is no longer available to purchase.
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
Product Overview

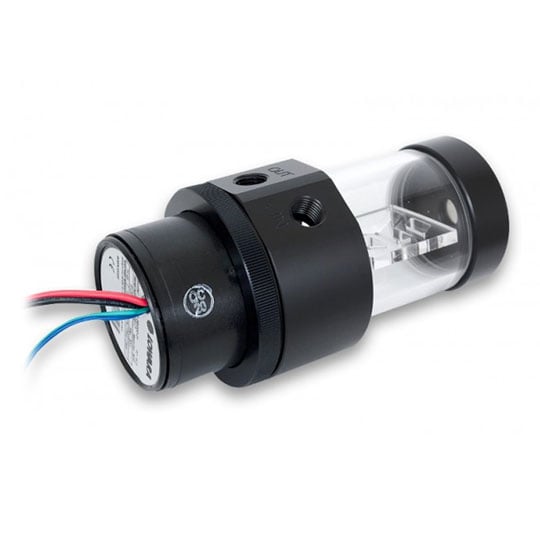

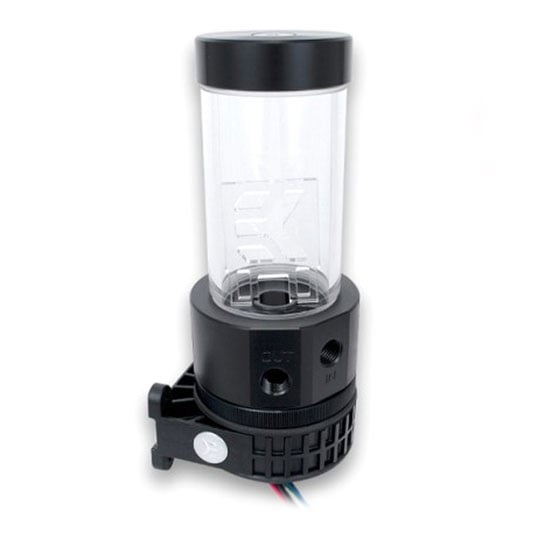

EK-XRES 140 Revo D5 PWM is a High-Performance water cooling pump with integrated reservoir. The core of the unit is the market-proven Laing D5 PWM water pump. This unit offers increased hydraulic performance (up to 15 %) compared to original Laing D5 PWM.
The EK-XRES Revo D5 series features a fully rounded design thus offering greater usability, allowing installation at any angle within 360° of rotation. Special rubber shock absorber is used to de-couple the the main pump body from the mounting clip for silent operation, free of vibration induced noise. Additionaly, horizontal and vertical positioning are supported for easier tube routing possibilities.
EK-XRES 140 Revo D5 series reservoirs comes preinstalled with anti-cyclone insert. Additionaly a PU anti-vortex foam and EK-HD Tube are enclosed.
This water pump / reservoir combo unit can be mounted directly on computer chassis by using enclosed Revo D5 Holder.
Tube is made of quality acrylic material, while the reservoir bottom/pump top is made of quality POM Acetal material.

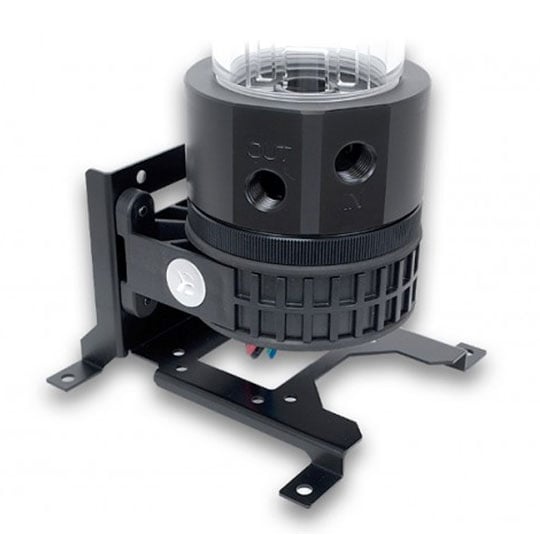

EK-XRES 100 Revo D5 pump can also be upgraded with either EK-UNI Pump Bracket (120mm FAN) - Regular or Vertical which allow installation of the product in any position with 120mm type fan hole pattern. Features This reservoir can be easily upgraded with longer acylic tubes used by EK-RES X3 series reservoirs.
Pump electrical and mechanical properties:
• Motor: Electronically commuted spherical motor
• Rated voltage: 12V DC
• Power consumption: 23W
• Maximum pressure head: 3.9m
• Maximum flow: 1500L/h
• Maximum system temperature: 60°C
• Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
• Power connector: 4-Pin Molex- and 4-Pin PWM FAN connector
Technical specifications:
• Reservoir diameter 60mm
• Reservoir free volume: ~ 205mL
• Overal unit height: 190mm
• Mounting hole pattern: 65x34mm
Enclosed:
• EK-XRES 100 Revo D5 PWM (incl. pump)

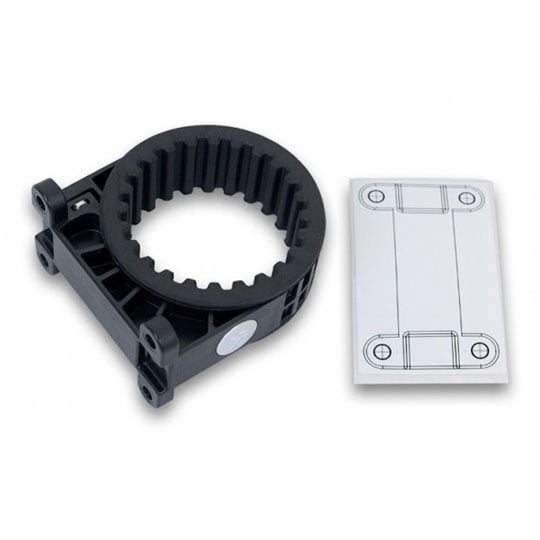

• Mounting clip with rubber insert
• Self-adhesive mounting hole pattern sticker
• Anti-vortex PU foam and 12mm OD plexi-glass tube
• Mounting mechanism (incl. required Allen keys)
• Installation manual
Made in Slovenia - EU!
Pump motor made in Hungary - EU!
The EK-XRES Revo D5 series features a fully rounded design thus offering greater usability, allowing installation at any angle within 360° of rotation. Special rubber shock absorber is used to de-couple the the main pump body from the mounting clip for silent operation, free of vibration induced noise. Additionaly, horizontal and vertical positioning are supported for easier tube routing possibilities.
EK-XRES 140 Revo D5 series reservoirs comes preinstalled with anti-cyclone insert. Additionaly a PU anti-vortex foam and EK-HD Tube are enclosed.
This water pump / reservoir combo unit can be mounted directly on computer chassis by using enclosed Revo D5 Holder.
Tube is made of quality acrylic material, while the reservoir bottom/pump top is made of quality POM Acetal material.
EK-XRES 100 Revo D5 pump can also be upgraded with either EK-UNI Pump Bracket (120mm FAN) - Regular or Vertical which allow installation of the product in any position with 120mm type fan hole pattern. Features This reservoir can be easily upgraded with longer acylic tubes used by EK-RES X3 series reservoirs.
Pump electrical and mechanical properties:
• Motor: Electronically commuted spherical motor
• Rated voltage: 12V DC
• Power consumption: 23W
• Maximum pressure head: 3.9m
• Maximum flow: 1500L/h
• Maximum system temperature: 60°C
• Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
• Power connector: 4-Pin Molex- and 4-Pin PWM FAN connector
Technical specifications:
• Reservoir diameter 60mm
• Reservoir free volume: ~ 205mL
• Overal unit height: 190mm
• Mounting hole pattern: 65x34mm
Enclosed:
• EK-XRES 100 Revo D5 PWM (incl. pump)
• Mounting clip with rubber insert
• Self-adhesive mounting hole pattern sticker
• Anti-vortex PU foam and 12mm OD plexi-glass tube
• Mounting mechanism (incl. required Allen keys)
• Installation manual
Made in Slovenia - EU!
Pump motor made in Hungary - EU!
