Scan code: LN65754 Manufacturer code: 3831109843017

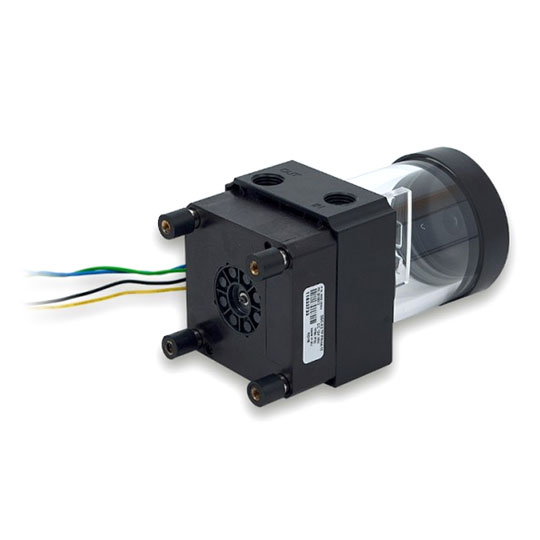

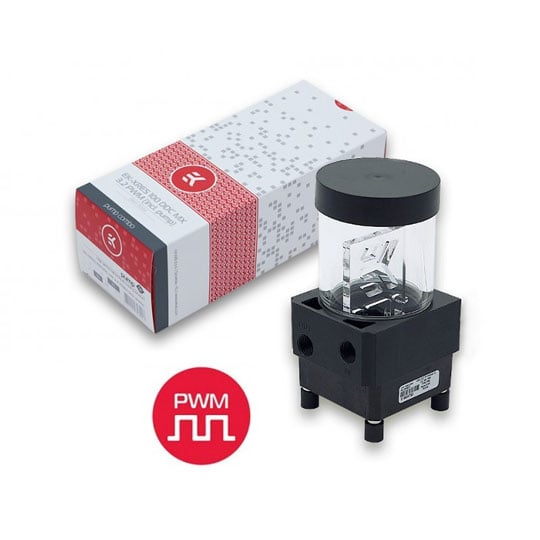

EKWB EK-XRES 100 DDC 3.2 PWM MX Including Pump

EKWB EK-XRES 100 DDC MX 3.2 PWM Pump & Reservoir, 60mm Reservoir Diameter, 100mm height (121mm inc pump)

Thumbnail 1 : EKWB EK-XRES 100 DDC 3.2 PWM MX Including Pump Thumbnail 2 : EKWB EK-XRES 100 DDC 3.2 PWM MX Including Pump
Scan code: LN65754 Manufacturer code: 3831109843017
£93.98Item due on 13 December 2019
Pre order
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview EK-XRES 100 DDC 3.2 PWM MX (incl. pump) is a reduced cost variant of EK-XRES 100 DDC 3.2 PWM (incl. pump) a High-Performance water cooling pump. It has been designed to lower the production costs yet still offer premium hydraulic performance at the best price.

The core of the unit is the market-proven EK-DDC 3.2 PWM water pump (4-pin PWM FAN header). This unit offers increased hydraulic performance (up to 15 %) compared to original factory top.

PWM control allows for automatic pump speed regulation depending on your CPU temperature. Full performance on demand or whisper quiet operation in idle mode!

EK-XRES DDC MX series reservoirs comes preinstalled with anti-cyclone insert. Additionaly a PU anti-vortex foam is enclosed.

The main body features two G1/4 threaded ports of which one is an inlet (in the reservoir) and one is an outlet (from the pump). EK recommends the use of EK-ACF series compression fittings.

Tube is made of quality acrylic material, while the rest of the pump/reservoir body is made from injection moulded quality ABS material.

This reservoir can be easily upgraded with longer tubes used by EK-RES X3 series reservoirs. Replacement tubes can be purchased separately via EK Webshop. Features Technical data:
• Reservoir Diameter: 60mm
• Overal Height: 100mm (121mm incl. pump)
• Mounting hole pattern: 50x50mm
• Threads: G1/4

Enclosed:
• pump/reservoir combo unit (incl. pump)
• mounting material
• allen key
• anti-vortex polyether black foam
• installation manual

Made in Slovenia - EU!
Pump made in Hungary - EU!
Specifications
Core Specifications
Edition EK-XRES 100 DDC MX 3.2 PWM
Product Type Pump/Reservoir Combi
Pump Specifications
Pump Yes
Pump Type
Max. RPM
Max. Hydraulic Performance
PWM Duty Cycle Range
Pump Voltage
Max. Power Draw
Reservoir Specifications
Reservoir No
Reservoir Capacity
Fluid Chamber Construction
Combined Specifications
Port Threads G1/4"
Temperature Monitoring
LED Lighting
Controller
Power Connector
Power Cable Length
Signal Connector
Signal Cable Length
Cabling Features
Max. Coolant Operating Temperature
Compatible Metals
Compatible Coolant
Mounting System
Installation Locations
Product Colour Black
Dimensions
Weight
Additional Information
Scan Code LN65754
Model Number 3831109843017
GTIN 3831109843017
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871-472-4747
Loading Please Wait

Please wait . . .

Reviews
Questions & Answers

Do the pumps come with mounting?

Do they come with screws etc? I brought the EKWB vertical bracket and it did not ship with any fittings.
Asked by: timmygrant08
Hi, Yes, you should be able to mount this. Below is what you will receive with this product: Technical data: • Reservoir Diameter: 60mm • Overal Height: 100mm (121mm incl. pump) • Mounting hole pattern: 50x50mm • Threads: G1/4 Enclosed: • pump/reservoir combo unit (incl. pump) • mounting material • allen key • anti-vortex polyether black foam • installation manual Regards,
Answered by: LukeW
Date published: 2019-01-03

Can i change the reservoir size?

Can i unscrew the reservoir and replace it with a EK-RES X3 - TUBE 400 (Outer) - 354mm to make it larger?
Asked by: dalessorrell
Hi, unfortunately this will not be compatible but the tubing may be used to upgrade or replace the tube on any of the following EK products: - EK-RES X3 - EK-DCP 4.0 X-RES - EK-DDC X-RES CSQ - EK-D5 X-RES CSQ - EK-D5 Dual TOP G1/4 CSQ in conjuction with EK-D5 X-RES LINK CSQ Kind regards,
Answered by: LukeW
Date published: 2019-03-29
