End Of Life Sale

EKWB Predator v1.1 240mm Premium AIO CPU Water Cooler for Intel

EKWB EK-XLC Predator 240 Rev1.1 All-In-One Hydro Cooler, 240mm Radiator, 2x 120mm Vardar Fans, for Intel CPUs

EK
Scan code: LN66681 Manufacturer code: 3831109863343 Request call
End Of Life
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End

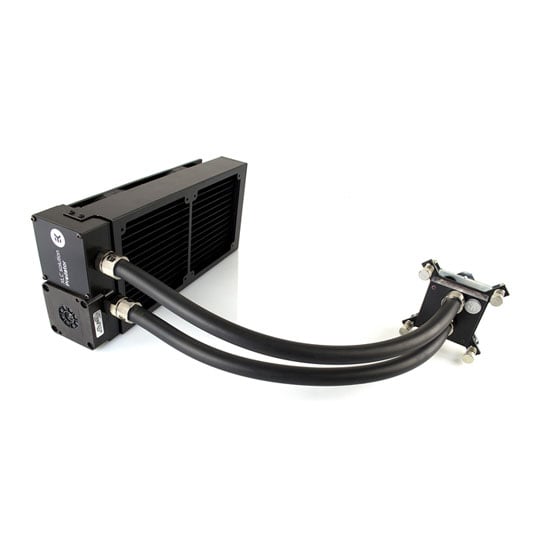

Product Overview EK-XLC Predator 240 is next-generation, premium grade all-in-one (AIO) CPU liquid cooling unit. You will get the best of what the market can offer in a compact, expandable, out-of-the-box liquid cooling solution.

EK-XLC Predator 240 is next-generation, premium grade pre-filled and pre-assembled all-in-one (AIO) CPU liquid cooling unit.

The unit provides extreme cooling performance and exceptional build quality unseen in the AIO (all-in-one) segment so far. The unit utilizes top-tier EK-Vardar high-static pressure fans and market-proven Laing DDC liquid cooling pump. All-around PWM control provides minimal noise profile and performance on demand.

Predator utilizes industry standard G1/4 threaded ports and 15,9/9,5mm (5/8" / 3/8") Zero Maintenance rubber tubing (EK-ZMT). It is fully expandable and customizable with all custom-loop liquid cooling gear available in our portfolio.

If you are more extreme user you can take the whole unit apart and rebuild it as you wish. Process of draining- and re-filling of the unit is easy and is thoroughly documented in the enclosed user guide.

Please note: This AIO Cooler is Rev1.1 Without QDC (Quick Disconnects). Features • Hovercore is a new, revolutionary design of radiator de-couplering that effectively prevents transfer of pump induced vibrations from the unit to the computer chassis itself, thus resulting in vibration-free and silent operation.
• Supremacy MX CPU water block, top performer in Enthusiast segment, is specifically designed for Intel CPUs and offers great hydraulic and thermal performance. Carefully machined copper base is made from purest copper available and is further polished to absolute mirror finish. This alone greatly improves the cooling performance of the Predator.
• CoolStream PE 240mm radiator, has a full copper core superior to aluminum alternatives in terms of heat dissipation. In conjunction with EK-Vardar fans the result is increased performance across an entire fan operational range, thus delivering results both at low- and high airflow operation.
• Vardar Fans – two on Predator 240 – are high-static pressure fans developed in-house specifically for liquid cooling systems. With low noise profile and PWM technology built in, the system always controls the RPM and keeps the fans silent while maintaining excellent cooling performance.
• DDC Pump is a powerful 6W liquid cooling pump providing 2-3x higher flow rate compared to other AIOs on the market. It’s also PWM controlled, allowing for automatic pump speed regulation depending on your CPU temperature. Full performance on demand or whisper quiet operation in idle mode!
• Integrated Fan Splitter Hub reduces cable clutter and keeps the unit aesthetically clean. Predator pump and fans plug into the unit itself with only one PWM cable going into CPU Fan socket, while a single SATA molex cable powers the complete unit.

Technical Specifications:
• Dimensions: 295 x 133 x 68mm (L x W x H)
• Fan type: EK-Vardar F4-120ER Predator Edition (550-2200rpm)
• Tube length: ~400mm (15.75in)
• Fitting type: EK-ACF Fitting 10/16mm
• Coolant type: EK-Ekoolant EVO Clear
• Pump type: Laing DDC3.1 6W
• Total liquid capacity: ~290mL

Includes:
• EK-XLC Predator 240
• EK-TIM Ectotherm (1g syringe)
• Main Power and PWM signal cable
• CPU Mounting mechanism
• Installation manual (ENG)
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
RTB Period:
12 months
Manufacturer Contact Details
Reviews
Rated 2.3 out of 5 by 3 reviewers.
Rated 1 out of 5 by Pwm pump noisy The built quality is second to none however the pump wiĺl only work when header is at 100 percent. Very noisy do replaced this AIO with a noctua heatsink. 10 April 2016
Rated 1 out of 5 by Pump failure on several units.... I never usually write reviews on a product but feel I should in this instance. I have had 2 units and both have had pump failures (rev1.1). I have been in direct contact with EK who advised me to plug the pump directly in to the motherboard. This initially worked, but two days later I had the same problem. EK then suggested topping the unit up with distilled water as there may have been air trapped in the unit. This didn't resolve the problem. Unfortunately I have now requested a refund. The Predator 240 looks great and I'm genuinely sad to be going back to an NZXT Kraken. However seeing your CPU hit nearly 100C on several occasions just isn't worth going through the same problems with a third unit. I expected more from a water cooling specialist. I do have to say though that my experience with EK customer service has been generally positive. 08 March 2016
Rated 5 out of 5 by excellent please note when you get this cooler it looks and works fantastic but just to let you know check the fittings especially on the water block as when I installed mine great next morning I was just about to boot up the computer there was water dripping very slowly out of one of the fittings dropped on my graphic card thank god it had a cover over but all in all nipped it up fine cooling will knock you out this is the mother of all coolers beleave me 24 September 2015
  • 2016-05-20 T12:53:06.580-05:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_3, tr_3
  • loc_en_US, sid_66681, prod, sort_default
1-3 of 3
Questions & Answers
(4 Questions : 3 Answers)

Product Q&A

Ask your questions. Share your answers.



« Back


Has staff answer
Has expert answer

2 answers

Cosmos 2 friendly?

Anyone know if this will mount in Cosmos 2 case?

Wanted to ideally top mount this but the fans cant be separated from the radiator for mounting due the shoulder the pump creates.

EK were supposed to be releasing a case compatibility list before launch but that hasn't happend.

Best regards
Gender: Male
7 months ago
Customer avatar
by
Leeds, West Yorkshire, UK
Read all my Q&A

Please wait while more information about sarge2sav is loaded.
Additional information about sarge2sav could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
the depth of the radiator with the fans on which is right you carnt take them off due to the sroud you will not get it in from top of the mother board to top of the case is not that deep on a corsair 110i you can get push pull but I don't really think cosmos 2 no but if ya buy one and it doesn't fit scan will sort it out for ya but its a lot of messing around but its a excellent cooler
Age: 45 to 54
Gender: Male
7 months ago
Customer avatar
by
Wakefield, West Yorkshire, UK
Read all my Q&A

Please wait while more information about kenny is loaded.
Additional information about kenny could not be loaded.
+3points
3out of 3found this answer helpful.
Was this helpful?helpful3unhelpful0

Answer:
Hello,

Yes this will support the cosmos 2 case

Thanks,
7 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about LizN is loaded.
Additional information about LizN could not be loaded.
-2points
0out of 2found this answer helpful.
Was this helpful?helpful0unhelpful2
Has staff answer
Has expert answer

1 answer

Compatability

Hi i have the Asus M4A89GTD PRO/USB3 and just wanted to see if i would need to the screw set? also will it fit in my CMaster CM690 case?
5 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about muzzy00uk is loaded.
Additional information about muzzy00uk could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
You will need to check your motherboard to see if the screws go all the way through the board, if not then you would need to get the replacement screw set for mounting. Also, the cooler will fit in the CMaster CM690, the top of the case is most suitable for this radiator.
5 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about LizN is loaded.
Additional information about LizN could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
Most expensive AIO come with shortest warranty
Age: 25 to 34
Gender: Male
3 months, 3 weeks ago
Customer avatar
by
Gravesend, Kent, UK
Read all my Q&A

Please wait while more information about Pole is loaded.
Additional information about Pole could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0
Please could you tell me if all your stock is revision 1,1 with the 0116 build date.
I intend to buy one if it is?

Regards,
Steve Blake
Age: 55 to 64
Gender: Male
3 months ago
Customer avatar
by
Yeovil, Somerset, UK
Read all my Q&A

Please wait while more information about 1234St is loaded.
Additional information about 1234St could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0
