EK-Torque HDC-16 Satin Titanium Compression Fitting
EK-Torque HDC-16 16mm G1/4" Hard Tube Compression Fitting, Satin Titanium, Supported 16mm OD Tube
Email me when the availability or price changes
Finance this product
- Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
EK-Quantum Torque HDC 16

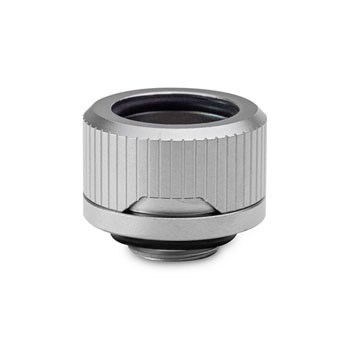

EK-Quantum Torque HDC 16 fittings are EK's new minimalistic 16mm hard-tube compression fittings designed for use with solid tubing such as Acrylic and PETG. With a non-intrusive, yet striking look, and with NO added branding at all. They can be complemented by interchangeable aesthetic colour rings, and are an ideal choice for anyone and a perfect match with EK-Quantum series products.
The locking ring prevents solid tube to be pulled out of the fitting by compressing the rubber gasket underneath the ring. The grooves on the outside allow for easier hand tightening. The compression ring has cut-outs in EK Quantum signature shape allowing for the coloured aesthetic ring to be shown. The coloured rings are available in many colours and are screwed onto the fitting before the compression locking ring. The aesthetic rings are sold separately.
The fitting barb and the compression rings are covered with a unique, high-quality satin silver finish. Both are made of CNC machined brass and the seal is made quality rubber O-rings.

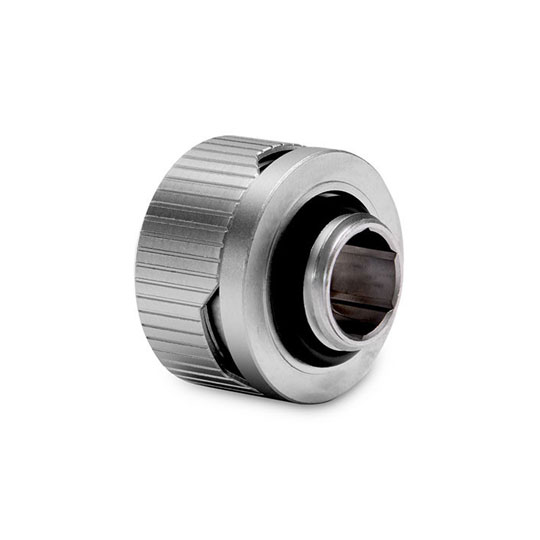

The base fitting surface is smooth and has no adequate gripping surface, but the inside of the barb is socketed with a 9mm hex Allen key pattern. It's highly recommended to use an Allen Key 9mm (purchased separately) to prevent skin damage to the fingertips while installing the fitting. Please, be advised not to use excessive force when attaching fitting barbs using Allen Key 9mm in order to prevent damage to other liquid cooling products!
Features
Technical data:
• Material: Brass.
• Finish: Satin Silver.
• Thread: G1/4" BSP; 4.5mm male thread length.
• Supported tube: 16mm OD.
• The outer diameter of a fitting: 24mm.
• Installed height: 15mm.
• Compatible solid tubing: Acrylic, PETG, Copper, Brass, Stainless Steel.
