EK-Quantum Velocity² D-RGB AM5 White Edition AMD CPU Block

EK-Quantum Velocity² D-RGB AM5 White Edition, AMD AM5, G1/4, 17 Addressable RGBs

Thumbnail 1 : EK-Quantum Velocity² D-RGB AM5 White Edition AMD CPU Block Thumbnail 2 : EK-Quantum Velocity² D-RGB AM5 White Edition AMD CPU Block Thumbnail 3 : EK-Quantum Velocity² D-RGB AM5 White Edition AMD CPU Block
Scan code: LN139759 Manufacturer code: 3831109906644
Order now and get it tomorrow, Fri 19th Apr
£119.99
Get it Tomorrow, 19 AprIn stock
From £10.87 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £10.87
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £119.99
Total inc. interest: £130.45
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 19th Apr to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together
Product Overview

EK-Quantum Velocity² D-RGB - AM5 White Edition

This socket-specific EK-Quantum Velocity² water block is engineered specifically for AMD® AM5 Socket and Ryzen 7000-series CPUs. It is built upon an award-winning, market-recognised platform that has received the IF Design award, European Hardware Award, CES Innovation award, and several other performance review awards as well. With a revolutionary "clean-front" design, with no visible mounting screws, Velocity² water blocks are en route to outshining their predecessor and taking over the market lead. EK-Quantum Velocity² D-RGB - AM5 White Edition is a high-performance premium quality white-themed CPU water block for the AMD AM5 socket platform. It features a next-generation cooling engine that is socket-specific, tailored to the IHS and die layout of Ryzen 7000-series CPUs. This CPU water block is EK-Matrix7 compliant and is mounted via the patent-pending EK Exact Mount system.


Socket-Specific Cooling Engine

Embedded in the Velocity² is a socket-specific low hydraulic flow restriction and high-performance cooling engine, which is achieved by a combination of mounting pressure and cold plate geometry tailored for the IHS and die layout of the AMD AM5 socket. The lathe-turned cold plate is made with precision to cover the IHS effectively and put optimal pressure on the die area. Flow is also being directed into areas that need it most with the help of an asymmetric jet plate cutout. The Velocity² series water blocks cover the entirety of the socket while conforming to socket guidelines about mounting pressure and socket keep-out zones.


EK-ExactMount

Because of the integrated, sturdy stock backplate arriving with AM5 motherboards, the patent-pending EK-ExactMount mounting system was re-engineered for an even simpler installation process. The end result is an even easier-to-use and “invisible” mounting mechanism since the entire mounting system is inside the water block, and now it is a true single-piece product. The backplate is factory-mounted on the motherboard, and the spring-loaded Torx screws are integrated into the water block and are screwed by counter-clockwise rotation into the stock backplate of the motherboard. The integrated mounting screws are engineered with a hard-stop design, so once screws reach the end of the thread, the block is perfectly mounted and tensioned. This removes the risks of over-torqueing the water block and potentially damaging your motherboard and/or CPU.


Water Block Material and Manufacturing

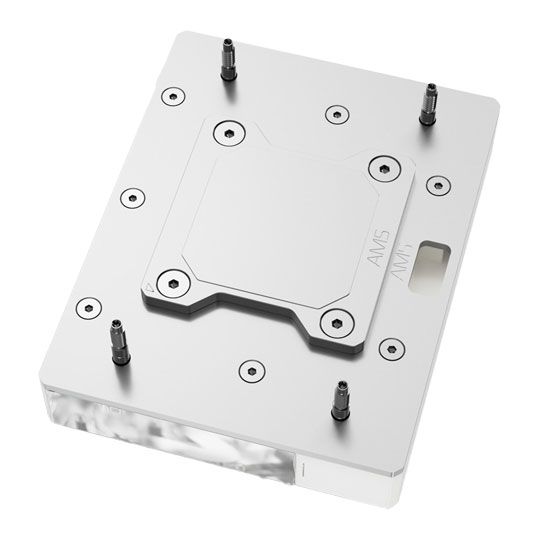

The coldplate is manufactured out of the highest-grade 99.99% pure electrolytic copper, machined with precision for the best possible contact and heat transfer which is further nickel-plated. This version of the water block features a nickel-plated cold plate with a CNC machined cast Acrylic top piece.


EK-Matrix7 Compliant

The EK-Quantum Velocity² is an EK-Matrix7 compatible product. The EK-Matrix7 is a product raster that is bound to set a new standard. EK is adding a new dimension to PC liquid cooling, where the height of products and the distance between ports are managed by increments of 7mm. This improves product alignment and reduces the time spent planning the loop and bending tubes. Through the meticulous planning of our products, building a liquid-cooled PC becomes easy and fun, just like toy bricks.


EK-Quantum Velocity² D-RGB LED Lighting

This product is compatible with all popular addressable RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB header. A total of 17 addressable RGB LEDs are hidden under the stick-out piece, which acts as a diffuser.

Features
Technical specifications:
- D-RGB cable length: 50cm
- D-RGB connector: 3-pin 5V digital LED header (Pinout: +5V | Digital | Blocked | Ground)

CPU socket compatibility:
- AMD AM5

Enclosed:
- EK-Quantum Velocity² CPU water block
- Torx T7 key
- Thermal grease Thermal Grizzly Hydronaut (1g)
Specifications
Type CPU Water Block
Edition Quantum Velocity² D-RGB AM5 White Edition
Socket Compatibility AM5
Fluid Chamber/Top Material CNC Machined Acrylic & Acetal
Cold Plate/Base Material Nickel-Plated Copper
Cold Plate/Base Cooling Fins
Port Threads G1/4"
LED Lighting 17x Addressable RGB LEDs
Product Colour White
Controller
Max. Coolant Operating Temperature
Compatible Cooling Loop Metals
  • Brass
  • Copper
  • Nickel-Plated Brass
  • Nickel-Plated Copper
Compatible Coolants
Included TIM (Thermal Interface Material) Thermal Grizzly Hydronaut (Small Tube)
Dimensions
Weight
Note
Additional Information
Scan Code LN139759
Model Number 3831109906644
GTIN 3831109906644
