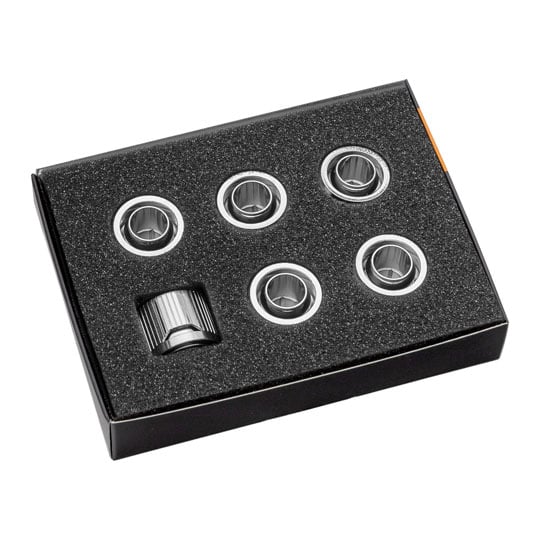

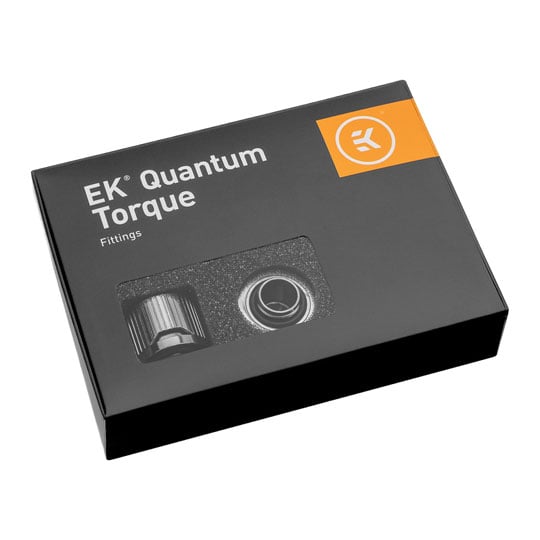

EK-Quantum Torque STC 12/16 Compression Fitting 6-Pack - Nickel
EK-Quantum Torque STC 12/16 6-Pack Soft Tube Compression Fitting, Nickel, G1/4" BSPP, For 12mm ID / 16 OD Tube
Email me when the availability or price changes
Finance this product
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
EK-Torque STC 12-16 6-Pack
EK-Quantum Torque 6-Pack STC 12/16 is a fitting multipack containing six EK-Torque STC fittings. These are EK's premium 12/16mm (ID/OD) soft-tube compression fittings designed for use with various flexible soft tubing types such as PVC, EPDM, Norprene, silicone or any other type of compatible flexible tube. With a non-intrusive, yet striking look, and with NO added branding at all. They can be complemented by interchangeable aesthetic colour rings, and are an ideal choice for anyone and a perfect match with EK-Quantum series products.
The locking ring is compressing the tubing wall underneath the ring, and this prevents the flexible tube from being pulled off the barb of the fitting. The grooves on the outside allow for easier hand tightening. The compression ring has cut-outs in the EK Quantum signature shape allowing for the coloured aesthetic ring to be shown. The coloured rings are available in many colours and are screwed onto the fitting before the compression locking ring. The aesthetic rings are sold separately.
The fitting barb and the compression rings are covered with a unique, high-quality nickel finish. Both are made of CNC machined brass and the seal is made quality rubber O-rings.
The base fitting surface is smooth and has no adequate gripping surface, but the inside of the barb is socketed with an 8mm hex (Allen) key pattern. Please, be advised not to use excessive force when attaching fitting barbs using Allen Key 8mm in order to prevent damage to other liquid cooling products!
PLEASE NOTE:
• The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage to your nickel-plated fittings! EK is offering a selection of such products in the coolants section.
• Do not use excessive force when attaching fitting barbs using Allen Key 9mm in order to prevent damage!
• This product should NOT be installed with any aluminium Fluid Gaming parts!
• Satin Titanium Quantum Torque series fittings are intentionally not painted on the inside to reduce the level of possible pollutants in the loop.
• Coloured aesthetic rings are sold separately.
Features
• Material: Brass.
• Finish: Nickel.
• Thread: G1/4" BSPP; 4.5mm male thread length.
• Supported tube: 12/16mm (ID/OD).
• The outer diameter of a fitting: 23mm.
• Installed height: 19mm.
• Compatible soft tubing: PVC, EPDM, Neoprene, silicone.
