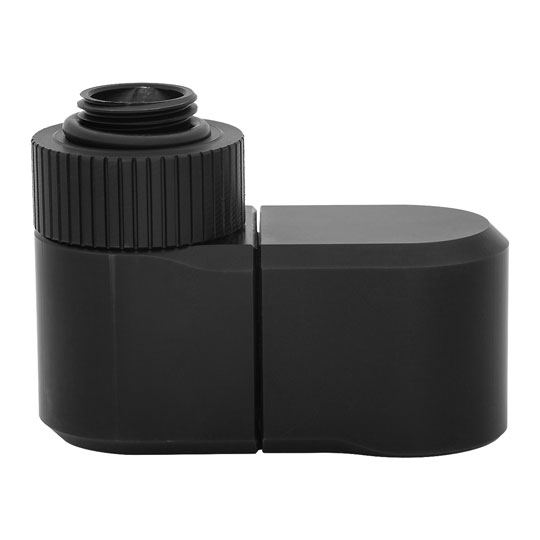

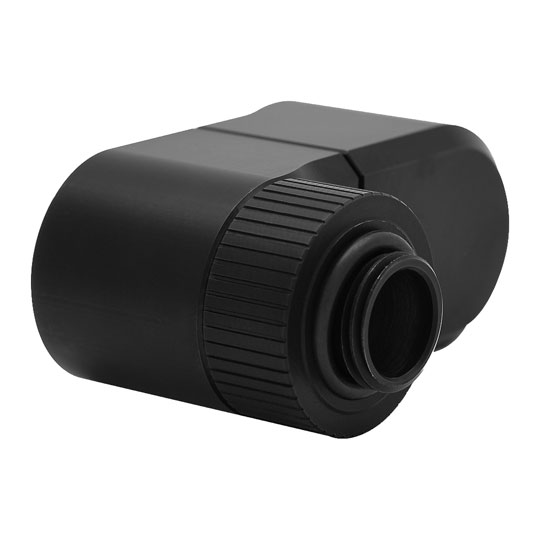

EK-Quantum Torque Rotary Offset 28 Adapter - Black
EK Quantum Torque Rotary Offset 28 Adapter, Black, Male / Female, G1/4" Revolvable Adapter Fitting, CNC Machined Brass
Email me when the availability or price changes
Finance this product
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
EK-Quantum Torque Double Rotary Offset 28
This Double Rotary Offset is a premium revolvable male+female threaded 28mm offset adapter fitting with two separate joints, each with its own rotating mechanism. It is commonly used to offset two parallel or perpendicular tubes and is best used on GPU and CPU water blocks to align the tube directly with the distribution plate port. Aesthetically, it perfectly matches the fittings and adapters from the EK-Quantum Torque series. These fittings effectively replace the following three products – the rotaries angled 45 and 90, and a 7 MF extender.
Made from CNC machined brass with a satin black finish. Sealed with quality NBR O-rings. Unlike EK’s previous Rotary Offsets for 7 and 14mm, these fittings consist of two pieces and feature a rotating element in the middle as well. This enables them to not only offset the port but also change the angle. There are tactile clicks at every 45–degree turn to easily position the fitting the way your build requires, but the offset can also be stopped and used at any angle.
It can be tightened down from the top using a hex key for added convenience or in case the regular knurling is not accessible.
The fittings are quite useful for perfectly aligning hard tubing to a distro plate when you want to achieve parallel tube runs from the GPU or the CPU.
Features
• Threading: 2 x G1/4" (Male-Female).
• Thread length: 4.5mm.
• Material: Brass.
• Installed height: 33mm.
• Finish: Black.
• Offset: 28mm.
• Outer Diameter: 23mm.
