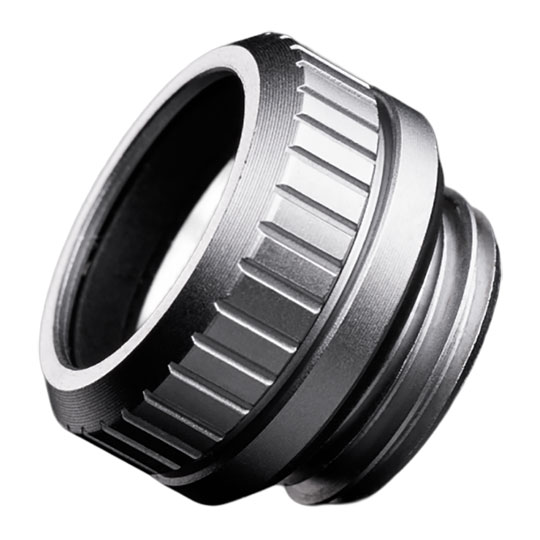

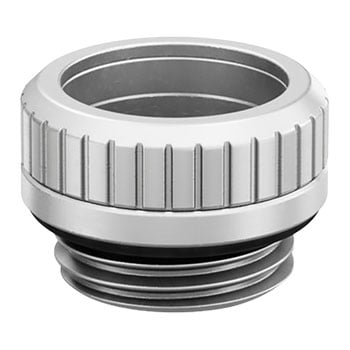

EK-Quantum Torque Micro HDC 12 Satin Titanium Fitting
EK-Quantum Torque Micro HDC 12 Fitting, Satin Titanium, 12mm OD Supported Tubing, G1/4" BSP Male, CNC-Machined Brass
Email me when the availability or price changes
Finance this product
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
EK-Quantum Torque Micro HDC 12 - Satin Titanium
The EK-Quantum Torque Micro HDC 12 - Satin Titanium is a premium hard tubing compression fitting designed for 12mm outer diameter solid tubing, delivering both precision engineering and a compact form factor for modern custom liquid cooling builds. Featuring a significantly reduced footprint with an installed height of just 11.5mm, this Micro fitting is ideal for tight spaces and small form factor systems where standard fittings may be too bulky. Constructed from CNC-machined brass with a sleek satin titanium finish, it offers exceptional durability and a refined aesthetic. The integrated EPDM rubber gasket ensures a secure seal and firm tube grip, while the internal hex design allows for safe and precise installation using an Allen key. Fully compatible with a wide range of rigid tubing materials including acrylic, PETG, and metal tubing, this fitting provides a reliable and space-efficient solution for high-performance water cooling loops.
Installation and Usage Considerations
• Ensure compatibility with 12mm outer diameter rigid tubing before installation.
• Use an appropriate Allen key tool, such as an EK multi Allen key, to avoid damaging the fitting or surrounding components.
• Do not overtighten during installation to preserve the integrity of the gasket and threads.
• Always check fittings and tubing alignment to ensure a proper seal and prevent leaks.
Features
• Compact Micro design with reduced footprint for tight and SFF builds
• Designed for 12mm outer diameter hard tubing
• Ultra-low installed height of 11.5mm for improved clearance
• CNC-machined brass construction for durability and strength
• Premium satin titanium finish for a clean, high-end aesthetic
• Secure compression seal with high-quality EPDM gasket
• Internal hex design for safe and precise installation
• Compatible with acrylic, PETG, copper, brass, stainless steel, and glass tubing
• Standard G1/4" BSP thread for broad compatibility
• Fully compatible with EK Water Blocks liquid cooling systems
