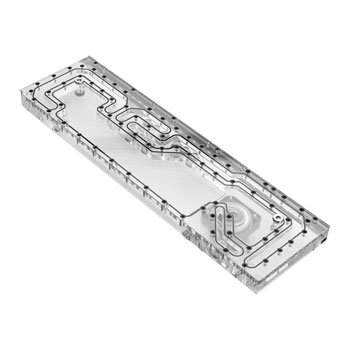

EK-Quantum Reflection² V3000 Plus D5 D-RGB Plexi Reservoir Body

EK-Quantum Reflection² V3000 Plus D5 PWM D-RGB - Plexi

Crafted to be elegantly mounted on the side next to your motherboard, the EK-Quantum Reflection² V3000 Plus D5 PWM D-RGB – Plexi is a custom water-cooling reservoir, routing, and pump solution. This distribution plate is tailored explicitly for the LIAN LI V3000 Plus chassis. Equipped with the latest 3rd generation SATA-powered D5 pump, it eliminates the need for additional 4-pin Molex cables, following the latest PC industry trend. As part of the Reflection² series, these distribution plates are EK-Matrix7 compliant, ensuring seamless compatibility and ease of installation.

This cutting-edge design includes a pump, reservoir, straightforward mounting mechanism, and multiple industry standard G1/4" threaded inlets and outlets. We strategically positioned these inlets and outlets to align perfectly with other EK products, reducing the bends required when setting up your loop.

Radiators and GPU Compatibility

With the installed distro plate, the maximum radiator size is the following:

• Top: EK-Quantum Surface P480
• Bottom: EK-Quantum Surface P480
• Side: EK-Quantum Surface S480

EK-Matrix7 Support

Matrix7 standardizes the products’ dimensions, including the port position and spacing, making liquid cooling loop assembly more intuitive and easier than ever. EK-Quantum Reflection² distro-plates follow the EK-Matrix7 standard, enabling them to seamlessly integrate with the Vector² GPU water blocks and active backplates and Quantum Surface radiators. This means you’ll spend less time planning the loop and bending tubes, while the end result will still be an epic build.

PWM Controlled D5 Pump

This water distribution plate comes with a powerful yet silent PWM-controlled D5 pump. The goal was to make a product with enough power to offer excellent reliability and outstanding performance with multiple blocks and radiators while keeping the noise down to a minimum. The D5 pump has been updated with the latest G3 (Generation 3) variant. It comes with a SATA power connector, following the latest PC industry trend of a decreased use of 4-pin Molex cables.

For the Lian Li V3000 Full Tower

Crafted to be elegantly mounted on the case side, next to your motherboard, the EK-Quantum Reflection² V3000 Plus D5 PWM D-RGB seamlessly integrates with the LIAN LI V3000 Plus chassis.

Motherboard Controlled ARGB Strip

A sleek addressable D-RGB LED strip runs the entire length of the unit, while an anodized black aluminum cover conceals any unwanted LED hotspots. The built-in addressable LED strip connects effortlessly to your motherboard's 5V header or a dedicated D-RGB controller. It also offers compatibility with popular software such as MSI MYSTIC LIGHT SYNC, ASROCK POLYCHROME SYNC, ASUS AURA SYNC, and GIGABYTE RGB FUSION 2, ensuring a cohesive and synchronized lighting effect. With a total of 32 LEDs, this product guarantees stunning illumination.

• Side-mounted acrylic distro plate built specifically for the Lian Li V3000 Plus, combining reservoir, fixed routing, and an integrated D5 pump in a single chassis-matched assembly.
• Part of the EK-Quantum Reflection² lineup, with a full-height Plexi front that exposes the entire coolant path next to the motherboard tray.
• Equipped with a 3rd-generation PWM-controlled D5 pump using SATA power, removing the need for legacy 4-pin Molex cabling.
• Pump output is tuned for loops running multiple blocks and large-format radiators while maintaining low acoustic output.
• EK-Matrix7 compliant port layout standardises spacing and alignment to simplify hard-tube routing and loop planning.
• Features multiple industry-standard G1/4" threaded inlets and outlets positioned to reduce required tube bends when paired with other EK components.
• Supports up to three radiators with the distro plate installed: top EK-Quantum Surface P480, bottom EK-Quantum Surface P480, and side EK-Quantum Surface S480.
• Designed to mount cleanly along the case side panel, adjacent to the motherboard, matching the internal geometry of the V3000 Plus.
• Integrated addressable D-RGB strip runs the full length of the unit, paired with an anodized black aluminum cover to mask LED hotspots.
• Lighting connects via a standard 5V addressable header or controller and uses 32 LEDs for uniform illumination across the waterway.
• Compatible with common motherboard RGB ecosystems, enabling synchronized lighting control through supported software suites.
• The box includes the complete distro plate assembly along with mounting hardware, push-in adapters, plugs with covers, and a full set of Allen keys for installation and loop setup.

1) Compatible with the Lian Li V3000 case ONLY.
2) The D5 pump is water lubricated and it must not be run dry; otherwise, permanent bearing damage can occur.
3) The Quantum Reflection² distribution plates are designed around Quantum Torque fittings and EK-Quantum Surface radiators.
4) The aluminum oxide mentioned in the materials specification for the D5 pump is not exposed to water and is perfectly safe to run in copper/nickel loops.
