EK-Quantum Reflection² PC-O11D EVO D5 D-RGB Plexi Reservoir Body

EK-Quantum Reflection² PC-O11D EVO D5 PWM D-RGB - Plexi

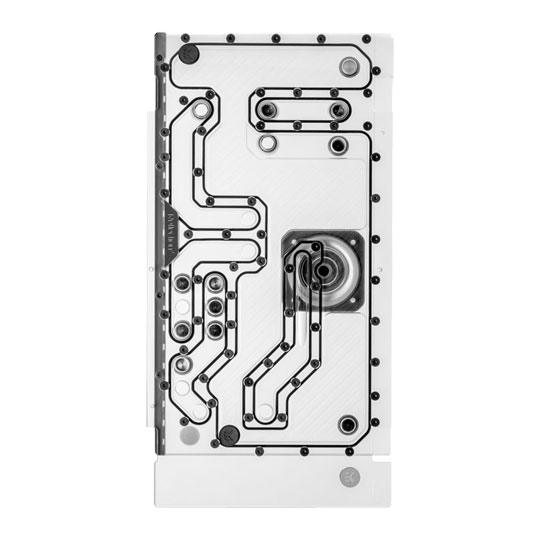

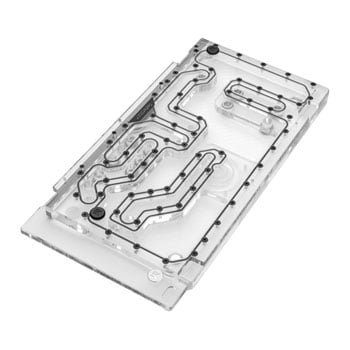

The EK-Quantum Reflection² PC-O11D EVO D5 PWM D-RGB is a custom water cooling reservoir, routing, and pump solution that seamlessly fits into the front of the case. This waterway is also equipped with 4 innovative push-in ports that come with female G1/4" threaded adapters. The idea is that a user can assemble the whole radiator + fittings and use these push-in adapters to simply slide it into the distro plate. This waterway is even compatible with the reverse setup, where the motherboard and components are flipped to the other side.

Radiators and GPU Compatibility

With the installed distro plate, the maximum radiator size is the following:

• Top: EK-Quantum Surface P360
• Bottom: EK-Quantum Surface P360
• Side: EK-Quantum Surface P280

This distro plate is also compatible with vertical GPU brackets. In this case, the bottom radiator is limited to EK-Quantum Surface S360. It is also recommended that users opt for a vertical mount in case of more narrow GPUs like FE or reference models. Wide models like ROG Strix, EVGA FTW3, and MSI Trio might cause issues with tube routing as they reach the CPU block ports due to their width.

EK-Matrix7 Support

Matrix7 standardizes the product's dimensions, including the port position and spacing, making liquid cooling loop assembly more intuitive and easier than ever. EK-Quantum Reflection² distro-plates follow the EK-Matrix7 standard, enabling them to seamlessly integrate with the Vector² GPU water blocks and active backplates and Quantum Surface radiators. This means you'll spend less time planning the loop and bending tubes, while the end result will still be an epic build.

PWM Controlled D5 Pump

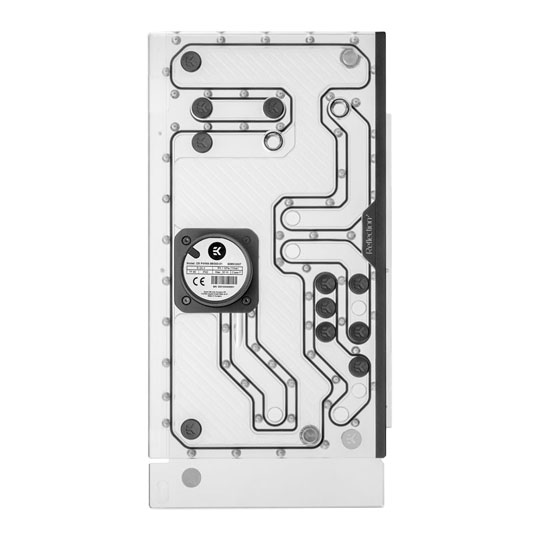

This water distribution plate comes with a very powerful yet silent, PWM-controlled genuine D5 pump. The goal was to make a product that has enough power to offer great reliability and outstanding performance with multiple blocks and radiators while keeping the noise level down to a minimum. It is equipped with 4 innovative push-in ports that come with female G1/4" threaded adapters that significantly ease the process of connecting a radiator with fittings and this distribution plate.

Built for CPU, GPU and up to Three Radiators

Designed to offer unique aesthetics and ease of use, this advanced all-in-one waterway solution also includes a pump, reservoir, simple mounting mechanism, and multiple industry-standard G1/4" threaded inlets and outlets. The placement of these inlets and outlets is aligned to fit with other EK products to minimize the number of bends the user has to make when creating the loop. It was engineered to support the following five components - one CPU water block, one GPU water block, and three radiators.

For the Lian Li O11D EVO Case

Engineered to be mounted on the front window of the O11D EVO case, the EK-Quantum Reflection² PC-O11D EVO D5 PWM D-RGB fits elegantly within the LIAN LI O11D EVO chassis. The front no longer has a stainless steel plate covering the pump; instead, it is now a single piece of see-through acrylic.

Motherboard-Controlled ARGB Strip

The addressable D-RGB LED strip runs down the entire length of the unit, while an anodized black aluminum cover hides the unwanted LED hotspots. The built-in addressable LED strip connects to the motherboard's 5V header or a dedicated D-RGB controller. It is also compatible with MSI MYSTIC LIGHT SYNC, ASROCK POLYCHROME SYNC, ASUS AURA SYNC, and GIGABYTE RGB FUSION 2 software for a coordinated lighting effect.

• Front-mounted acrylic distro plate for Lian Li O11D EVO that combines reservoir, fixed tubing paths, and a D5 pump into a single front-window assembly.
• Clear Plexi construction replaces the former stainless front cover with a full-height transparent waterway.
• PWM-controlled genuine D5 pump delivers high flow capacity for loops with multiple blocks and radiators while maintaining low operating noise.
• Four push-in ports with included female G1/4" adapters allow pre-assembled radiator and fitting sections to slide directly into the distro plate.
• Multiple industry-standard G1/4" threaded inlets and outlets are aligned to reduce required tube bends during loop assembly.
• Supports one CPU block, one GPU block, and up to three radiators within a single loop layout.
• Maximum supported radiator sizes are top EK-Quantum Surface P360, bottom EK-Quantum Surface P360, and side EK-Quantum Surface P280.
• When using a vertical GPU bracket, the bottom radiator limit changes to EK-Quantum Surface S360.
• EK-Matrix7 layout standard fixes port spacing and alignment to speed up planning and hard-tube routing.
• An addressable 5V D-RGB LED strip runs the full length of the unit, with an anodized aluminum cover to mask LED hotspots.
• Compatible with standard motherboard 5V D-RGB headers and dedicated D-RGB controllers for synchronized lighting control.
• Supports standard and reverse O11D EVO layouts, including flipped motherboard configurations.
• Vertical GPU mounting is supported, with narrower GPU designs offering easier tube access to CPU block ports than extra-wide cards.
• Includes the complete distro plate assembly along with mounting hardware, push-in adapters, plugs with covers, and a full set of Allen keys for installation and loop setup.

1) Compatible with the Lian Li O11D case ONLY.
2) The D5 pump is water lubricated and it must not be run dry; otherwise, permanent bearing damage can occur.
3) The Quantum Reflection² distribution plates are designed around Quantum Torque fittings and EK-Quantum Surface radiators.
4) The aluminum oxide mentioned in the materials specification for the D5 pump is not exposed to water and is perfectly safe to run in copper/nickel loops.
