Product Overview

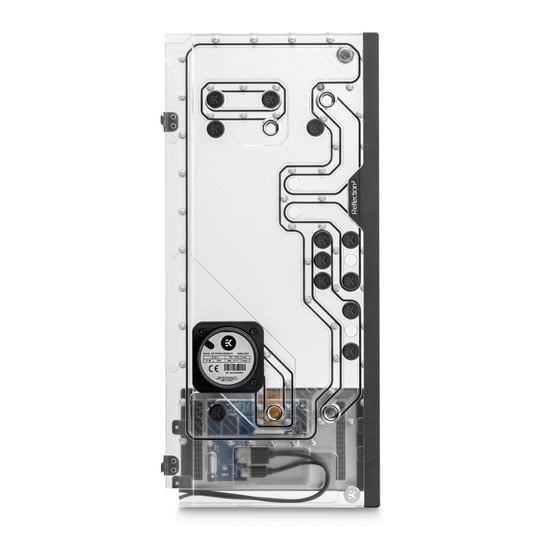

The EK-Quantum Reflection² PC-O11D XL D5 PWM D-RGB - Screen Edition is a custom water-cooling reservoir, routing, and pump solution that seamlessly fits into the front of the case showing off a beautiful 7" IPS screen with an aluminium frame. This waterway is also equipped with six innovative push-in ports that come with female G1/4″ threaded adapters. The idea is that users can assemble the whole radiator + fittings + tubing and use these push-in adapters to simply slide it into the distro plate.


With the installed distro plate, the maximum radiator size is the following:

• Top: EK-Quantum Surface P360.

• Bottom: EK-Quantum Surface X360.

• Side: EK-Quantum Surface P360.


EK-Matrix7 Support

Matrix7 standardizes the products’ dimensions, including the port position and spacing, making liquid cooling loop assembly more intuitive and easier than ever. EK-Quantum Reflection² distro-plates follow the EK-Matrix7 standard, enabling them to seamlessly integrate with the Vector² GPU water blocks and active backplates and Quantum Surface radiators. This means you’ll spend less time planning the loop and bending tubes, while the result will still be an epic build.


This water distribution plate comes with a very powerful yet silent, PWM-controlled genuine D5 pump. The goal was to make a product that has enough power to offer great reliability and outstanding performance with multiple blocks and radiators while keeping the noise level down to a minimum. It is equipped with six innovative push-in ports that come with female G1/4" threaded adapters. The idea is that users can assemble the whole radiator + fittings + tubing and use these push-in adapters to simply slide it into the distro plate. A special metal bracket is included that is used to mount the bottom radiator.


Designed to offer unique aesthetics and ease of use, this advanced all-in-one waterway solution also includes a pump, screen, reservoir, simple mounting mechanism, and multiple industry-standard G1/4" threaded inlets and outlets. The placement of these inlets and outlets is aligned to fit with other EK products to minimize the number of bends the user must make when creating the loop. It was engineered to support the following five components - one CPU water block, one GPU water block, and three radiators.


Engineered to be mounted on the front window of the O11D XL case, the EK-Quantum Reflection² PC-O11D XL D5 PWM D-RGB – Screen Edition fits elegantly within the LIAN LI O11D XL chassis. The front shows off a beautiful 7″ screen that can display anything a user decides as it acts as a secondary monitor. The Lumen screen has a wide SVGA resolution of 1024 x 600 pixels. Its diagonal is 7 inches long, with the IPS panel type for superior viewing angles and vivid colours. It connects to the PC through HDMI 2.0 cable that is included in the package and an internal Type-A USB 2.0 port. The frame of Lumen is CNC-machined out of a single large chunk of 20mm-thick aluminium that is 195mm long and 115mm wide.


The addressable D-RGB LED strip runs down the entire length of the unit, while an anodized black aluminium cover hides the unwanted LED hotspots. The built-in addressable LED strip connects to the motherboard's 5V header or a dedicated D-RGB controller. It is also compatible with MSI MYSTIC LIGHT SYNC, ASROCK POLYCHROME SYNC, ASUS AURA SYNC, and GIGABYTE RGB FUSION 2 software for a coordinated lighting effect.

Features

• Durable acrylic for a beautiful look.
• High-performance D5 pump delivers very good flow.
• Can be installed to save space.
• Integrated ARGB lighting.
• Integrated 7-inch IPS screen.
• Lighting controllable via mainboard and common software.

Specifications
Core Specifications
Edition EK-Quantum Reflection%B2 PC-O11D XL D5 PWM D-RGB - Screen Edition
Product Type Pump/Reservoir Combi
Pump Specifications
Pump Yes
Pump Type Xylem D5 PWM
Max. RPM
Max. Hydraulic Performance 1500 L/h
PWM Duty Cycle Range 20-100 %
Pump Voltage 12 V
Max. Power Draw 23 W
Reservoir Specifications
Reservoir Yes
Reservoir Capacity 787 mL
Fluid Chamber Construction
Combined Specifications
Port Threads G1/4"
Temperature Monitoring
LED Lighting D-RGB
Controller
Power Connector
Power Cable Length
Signal Connector
Signal Cable Length
Cabling Features
Max. Coolant Operating Temperature 60 °C
Compatible Metals
Compatible Coolant
Mounting System
Installation Locations
Product Colour
Dimensions 215 x 472 x 80 mm (WxHxD)
Weight
Additional Information
Scan Code LN135573
Model Number 3831109894316
GTIN 3831109894316
