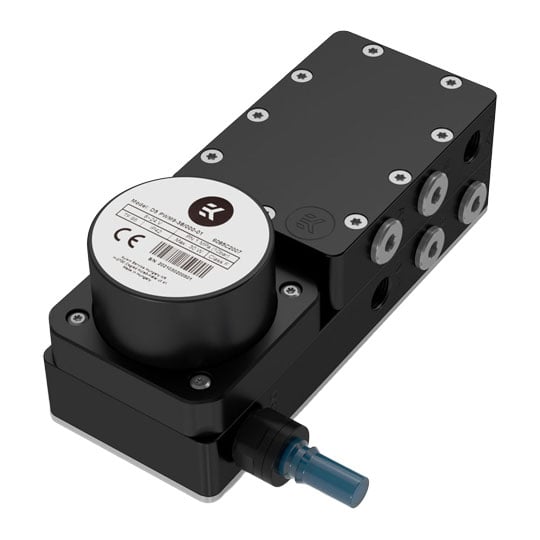

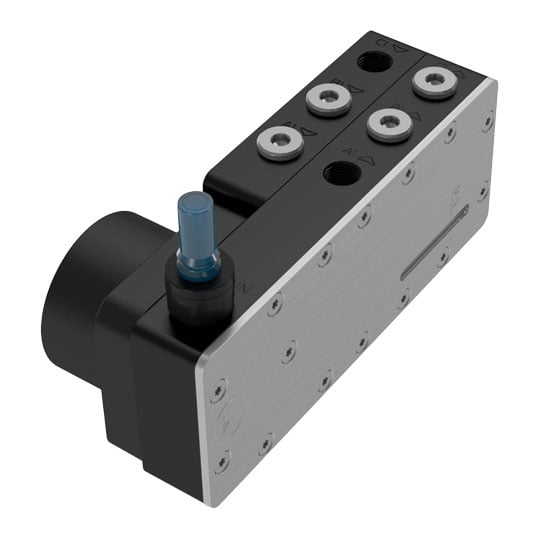

EK-Pro Pump Reservoir Manifold X3 D5 - Acetal
The EK-Pro Pump Reservoir Manifold X3 D5 - Acetal is a professional-grade 3-in-1 liquid cooling solution that combines a high-performance D5 pump, integrated reservoir, and manifold functionality into a single compact unit. Designed for advanced workstation, server, and custom water cooling applications, this versatile combo unit can function as a traditional pump-reservoir, a manifold, or a distribution-style cooling hub for streamlined loop management. Featuring eight G1/4" ports, including dedicated fill and drain connections, it provides direct support for CPU blocks, GPU blocks, and radiators while simplifying tubing layouts and maintenance. Constructed primarily from durable black POM acetal with stainless steel accents and an integrated acrylic viewing window, the unit delivers exceptional durability, reliability, and clean professional aesthetics. Powered by a genuine PWM-controlled D5 G3 pump, the EK-Pro Pump Reservoir Manifold X3 D5 offers strong flow performance, low noise operation, and flexible mounting options for demanding liquid cooling environments.
Genuine PWM-Controlled D5 G3 Pump
The EK-Pro Pump Reservoir Manifold X3 D5 combines three essential cooling components into a single compact unit, simplifying loop design and reducing tubing complexity. Acting as a pump-reservoir combo, manifold, or distro-style hub, the unit allows direct integration of CPU blocks, GPU blocks, and radiators through six primary G1/4" ports, alongside dedicated fill and drain ports. This integrated design helps streamline coolant routing, improve maintenance accessibility, and create cleaner professional-grade builds.
Professional-Grade Build Quality
Built for workstation and server environments, the combo unit is primarily constructed from durable black POM acetal for excellent strength and chemical resistance. A stainless steel front plate adds structural rigidity and premium aesthetics, while the integrated acrylic viewing window provides coolant visibility for easier monitoring and maintenance. High-quality EPDM O-rings ensure dependable sealing throughout the loop, supporting long-term reliability under continuous operation.
Simplified Draining with Included QDC System
The included Quick Disconnect Coupling (QDC) drain solution significantly improves maintenance convenience by allowing coolant to be drained directly from the system without additional tools or complicated disassembly. By attaching the included tubing to the integrated QDC fitting, users can quickly and cleanly empty the loop, reducing downtime and simplifying servicing procedures.
Flexible Mounting and Installation Options
The EK-Pro Pump Reservoir Manifold X3 D5 is designed with multiple M4 mounting points on both the rear and side panels, providing broad installation flexibility for custom systems. The included mounting bracket supports standard 120mm fan spacing, enabling vertical or horizontal installation depending on chassis layout and cooling requirements. This flexibility makes the unit suitable for workstations, rackmount systems, and advanced enthusiast builds.
Installation and Usage Considerations
• The D5 pump is water lubricated and must never be run dry.
• Running the pump without coolant may cause permanent bearing damage.
• Ensure all fittings and plugs are properly tightened before filling the loop.
• The included Quick Disconnect Coupling (QDC) drain solution is optional but simplifies draining and maintenance.
• Compatible with standard G1/4" fittings and liquid cooling accessories.
• The aluminium oxide material used within the pump motor is isolated from coolant and safe for copper and nickel cooling loops.
• 3-in-1 pump, reservoir, and manifold combo unit
• Genuine PWM-controlled D5 G3 pump included
• Functions as a pump-reservoir combo, manifold, or distro-style cooling hub
• Eight G1/4" ports for flexible loop configuration
• Dedicated fill and drain ports for simplified maintenance
• Supports direct connection of CPU blocks, GPU blocks, and radiators
• High-performance D5 pump with low-noise operation
• SATA-powered pump design reduces reliance on Molex connectors
• Durable POM acetal construction with stainless steel front plate
• Integrated acrylic viewing window for coolant visibility
• Includes QDC-assisted drain solution for easier loop draining
• Multiple mounting positions with integrated M4 mounting threads
• Compatible with standard 120mm fan mounting spacing
• Ideal for professional workstations, servers, and custom loops
