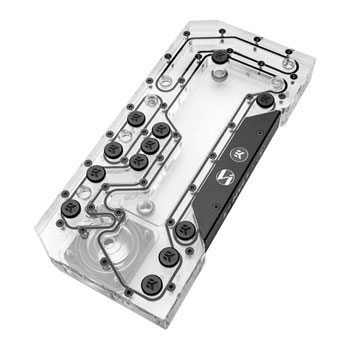

EK-Mana G2 PC-O11D EVO D5 D-RGB Plexi Distribution Plate

EK-Mana G2 PC-O11D EVO D5 Distribution Plate

EK-Mana G2 PC-O11D EVO D5 Distribution Plate is a custom water cooling reservoir, routing and pump solution. This “distro plate” is the successor to the very successful G1 version and is specifically designed to provide an advanced water cooling solution for the incredibly popular O11D chassis series by LIAN LI, namely:

• Lian Li O11D
• Lian Li O11D XL
• Lian Li O11D EVO
• Lian Li O11D EVO XL
• Lian Li O11D EVO RGB

Beginner Friendly and EK-Matrix7 Compatible

It is an all-in-one solution that includes a pump and a reservoir while acting as a coolant routing system. To avoid any confusion that this distro plate is only for novice-level users, seasoned PC builders will also appreciate the engineering that went into the EK-Mana G2. This product is EK-Matrix7 compatible. The Matrix7 standard ensures the placement of the inlets and outlets is aligned with other Matrix7-compatible products. This minimizes the number of bends needed to create a perfect loop, or completely removes the tube bending process from the equation if using pre-bent 90° tubes.

Widely Compatible

The EK-Mana G2 is exceptionally versatile and can support a wide variety of hardware and radiator options, which is why this distro plate is expected to find its home in numerous other non-Lian Li cases too. For a standard setup with a horizontally mounted GPU with an ATX motherboard, the list of compatibility for the EK-Quantum Surface radiator is as follows:

• Lian Li O11D: maximum 360mm P series at the top and 360mm S series at the bottom.
• Lian Li O11D XL: maximum 360mm P series at the top and 360mm X series at the bottom.
• Lian Li O11D EVO: maximum 360mm P series at the top and 360mm X series at the bottom.
• Lian Li O11D EVO XL: maximum 420mm P series at the top and 420mm X series at the bottom.
• Lian Li O11D EVO RGB: maximum 360mm P series at the top and 360mm X series at the bottom.

Powerful SATA D5 PWM Pump

The distro plate comes with a powerful, market-proven, PWM-controlled D5 pump made in Europe! The pump can draw a maximum of 30W and is powered via a black flat cable with a SATA connection. The goal was to create a product with enough power to give outstanding performance with multiple blocks and radiators.

Addressable RGB

It is mounted on the side of the case, revealing the beautiful aesthetics through the side window. The built-in addressable LED strip connects to the motherboard 5V header and is compatible with MSI’s Mystic Light Sync, ASRock’s Polychrome Sync, ASUS’ Aura Sync, and GIGABYTE’s RGB FUSION software for a coordinated lighting effect. It also works with Lian Li’s L-Connect RGB control software.

• Side-mounted acrylic distro plate for the Lian Li O11 series, combining reservoir, coolant routing, and an integrated D5 pump in a single assembly.
• Specifically supports Lian Li O11D, O11D XL, O11D EVO, O11D EVO XL, and O11D EVO RGB chassis, with mounting tailored to the side panel layout.
• Reservoir dimensions with pump installed measure 312 × 76 × 142 mm, with an approximate 250 ml coolant capacity.
• Fitted with a market-proven PWM-controlled D5 pump featuring an electronically commuted spherical motor.
• Operates at 12 V DC with up to 30 W power draw, delivering a maximum flow of 1500 L/h and 3.9 m head pressure.
• Supports liquid temperatures up to 60 °C for stable multi-component loop operation.
• Powered via SATA with speed control through a standard 4-pin PWM fan connector.
• PWM range spans roughly 20–100%, defaulting to full speed when no PWM signal is detected.
• EK-Matrix7 compliant port spacing aligns inlets and outlets with other Matrix7 components to reduce or eliminate tube bending, including compatibility with pre-bent 90° tubing.
• Multiple G1/4" threaded ports are positioned to simplify loop routing with horizontally mounted GPUs and ATX motherboards.
• Radiator support varies by chassis: O11D supports up to 360 mm P series top and 360 mm S series bottom; O11D XL supports 360 mm P top and 360 mm X bottom; O11D EVO supports 360 mm P top and 360 mm X bottom; O11D EVO XL supports 420 mm P top and 420 mm X bottom; O11D EVO RGB supports 360 mm P top and 360 mm X bottom.
• Integrated addressable D-RGB lighting uses 9 LEDs with an 800 mm cable and standard 3-pin 5V connector (5V, Data, Blocked, Ground).
• Lighting connects to a 5V motherboard header and supports common RGB control software, including motherboard-based and L-Connect ecosystems.

1) Designed around the Lian Li O11D, O11D EVO, O11D EVO RGB, O11D EVO XL, and O11D XL PC cases.
2) The D5 pump is water lubricated and it must not be run dry; otherwise, permanent bearing damage can occur.
3) Do not clean the reservoir with alcohol derivates or other solvents as the acrylic may crack!
4) The aluminum oxide mentioned in the materials specification for the D5 pump is not exposed to water and is perfectly safe to run in copper/nickel loops.
5) EK-Mana G2 PC-O11D EVO D5 Distribution Plate is not compatible with E-ATX motherboards or reverse connector (BTF, Project Zero, Project Stealth... etc) cases.
