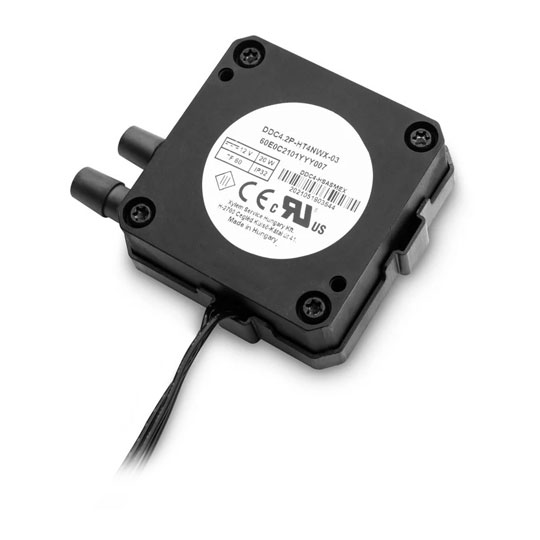

Ek-Loop DDC 4.2 PWM Motor High-Performance Water Pump with Power Management Control

EK-Loop DDC 4.2 PWM Ball Bearing Motor, 1000L/h, 18W, 12V, G1/4, 50,000 MTBF, Black

MORE INFO

Thumbnail 1 : Ek-Loop DDC 4.2 PWM Motor High-Performance Water Pump with Power Management Control

Thumbnail 2 : Ek-Loop DDC 4.2 PWM Motor High-Performance Water Pump with Power Management Control

Thumbnail 3 : Ek-Loop DDC 4.2 PWM Motor High-Performance Water Pump with Power Management Control

Thumbnail 4 : Ek-Loop DDC 4.2 PWM Motor High-Performance Water Pump with Power Management Control

Ek-Loop DDC 4.2 PWM Motor High-Performance Water Pump with Power Management Control : image 1

zoom

Ek-Loop DDC 4.2 PWM Motor High-Performance Water Pump with Power Management Control : image 2

zoom

Ek-Loop DDC 4.2 PWM Motor High-Performance Water Pump with Power Management Control : image 3

zoom

Ek-Loop DDC 4.2 PWM Motor High-Performance Water Pump with Power Management Control : image 4

zoom

Scan code: LN118813 Manufacturer code: 3831109848500

Share Facebook Twitter Google Reddit Pinterest LinkedIn

Order now and get it tomorrow, Fri 27th May

£65.99

Add To Basket

Get it Tomorrow, 27 MayIn stock

spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.

Delivery Options

By DPD On 27th May to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Collect instore Collect from our Bolton store, BL6 6PE | Free

Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store | £4.79

Collect your parcel from your newsagents, petrol stations and convenience stores

Services

SCANPROTECT Protect against installation damage for 28 days. More info

ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Share Facebook Twitter Google Reddit Pinterest LinkedIn WhatsApp

Product Overview

High-Performance Water Pump PWM Management Control

EK-Loop DDC 4.2 PWM Motor is a high-performance water pump with power management control (via PWM - pulse width modulation) of rotation speed through motherboard BIOS or a dedicated fan controller. The main difference to a DDC 3.2 PWM is the black cabling, SATA power connector instead of MOLEX, and 32-bit communication.

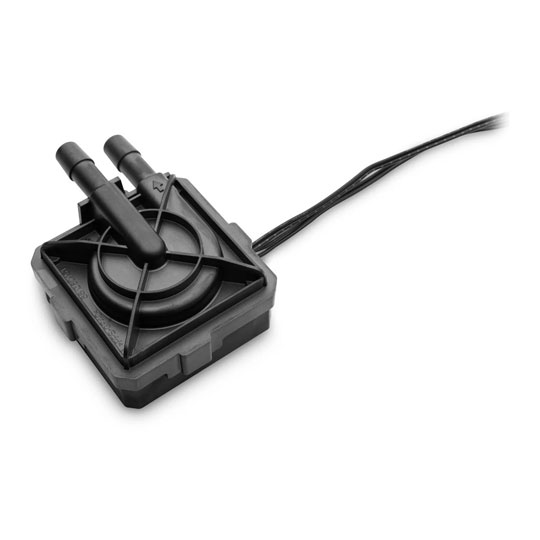

This pump features 3/8" (10mm) non-removable plastic barbs to support any 10mm ID tubing and is compatible with any EK-Quantum Kinetic TBE DDC, and FLT DDC pump-res combo units. EK highly advises using a Convection heatsink to even further prolong the lifespan of this pump.

Despite a remarkably small footprint of 2.4" square, EK-Loop DDC 4.2 PWM features an astounding 5,2m of head to provide superior flow rates in today's most complex liquid-cooled systems. This pump is also a high-reliability, high-pressure industrial pump, featuring a 50,000 hour MTBF (5 year lifetime).

Its compact design, quiet and powerful motor make it ideally suited for heavy-duty cooling in environments where space is at a premium.

Features

• Dimensions (W x D x H): 90 x 62 x 38mm.
• Motor: Electronically commuted ball bearing motor.
• Rated voltage: 12V DC.
• Power consumption: 18W.
• Maximum head pressure: up to 5.2m.
• Maximum flow rate: up to 1000L/h.
• Maximum liquid temperature: 60°C.
• Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal.

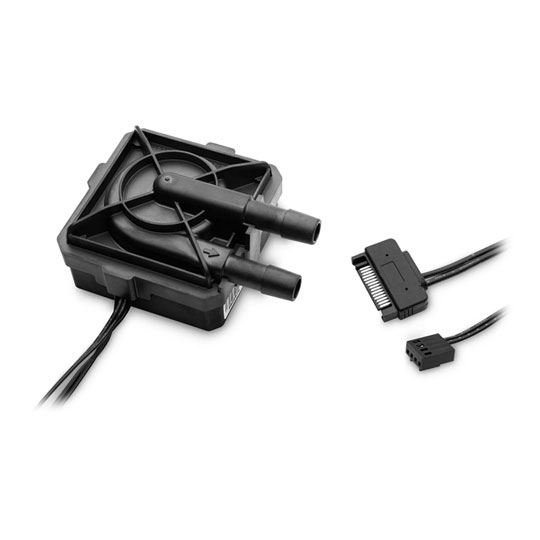

• Power connector: SATA power and 4-Pin PWM FAN connector for PWM / RPM readout.

Specifications

Core Specifications
Edition	DDC 4.2 PWM Motor
Product Type	Pump

Pump Specifications
Pump	Yes
Pump Type
Max. RPM
Max. Hydraulic Performance	1000 L/h
PWM Duty Cycle Range
Pump Voltage	12 V
Max. Power Draw	18 W

Reservoir Specifications
Reservoir	No
Reservoir Capacity
Fluid Chamber Construction

Combined Specifications
Port Threads	G1/4"
Temperature Monitoring
LED Lighting
Controller
Power Connector
Power Cable Length
Signal Connector
Signal Cable Length
Cabling Features
Max. Coolant Operating Temperature	60 °C
Compatible Metals
Compatible Coolant
Mounting System
Installation Locations
Product Colour	Black
Dimensions	90 x 38 x 62 mm (WxHxD)
Weight

Additional Information
Scan Code	LN118813
Model Number	3831109848500
GTIN	3831109848500
