EK-Loop Angled Bracket - 140/120mm

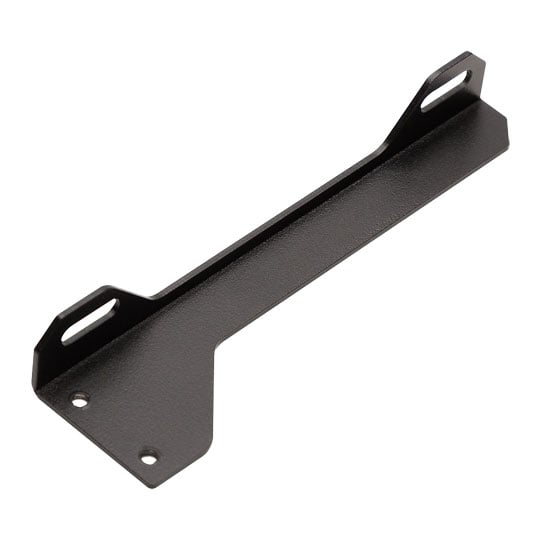

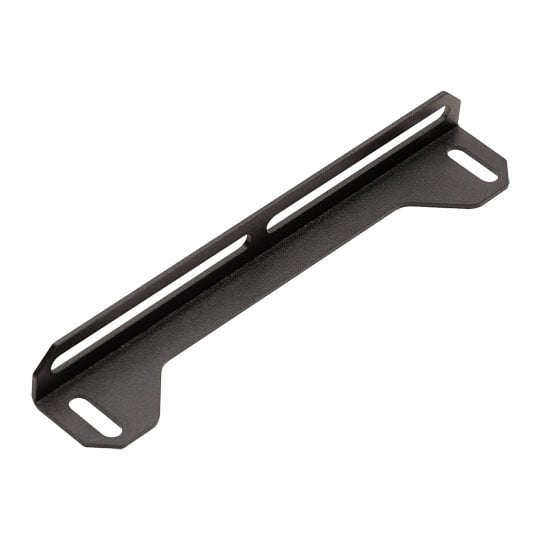

The EK-Loop Angled Bracket – 140/120mm is a steel mounting solution that allows components with 120mm fan mounting holes (105mm hole spacing) to be installed perpendicular to standard 140mm fan mounts (125mm hole spacing). Originally developed for FLT-style pump and reservoir combos, it can also be used with standalone reservoirs, radiators, and fans that share 120mm fan mounts. The integrated rail system provides approximately 50mm of offset adjustment in each direction, as screw positions are not fixed, enabling flexible placement inside the chassis. Manufactured from press-bent 1.5mm painted steel, the bracket set includes left, right, and base sections along with the required screws, washers, spacers, nuts, and a 2.5mm Allen key for installation.
Features
• Steel mounting bracket set for 120mm fan positions (105mm hole spacing), enabling perpendicular installation to 140mm fan mounts.
• Designed to mount FLT-style pump/reservoir combos, standalone reservoirs, radiators, or fans at a 90° angle to standard 140mm fan mounts.
• Rail-based mounting system allows approximately 50mm offset adjustment in each direction, as screw positions are not fixed.
• Supports mounting using either the long or short side of FLT units for expanded placement flexibility.
• Constructed from press-bent 1.5mm thick painted steel for structural stability.
• Compatible with any product using 120mm fan mounting holes, including FLT reservoirs and combo units.
• Supplied with left, right, and base brackets, mounting screws, washers, spacers, nuts, and a 2.5mm Allen key for installation.
