EK-HD Adapter Female 10/12mm - Black Nickel
EK-HD Adapter Female 10/12mm - Black Nickel, Solid-tube Fitting
Scan code:
LN52761
Manufacturer code:
3831109845882
Order now and receive it
by Friday, 8th July
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
- By DPD On 8th Jul to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- UPS and DPD Pickup Pickup from local convenience store | £4.79
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together
Product Overview

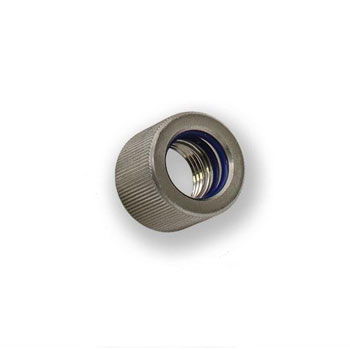

EK-HD Adapter Female is a solid-tube female type fitting, intended to be used with solid tubing such as Acrylic or Copper tube.
The product is made of machined brass with quality O-rings. These adapters are fully compatible with EK-CSQ series (45°/90°) angled adapters.
Features Technical data:
- inner thread: G1/4" BSP
- supported tube: 12mm (OD)
- outer diameter of a fitting: 18.7mm
- installed height: 11mm
- compatible tubing: solid Acrylic-, Copper-, Brass- or Stainless Steel tube
ROHS Compliant!
Made in Slovenia - EU!
PLEASE NOTE:
- Please wet the gasket (o-ring) using drops of water prior to installing solid tube.
- Do not use excessive force when inserting solid tube!
- It is mandatory to chamfer the edges of freshly cut solid tube in order to prevent gasket (o-ring) damage. EK recommends a 0,5mm x 45° chamfer.
The product is made of machined brass with quality O-rings. These adapters are fully compatible with EK-CSQ series (45°/90°) angled adapters.
Features Technical data:
- inner thread: G1/4" BSP
- supported tube: 12mm (OD)
- outer diameter of a fitting: 18.7mm
- installed height: 11mm
- compatible tubing: solid Acrylic-, Copper-, Brass- or Stainless Steel tube
ROHS Compliant!
Made in Slovenia - EU!
PLEASE NOTE:
- Please wet the gasket (o-ring) using drops of water prior to installing solid tube.
- Do not use excessive force when inserting solid tube!
- It is mandatory to chamfer the edges of freshly cut solid tube in order to prevent gasket (o-ring) damage. EK recommends a 0,5mm x 45° chamfer.
EK-HD Adapter Female 10/12mm - Black Nickel
