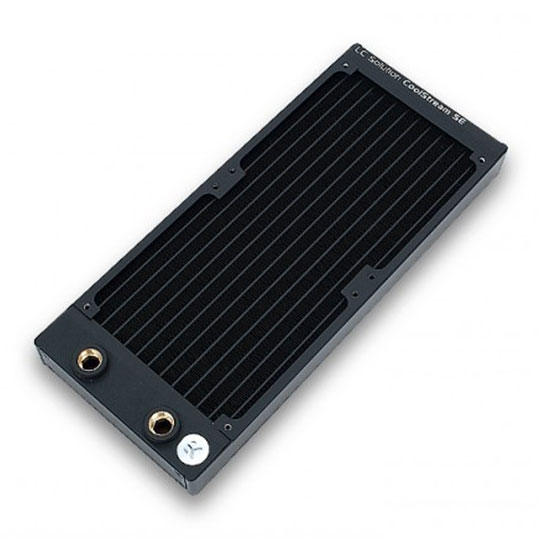

EKWB CoolStream SE 240 Water Cooling Radiator
Scan code: LN85111
Manufacturer code: 3831109860465
End Of Life
EKWB CoolStream SE 240 Water Cooling Radiator
EK-CoolStream SE240 Slim Dual High Performance Liquid Cooling Radiator, 2x G1/4 Port Threads
Scan code:
LN85111
Manufacturer code:
3831109860465
This product is no longer available to purchase.
Email me when the availability or price changes
-
0% UP TO MONTHS Spend £99 or more and choose PayPal at checkout.
More info
- SCANPROTECT Protect against installation damage for 28 days. More info
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview
EK-CoolStream SE is a slim, high-performance computer liquid cooling radiator which combines EK's unique CSQ design with latest radiator core engine. Built for EK-Vardar 120mm high static pressure fans, these radiators are optimized for maximum heat dissipation across entire fan operational range thus delivering exceptional performance at both low- and high airflow operation.
EK assured quality level, optimal price-performance ratio and unique minimalistic design make these EK-CoolStream SE series radiators a perfect choice for any computer water cooled system. Overall compact measurement of the SE series radiator allow for utilization even in the tiniest computer chassis.
This radiator offers best cooling capacity in 25mm thick radiator class: copper fins provide massive surface area while the parallel flow cooling chambers reduce hydraulic flow resistance to a minimum. Radiator shrouds are tapped with UNC 6-32 threads on both sides to enable push-pull fan installation to even further increase the cooling performance.
This product features two recessed G1/4 threaded ports with two pre-installed extenders to allow any G1/4 threaded fitting to be used. EK recommends EK-ACF series compression fittings. Features Construction:
• Copper fins.
• 90% copper tubing (H90).
• Brass chambers.
• Aluminum/Steel housing.
Specifications:
• Dimensions: 280 x 120 x 26mm (L x W x H).
• Weight: 0.70kg.
• Liquid Capacity: ~120mL.
• FPI: 22.
• Port threads: 2x G1/4.
• Fan compatibility: any standard size 120x120x25mm fan; UNC 6-32 thread tapping.
• Pressure tested: 1bar(g).
Includes:
• EK-CoolStream SE series radiator /w two pre-installed G1/4 extenders

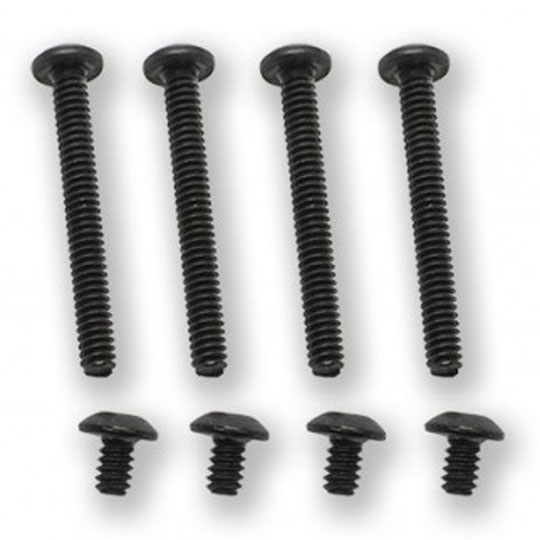

• Flat-head UNC 6-32 screws (l=30mm).
• Flat-head UNC 6-32 screws (l=5mm).
• Allen key 2.5mm.
Please Note:
• When using fans other than standard 120x120x25mm size please use appropriately long screws!
• Use of the improperly long screws may result in piercing of the radiator core and irrepairable damage the product. Such misuse is not covered by product warranty!
• This product should NOT be installed with any aluminum Fluid Gaming parts!
EK assured quality level, optimal price-performance ratio and unique minimalistic design make these EK-CoolStream SE series radiators a perfect choice for any computer water cooled system. Overall compact measurement of the SE series radiator allow for utilization even in the tiniest computer chassis.
This radiator offers best cooling capacity in 25mm thick radiator class: copper fins provide massive surface area while the parallel flow cooling chambers reduce hydraulic flow resistance to a minimum. Radiator shrouds are tapped with UNC 6-32 threads on both sides to enable push-pull fan installation to even further increase the cooling performance.
This product features two recessed G1/4 threaded ports with two pre-installed extenders to allow any G1/4 threaded fitting to be used. EK recommends EK-ACF series compression fittings. Features Construction:
• Copper fins.
• 90% copper tubing (H90).
• Brass chambers.
• Aluminum/Steel housing.
Specifications:
• Dimensions: 280 x 120 x 26mm (L x W x H).
• Weight: 0.70kg.
• Liquid Capacity: ~120mL.
• FPI: 22.
• Port threads: 2x G1/4.
• Fan compatibility: any standard size 120x120x25mm fan; UNC 6-32 thread tapping.
• Pressure tested: 1bar(g).
Includes:
• EK-CoolStream SE series radiator /w two pre-installed G1/4 extenders
• Flat-head UNC 6-32 screws (l=30mm).
• Flat-head UNC 6-32 screws (l=5mm).
• Allen key 2.5mm.
Please Note:
• When using fans other than standard 120x120x25mm size please use appropriately long screws!
• Use of the improperly long screws may result in piercing of the radiator core and irrepairable damage the product. Such misuse is not covered by product warranty!
• This product should NOT be installed with any aluminum Fluid Gaming parts!
