Red EK-ACF 10/13mm Soft Tube Water Cooling Compression Fitting
Scan code: LN62956
Manufacturer code: 3831109846407
End Of Life
Red EK-ACF 10/13mm Soft Tube Water Cooling Compression Fitting

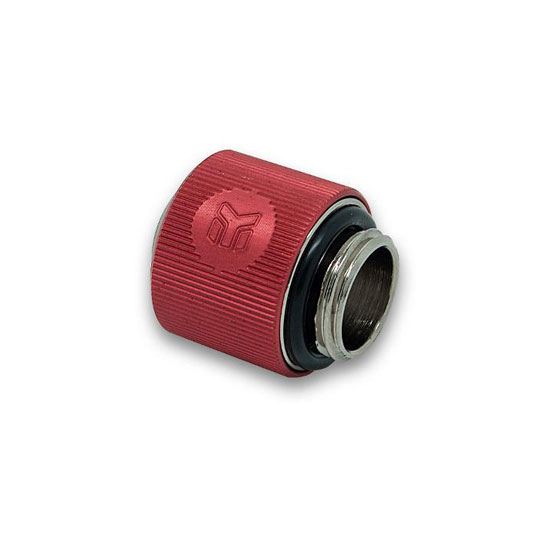

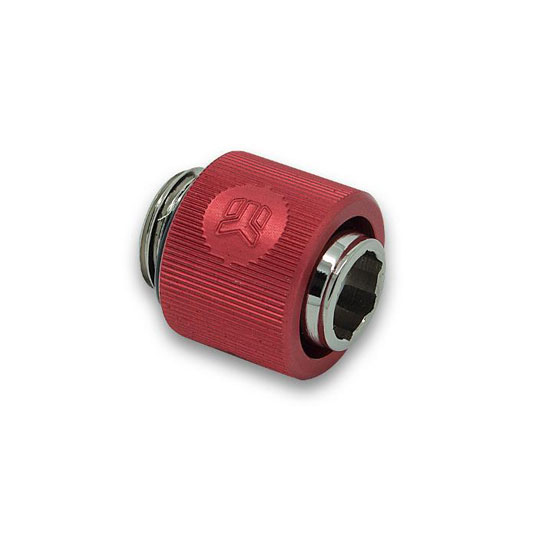

EK-ACF Fitting 10/13mm Soft Tube Compression Fitting G1/4, Brass + Anodized Aluminium - Red
Scan code:
LN62956
Manufacturer code:
3831109846407
This product is no longer available to purchase.
Email me when the availability or price changes
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
Product Overview
EK-ACF Fitting (Advanced Compression Fitting) is a soft-tube compression fitting, designed for use with flexible soft tubing such as PVC, EPDM, Norprene, silicone or any other type of compatible flexible tube.
EK-ACF Fitting is a more secure variant of the tubing fitting connector as the locking ring prevents flexible tube to be pulled out of the fitting by compressing the tubing wall underneath the ring. Such fitting does not require any hose clamp or similiar substitute.

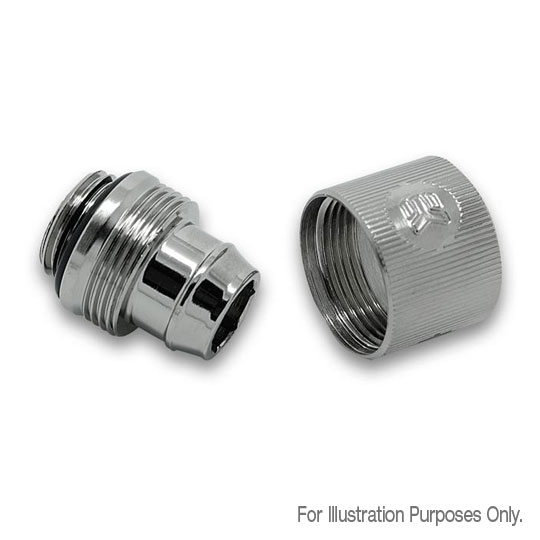

The barb is made of nickel-plated CNC machined brass and the ring is made of anodized CNC machined aluminium. Fittings feature quality rubber O-rings. These fittings are fully compatible with EK-AF series (45°/90°) angled adapters.

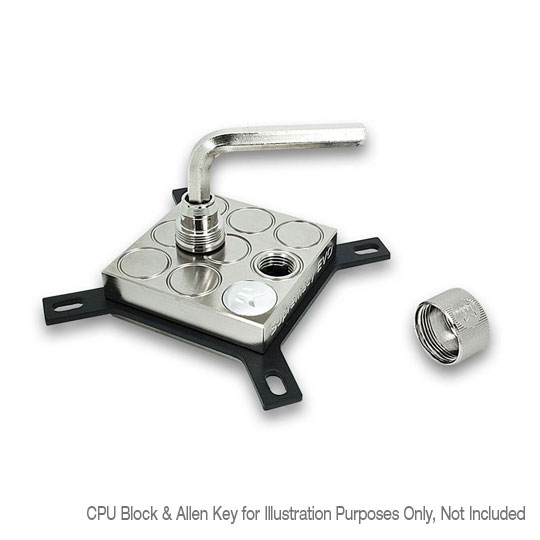

These fittings sport low-profile design hence it is mandatory to secure the fitting barb using Allen Key 8mm (not included) to prevent skin damage to the finger tips - barb has no finger grip surface. Features • Thread: G1/4" BSP; 4.5mm male thread lenght
• Supported tube: 3/8" / 1/2" ID/OD (roughly equalls 10/13mm ID/OD)
• Outer diameter of a fitting: 19mm
• Installed height: 14.5mm
• Compatible tubing: PVC, EPDM, Norprene, silicone, most types of flexible tube
• ROHS 2.0 Compliant!
• Made in Slovenia - Europe!
PLEASE NOTE:
• This fitting is to be used only with correctly sized tubing!
• Do not use excessive force when attaching fitting barbs using Allen Key 8mm (not included) in order to prevent water block damage!
• Do not use any tools to secure locking ring to the fitting barb.
EK-ACF Fitting is a more secure variant of the tubing fitting connector as the locking ring prevents flexible tube to be pulled out of the fitting by compressing the tubing wall underneath the ring. Such fitting does not require any hose clamp or similiar substitute.
The barb is made of nickel-plated CNC machined brass and the ring is made of anodized CNC machined aluminium. Fittings feature quality rubber O-rings. These fittings are fully compatible with EK-AF series (45°/90°) angled adapters.
These fittings sport low-profile design hence it is mandatory to secure the fitting barb using Allen Key 8mm (not included) to prevent skin damage to the finger tips - barb has no finger grip surface. Features • Thread: G1/4" BSP; 4.5mm male thread lenght
• Supported tube: 3/8" / 1/2" ID/OD (roughly equalls 10/13mm ID/OD)
• Outer diameter of a fitting: 19mm
• Installed height: 14.5mm
• Compatible tubing: PVC, EPDM, Norprene, silicone, most types of flexible tube
• ROHS 2.0 Compliant!
• Made in Slovenia - Europe!
PLEASE NOTE:
• This fitting is to be used only with correctly sized tubing!
• Do not use excessive force when attaching fitting barbs using Allen Key 8mm (not included) in order to prevent water block damage!
• Do not use any tools to secure locking ring to the fitting barb.
