EIZO ColorEdge CG2400SV 24" Monitor
EIZO ColorEdge24" CG2400SV, 1920x1200, 16:10, 400cdm2, IPS, USB-C/DisplayPort/HDMI, Black
Email me when the availability or price changes
Finance this product
- From £47.01 / month (APR 16.9%) for 48 months or 0% for 4 months
- With a 10% deposit from just £41.64 / month (APR 15.9%)
Suggested Alternatives
EIZO - 'CG2400SV ColorEdge Monitor'

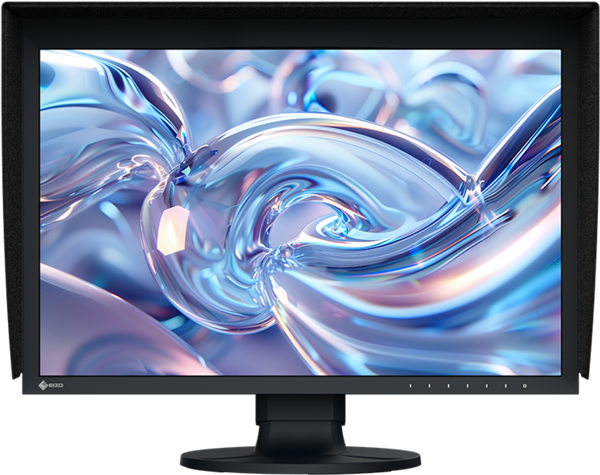

Perfect colours and contrastsThe EIZO ColorEdge CG2400SV is a 24.1-inch graphics monitor purpose-built for professional editing suites, studios, and on-the-go mobile productions, featuring advanced 3G-SDI connectivity and true HDR support for uncompromising image quality. Boasting a WUXGA (1920 x 1200) resolution, wide AdobeRGB and DCI-P3 colour gamut coverage, a high 1800:1 contrast ratio, and rapid colour stability, it delivers precise, vibrant visuals ideal for photographers, videographers, and content creators. Integrated self-calibration technology, fast 3-minute warmup, SDI/HDMI/DisplayPort inputs, and robust sustainability features make the CG2400SV an innovative and reliable solution for modern colour-critical workflows.
Precision And Colour Accuracy

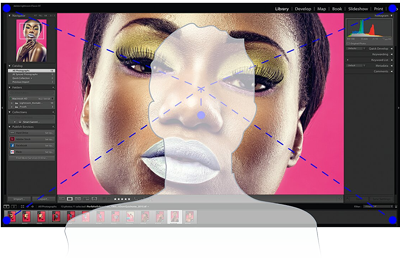

Outstandingly Sharp Image QualityThe monitor has an impressive top resolution (1920 x 1200), a very good contrast ratio of 1800:1, and a brightness of 400 cd/m2. For example, you can edit graphics and images down to the pixel. As an added benefit, text contours are clear and precise. The LCD panel with the IPS (Wide Gamut) panel allows for a viewing angle of 178 degrees. Ensuring that hue and contrast remain stable for the viewer.
Wide gamut colour spaceTo be able to use the entire colour spectrum of modern cameras, you need a monitor with the largest possible colour space. Only then is it possible to visually assess and edit the saturated hues contained in the file. That is why the IPS panel of the ColorEdge CG2400SV covers, for example, the wide AdobeRGB photo gamut as well as the CMYK print gamut ISO-Coated V2 to more than 99 %. This means that the full colour spectrum of modern cameras is represented unaltered and without gaps. And a precise simulation of the print result in the softproof view is also guaranteed.
The CG2400SV covers 98 % of the DCI-P3 color space used in the film industry and also supports the Rec. 2020 standard.
True BlackWith its high contrast ratio, the CG2400SV displays deep blacks, which often look pale or washed out on a typical LCD monitor due to the backlight. This is especially true when viewing the monitor from the side in dimly lit rooms. The CG series is equipped with a retardation film for this purpose, which allows for this depth of blacks even at wide viewing angles.
16-bit LUT and 10-bit modeThe 3D LUT (look-up-table) on the CG2400SV employs internal calculations with 16 bits for an extremely high colour depth and outputs the signals with up to 10 bits. This provides billions of hues for calculating the precise monitor display, effectively preventing display errors caused by the monitor, such as banding or clipping, which can result in tonal breaks in gradients or unnecessary colours in greyscale. Even fine nuances and structures in dark or highly saturated areas of the image can be displayed in a differentiated and detailed manner.

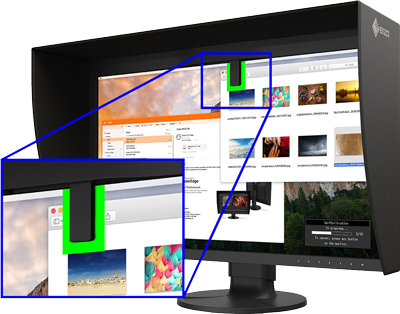

Integrated sensor for self-calibrationAn integrated calibration sensor ensures you achieve maximum colour accuracy. The sensor is perfectly aligned to the monitor, takes environmental influences such as light into account, and correlates the centre of the image with the edge of the image. This ensures an even result over the whole monitor. The sensor is located in the bezel and is only extended when performing measurements. This means that no external calibration device is necessary, and the colour fidelity of the monitor is optimal at all times.
You can use the ColorNavigator software or the on-screen menu to determine when you want monitor calibration to take place automatically. For example, you can schedule calibration to take place during your lunch break or overnight, with no PC connection required.
Digital Uniformity EqualizerEach individual monitor panel is precisely measured over the entire surface at the EIZO factory. Any inhomogeneities in brightness and unnecessary colour are detected and removed. This process (Digital Uniformity Equalizer) guarantees that identical colours always look the same across the entire surface of the monitor, no matter where they are displayed. Only in this way is precise image processing and retouching possible.
Stable displayTo ensure gradations, colour, brightness and other characteristics are always accurately displayed even when the ambient temperature changes, the ColorEdge CG2400SV is equipped with a temperature sensor. It accurately measures the monitor’s internal temperature, while an AI (artificial intelligence)-assisted correction algorithm* distinguishes between different temperature change patterns and calculates a precise adjustment in real time.
It takes a traditional monitor a minimum of 30 minutes for the brightness, chromaticity and tone values to stabilise, whereas the ColorEdge CG2400SV only needs three minutes. It means that users know they can reliably trust the colours of the monitor within a short time after switching in on.

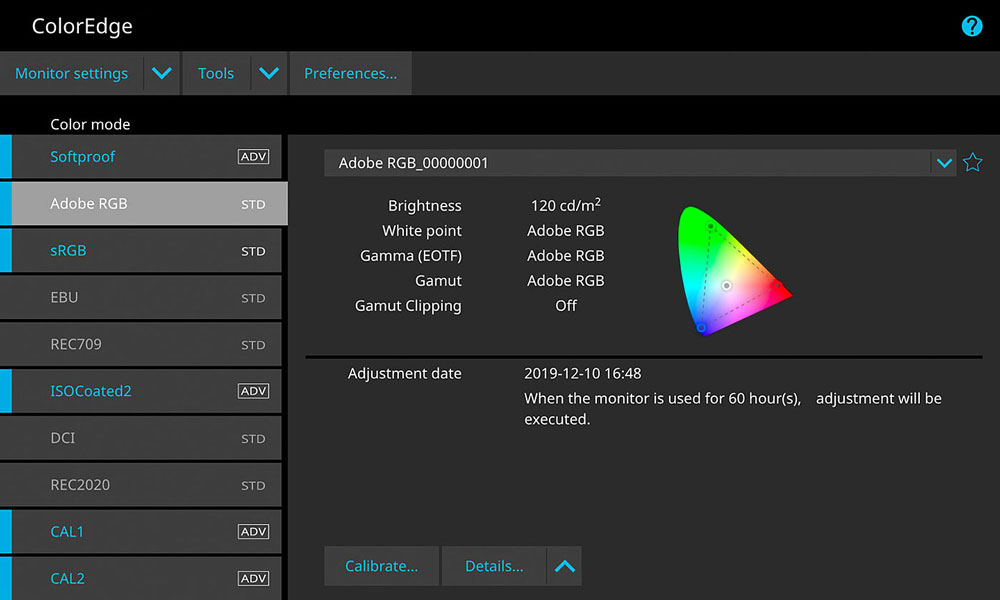

EIZO software for fast calibration and printingGood image processing is only possible on well-calibrated monitors. The usual software calibration takes a long time and requires the user to have a certain level of technical expertise. The CG2400SV is supplied with ColorNavigator hardware calibration software. With ColorNavigator, you can perform calibration quickly, easily, and with excellent colour precision: During calibration, the software directly accesses and saves to the look-up-table in the monitor hardware. You determine the relevant components such as white balance, gamma, brightness, and tone value curve according to your requirements. Calibration then runs automatically based on the default set during production and is therefore unique in terms of precision and speed. This also means that calibration can be performed by users in just a few steps, with no need for in-depth technical knowledge. Because the calibration takes place via the monitor hardware, it is performed without loss and independently of the computer and graphics board. The CG2400SV can also be smoothly integrated into an existing system.
The free Quick Color Match software helps users, even without in-depth expertise in colour management, to see on the monitor how their images will look when printed on their Canon or Epson inkjet printer at home. In this way, the images can be optimised for the special properties of the selected photo paper even before printing, which helps users avoid expensive misprints.

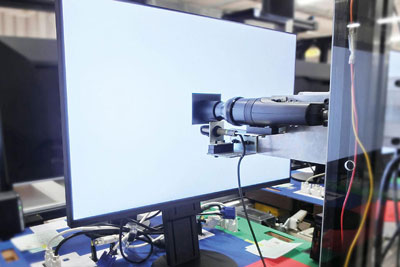

Perfect settings right from the factoryEvery ColorEdge CG2400SV is individually measured and optimally configured in the factory, enabling it to be used immediately after it has been unboxed. To this end, the gamma curves for the red, green and blue channels are closely checked and corrected, if necessary. This unique EIZO factory calibration enables the user to start using the monitor with the preset gamut range right out of the box. This painstaking calibration at the factory ensures that the user can quickly recalibrate the monitor if needed using ColorNavigator.
Each ColorEdge CG2400SV comes with an individual calibration report that shows the measurement results of the factory calibration of the monitor. The report proves the homogeneity, gamma curve, colour space coverage and white point of the monitor.

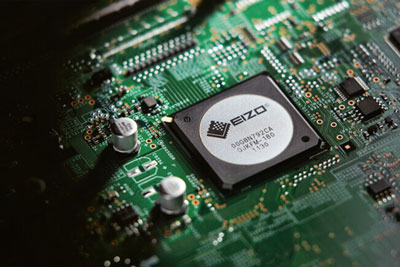

EIZO microchipThe CG2400SV has a high-quality microchip whose features EIZO has developed specifically for the special requirements of color-accurate work. This microchip is the brain of a ColorEdge as it guarantees the precise, uniform and constant image display that is the hallmark of EIZO.
Video And Film Production

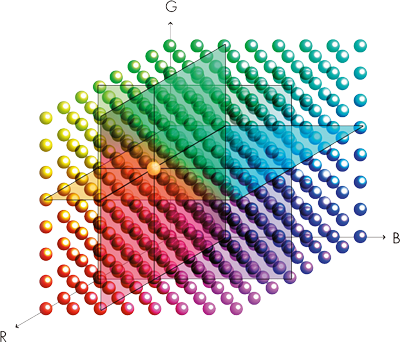

High-resolution 3D LUTThe 3D LUT ensures the most precise tonal value allocation and extremely accurate colour tone reproduction, which can be seen, among other things, in the grey wedge. In LCDs, the brightness levels vary from module to module in relation to the image signal and the colour mixing (addition) of red, green and blue. This can only be accurately recorded and controlled with the help of particularly precise measuring devices.
Ex works, EIZO therefore adjusts every monitor in the CG series and its colour and tone curve. This ensures a consistent colour temperature across the entire grey scale. The result: colour reproduction is the same, precise and reliable for every single CG2400SV.

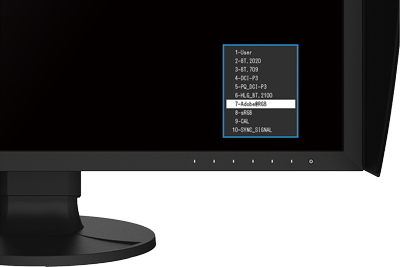

Colour space presetsPre-sets for the DCI-P3, BT.709 and BT.2020 colour spaces are precisely calibrated ex works and ensure working with correct gamma values. In addition, colour modes for PQ (DCI and BT.2100) and HLG (BT.2100) for displaying HDR content are also pre-set at the factory. The brightness setting for each pre-set can be conveniently adjusted and recalibrated thanks to the integrated calibration sensor. HDR Mode of Windows and MAC OSX is directly supported. This provides an easy way using typical HDR video application displaying the right tone curve at the matching monitor setting.
The ColorEdge CG2400SV supports the two gamma curves for HDR video: the HLG (Hybrid Log-Gamma) curve and the PQ (Perceptual Quantization) curve. Up to the maximum brightness of 400 cd/m2, thus the CG2400SV ensures a meaningful impression of the processed HDR material, so that a HDR reference monitor like the ColorEdge CG1 is often only required in the final production step.

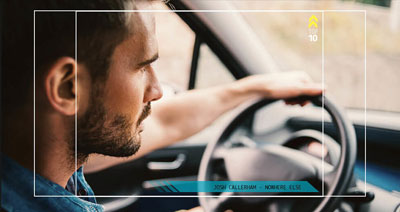

Safe Area MarkerIdeal for subtitles and critical images: Thanks to the Safe Area Marker, you know which area of the scene is displayed in a different aspect ratio. You can therefore see immediately whether subtitles, texts or important picture elements are in the visible area. You can adjust the marker color, size and aspect ratio so that the marker is clearly visible in every image.
The ColorEdge CG2400SV offers Sync Signal functionality, which adjusts monitor settings such as signal range and colour format to the video signal, offering consistent color settings during the entire production process.

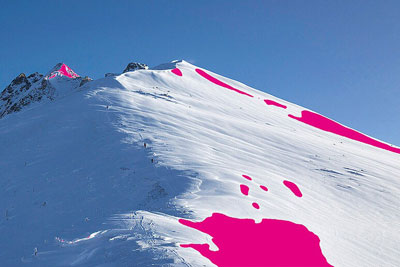

Luminance warningThe brightness warning can be used to mark areas that exceed a certain brightness (300, 500, 1000 or 4000 cd/m2) when using the PQ mode. These areas are marked optionally in yellow or magenta.

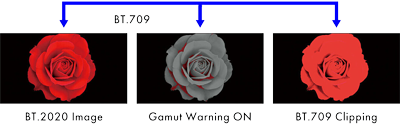

Gamut warningThe Gamut warning operates in two modes: Rec. 2020 image content that can’t be displayed in the Rec. 709 gamut is displayed in grayscale. Alternatively, clipping mode is simulated in Rec. 709 to show how Rec. 2020 material would look on HDTV devices.
Flexible refresh rateFilms are normally recorded at 24 fps. They therefore appear unnatural with the conventional monitor rendering of 60 Hz. The monitor supports an image frequency of 24 to 60 Hz. This means that you can view and edit your film material as it was taken.
HDMI signals with refresh rates of 60, 50, 30, 25 and 24 Hz are supported. The monitor also features I/P conversion.
Variety Of Ports
Professional connectivityThe CG2400SV has one SDI input and one SDI output and supports 3G-SDI Level A and HD-SDI signals. SDI connectivity enables the transmission of uncompressed video signals, preserving the full quality of HDR content without causing visual artifacts. This ensures seamless integration with professional camera systems and live video feeds, making the monitor a reliable solution for precise monitoring on location and in the studio.
In addition, the CG2400SV offers one DisplayPort™ and one HDMI® connection as well as two USB Type B inputs. A USB hub with four connections (USB 5Gbps: Type A x 2, USB 2.0: Type A x 2) is easily accessible on the side and allows additional devices to be connected.

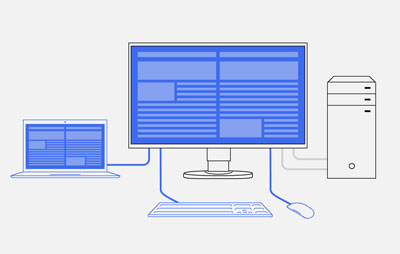

KVM switchIt has never been easier to operate different PCs with a single mouse and keyboard. Thanks to the USB upstream ports, the CG2400SV has an integrated KVM (Keyboard Video Mouse) switch. The monitor automatically links the webcam, microphone, speakers, mouse and keyboard to the currently active source computer. This means, for example, that a desktop PC and laptop or business and private PC can each be operated on the same combination of monitor USB devices. This ensures uninterrupted working and a tidy workspace.
Ergonomics
Height155 mm

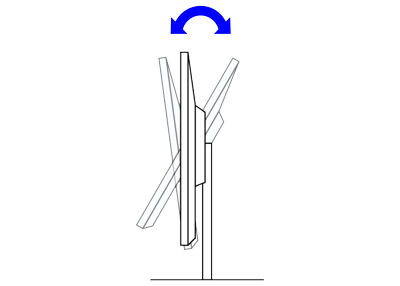

TiltBetween 5° forwards and 35° backwards
Swivel344°
Rotationclockwise
Flicker freeThe monitor is flicker-free at every brightness setting. This is great for users, as their eyes will not tire as quickly, allowing them to work in front of the screen for longer periods of time without fatigue.
Ergonomic standOur screens offer continuous height adjustment. Depending on the model, they can even be lowered to the base plate of the stand. This guarantees the best possible ergonomics, regardless of whether the user is sitting or standing in front of the screen. You can also swivel, rotate and tilt the monitor base to the position that is most comfortable for your posture.
More image, less reflectionThe CG2400SV offers a perfect, non-glare surface. By minimising glare by diffusing the reflected light, the CG2400SV effectively protects your eyes from straining. This keeps your eyes from getting as tired and allows you to sit comfortably in front of the monitor, without having to sit in a forced position to prevent glare.
Customised key assignmentDepending on the model, up to two sensor buttons on the front can be assigned functions from the on-screen menu. The advantage: you have direct access to frequently used features.

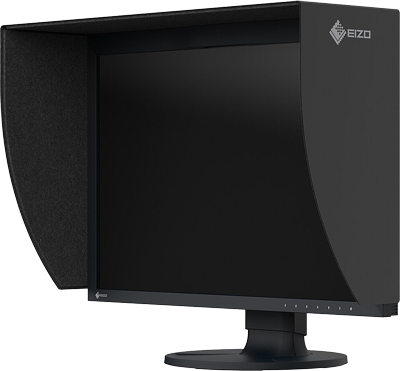

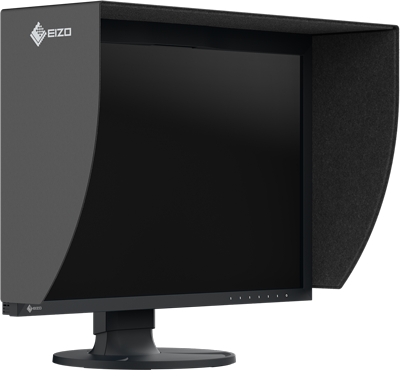

Monitor hoodThe monitor hood reduces reflection and brightness on the screen and helps protect your eyes. It is easy to attach and reduces the amount of light that hits the screen from above and from the sides.
Environmentally And Socially Conscious Production
Sustainable and durableThe CG2400SV is designed for a long service life that takes into account the entire lifecycle and impact on the environment. It is generally well above the five-year guarantee. Spare parts are available up to five years after the end of production. The monitor’s long service life and the ability to repair it save resources and the climate. When designing the CG2400SV we paid attention to reducing resource consumption by using high-quality components and materials and being meticulous in production.

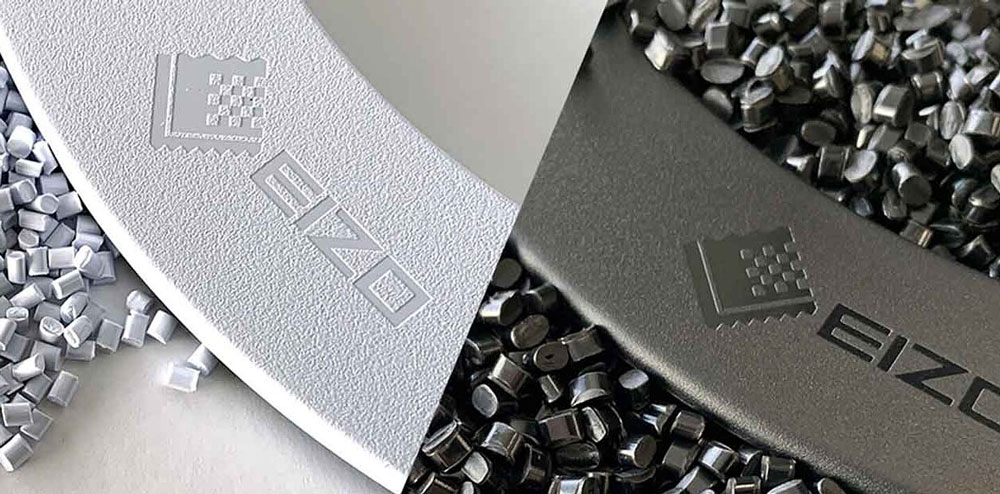

Environmentally conscious use of materialsThe CG2400SV is made of more than 85% recycled plastic. This reduces the amount of plastic waste entering the environment, conserves resources and promotes the reuse of materials. Reducing the use of volatile organic compounds (VOCs) in material production, such as those found in certain paints and varnishes, is also of global interest. Through years of research, EIZO has succeeded in achieving a smooth, nearly homogeneous color and texture in its monitor housings without the use of varnish.

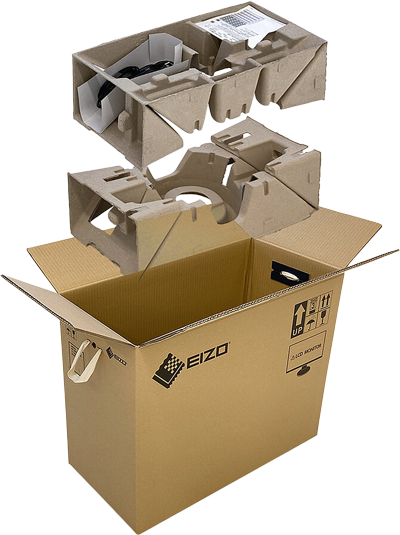

Cushioning environmental impactFor the packaging of the CG2400SV, EIZO uses a padding made of moulded pulp cellulose. The material is made from recycled cardboard and paper and has a much lower environmental impact when disposed of than traditional polystyrene or plastic. All cables are stored in a cardboard compartment instead of being individually packed in plastic bags.
Socially responsible productionThe CG2400SV is produced in a socially responsible way. It is free of child labour and forced labour. Suppliers along the supply chain have been carefully selected and they have also committed themselves to produce in a socially responsible way. This applies in particular to conflict minerals. We present a detailed report about our social responsibility annually and voluntarily.
Each CG2400SV is manufactured in our own factory, which implements an environmental and energy management system in accordance with ISO 14001 und ISO 50001. This includes measures to reduce waste, wastewater and emissions, resource and energy consumption, as well as to encourage environmentally conscious behavior among employees. We publicly report on these measures on an annual basis.
