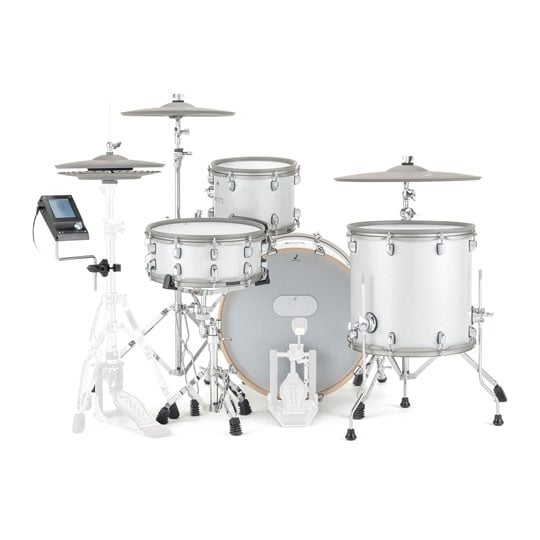

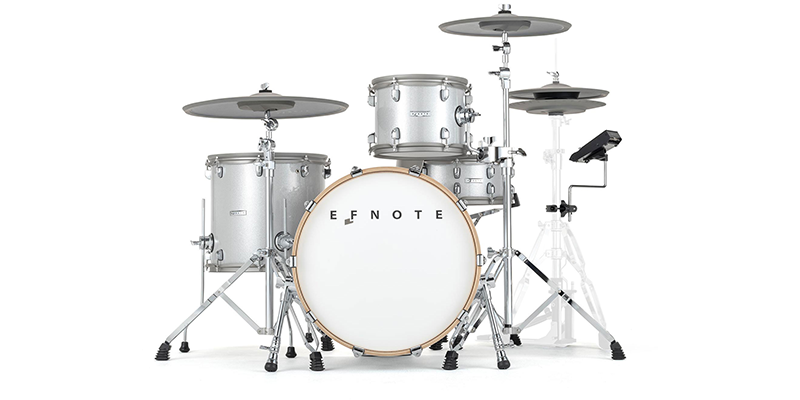

EFNOTE 7 Electronic Drum Kit

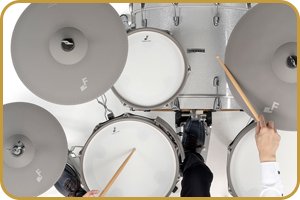

Pure Drums, Pure SoundsBrand new playing experience with full scale shells/cymbals. Reproduces raw drum sounds and ambient perfectly. 360° flat sensing with multi-sensor technology. Player centric design.

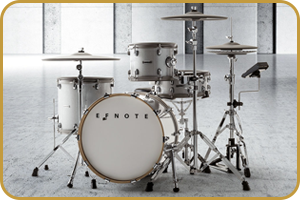

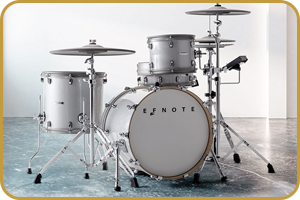

Authentic PresenceProves your musicality to the audience on stage. Pure white sparkle finish that shines in the spotlight. Realistic swaying of full-sized cymbals that visualize its sound.

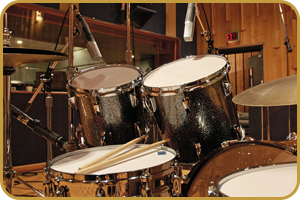

Portrays Textures of Vintage DrumsGood old collector's drum sets are newly recorded for EFNOTE 7/7X. Contains attack and eKick elements that can be layered to enhance the sound. Dedicated remastered acoustic drum sounds.

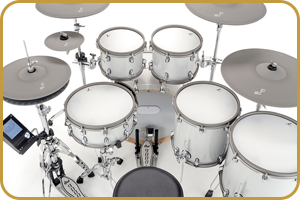

Expandability for Customized SetupBasic setup for flexible expansion based on your music style.

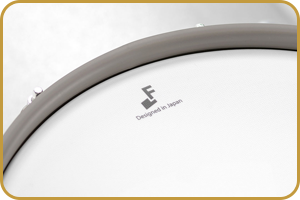

9-Sensor Snare Drum14 x 5.5", 10 lugs, birch wood shell, 2ply mesh drum head. Multi-sensor for hotspotless and high-resolution sounding. High head tension tuning available. Wide and adjustable side-rim.

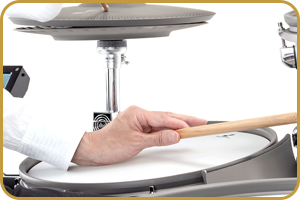

Independent Side-RimEasy, intuitive and reliable. No switch operation required. Elegant arc desig.

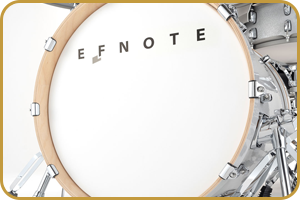

20" Kick, Unwavering Confidence20 x 15", 10 lugs, birch wood shell, 2ply mesh drum head. Props the whole set at the center of stage. Stable multi sensing for single/double beater(s).

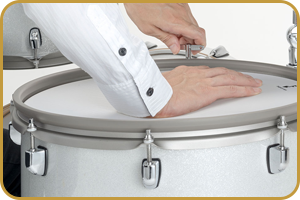

15" Floor Tom with Realistic Touch15 x 15", 8 lugs, birch wood shell, 2ply mesh drum head. Multi-sensor for hotspotless and high-resolution sounding. Low-rebound 2ply mesh drum head. Low head tension tuning available.

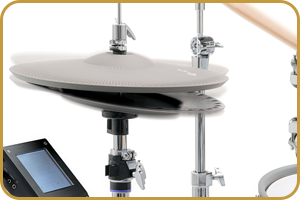

Finest Hi-Hat Cymbals14" top/bottom cymbals. World's first multi-optical sensing to capture the motions in 3D. Tru-Motion™ technology for expressiveness leap. 360° free-swinging top/bottom cymbal design.

20" Ride Is Here!The 20" diameter provides slow wobbling of edge and the quick response of bow/cup. Multi-sensored 360° play/choke area. 360° free-swinging design. Responsive thin edge. Hammered texture surface.

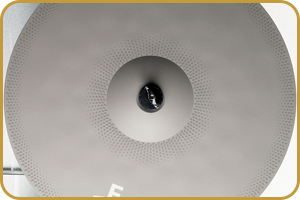

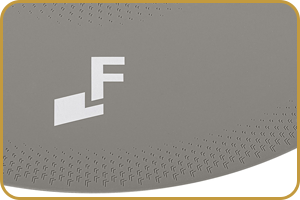

Beautiful Cymbal SurfaceElegant warm-gray surface with fine engravings. Clean silicone rubber surface that is resistant to drumstick marks.

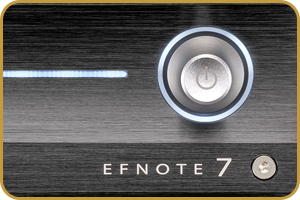

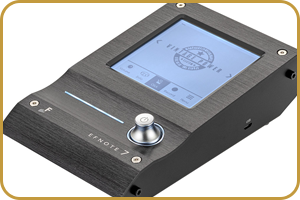

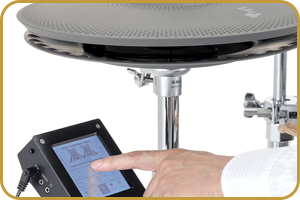

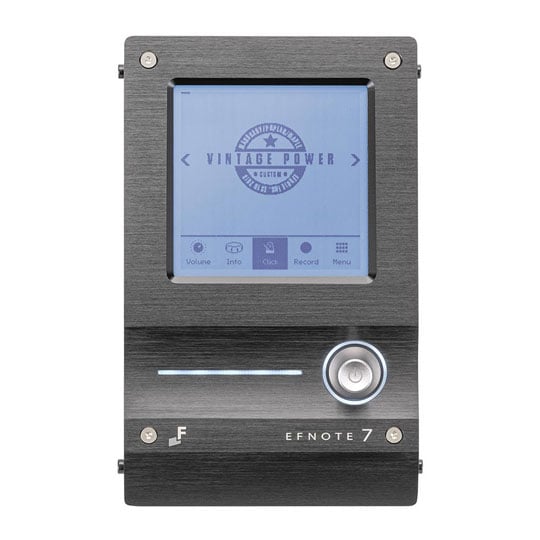

Ultra-Compact Sound ModuleUltra-small form factor with uncompromised features. Metal chassis and aluminum finish. High quality DAC and audio circuit. High power headphone amplifier. Touch screen intuitive user interface.

ELISE™ Sensing ProcessorCapturing drummer's intentions from each stroke. Low latency, wide dynamic-range, consistent and stable sensing. Optimized for EFNOTE multi-sensor drum/cymbal/hi-hat pads.

Full-Scale Acoustic SoundFull stereo acoustic drum/cymbal samples recorded by EFNOTE. Tru-Aco™ sound technology provides real drum/cymbal sound behaviors. Raw sound without resynthesis.

For TrainingMulti-function metronome with beat LED indicator. Built-in metronome speaker for daily training without headphones. On-board drum recording function (15 tracks). Stroke Analyzer. Rhythm Box feature provides over 90 basic drum beats.

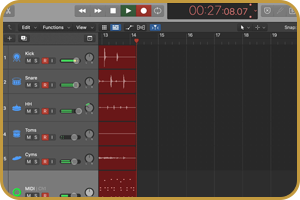

For RecordingUSB 8-ch individual audio outputs with Mac / Windows (ASIO). USB 2-ch audio inputs for playback. AnalogUE 4-ch audio outputs. USB MIDI in/out with individual MIDI channels. MIDI output (5-pin DIN).

For Small GigsSetlist feature enables you to configure kit order with tempo for each song. Kick and Snare can be output individually with analog 4-ch outputs. Click and Audio-In can be assigned only for headphones. High-power headphones output. MIDI output (5-pin DIN).

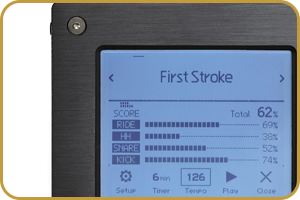

Stroke Analyzer"Stroke Scope" displays your strike points on time-line. "Accuracy Score" estimates your strike accuracy.

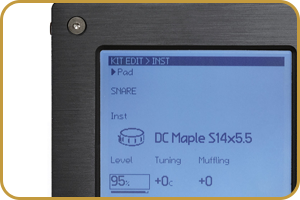

Sound EditTuning, Muffling, 2-band EQs for each pad. Pad layer function can overlay two sounds. User Inst Library enables you to store 128 customized instruments. On-board reverb. Dedicated level control screen.

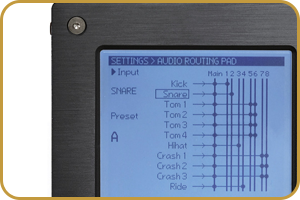

Flexible Audio Routing10-ch output buses. Flexible output routing for each pad. Output assignable click. Output: 4-ch analogUE / 8-ch USB. Input: AnalogUE / Bluetooth / 2-ch USB.

BluetoothBluetooth audio-in provides you to play along with Spotify™ / YouTube™ with your smartphone. Bluetooth MIDI. EFNOTE Tools App for control remotely.

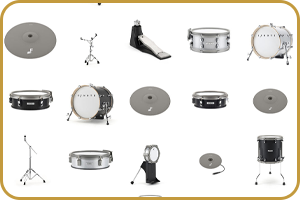

Various Optional ComponentsFull compatible various Optional Components. Off-the-shelf drum hardware available.

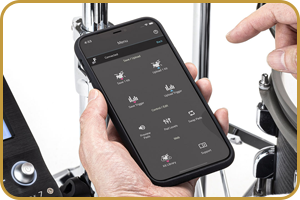

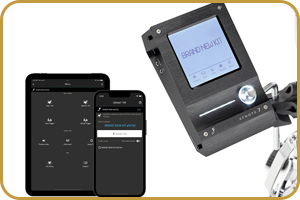

Carry Data with YouYou can backup, restore, and share drum kit data and trigger settings with your smartphone.

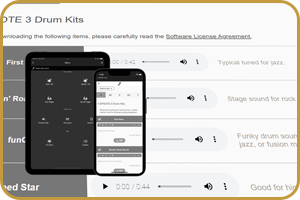

Get New Drum KitsVisit the official Kit Library to get the new drum kit data. There you will surely find ideas that inspire your creativity.

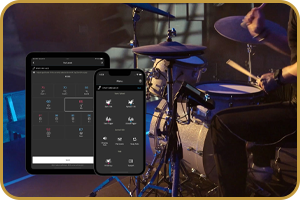

Adjust RemotelyFor small gigs, drummers often cannot rely on FOH engineers. Now you can remotely adjust the each pad level while playing back your beat with the built-in recorder.

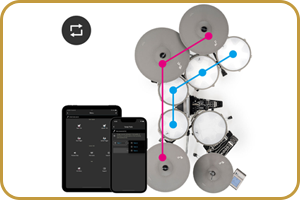

Swap SoundsThe Swap feature makes it easy to swap each sound of toms or cymbals. It helps you changing the set up and editing kits.
