5X Electronic Drum Kit
EFNOTE - EST-5XKITE

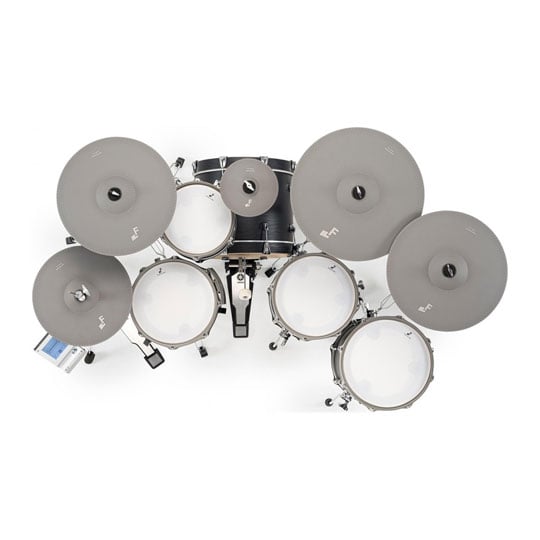

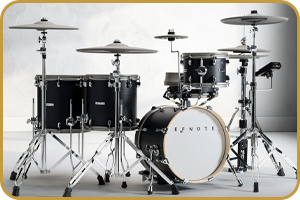

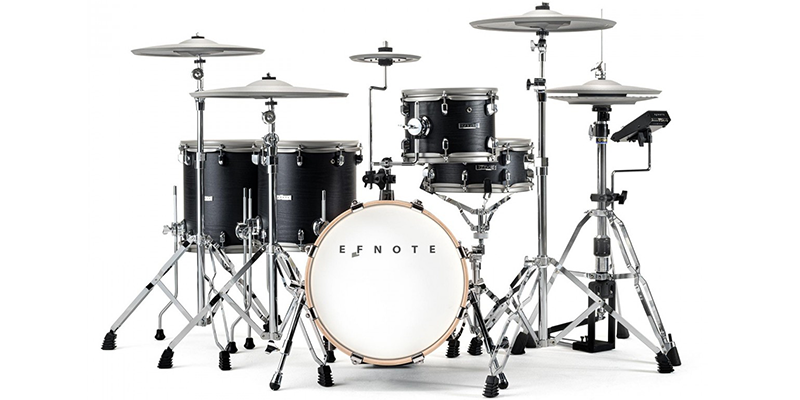

The Complete ExperienceThe EFNOTE 5X Electronic Drum Kit comes as a 5-piece kit in a stunning black oak-ish finish, with hi-hat, 2x crash cymbals, a ride cymbal and a splash cymbal. This kit is designed to reproduce the sound and feel of an acoustic kit, while keeping all the benefits of an electronic kit. All the full stereo acoustic drum/cymbal samples are recorded and mastered by EFNOTE themselves. The included sound module features a touch screen user interface with a high quality DAC and audio circuit and high power headphone amplifier. Equipped for the studio and live, you get plenty of recording, practice and performance features for you to immerse yourself in and take your drum journey to the next level.
Amazing Features
• 5-piece shell and 5-piece cymbal set
• Drum module with aluminium housing
• LCD touch screen
• 111 multilayer sounds
• 16 preset kits, 34 user kits
• Metronome
• Onboard Recording & Rhythm Box
• 50 recording user songs
• Built-in 8 Out / 2 In USB audio interface
• Bluetooth and USB for MIDI In/Out
• MIDI Out
• 3.5 mm jack stereo headphone output
• Bluetooth receiver
Please note: Items shown in the photos such as kick pedal, hi-hat stand, drum throne, sticks, headphones, smartphone and computer are not included.
FREE Korg - NC-Q1 Headphones!
a new era in headphone monitoringIncluded with your purchase of this EFNOTE drumkit is a completely FREE pair of Korg's superb NC-Q1 headphones! Every musician knows that his or her most important tools for any performance are … your ears! Hence why Korg have spent years upon years researching the environments where musicians and performers – especially DJs – monitor their audio with the aim of developing an entire new level in headphones which brings together a unique blend of features to bring forth a seamlessly integrated and safe DJ experience.
To find out more about these headphones just click here
3.5HrsCharge time
10Hz - 25kHzFrequency response
36HrsRuntime
at a glance
• High definition sound
• Active Noise Cancelling
• Comfortable Design with memory foam cushions
• Smart monitoring and sound enhancing features
• Bluetooth ready

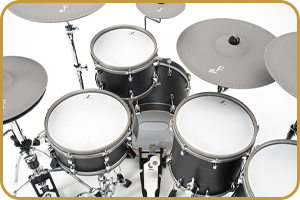

EFNOTE 5X
Complete Compact StyleSpecially full-expanded based on EFNOTE 5. 5-piece shell and 5-piece cymbal set. Sleek black oak-ish finish. Player centric design.
Playability and MusicalityRedefines compact drums by the completed playability. Pre-expanded for adapting to a variety of musical styles. 360° flat sensing with multi-sensor technology.
Specializes in AcousticBeautiful acoustic drum sounds. 99% capacity is used for acoustic drum sound. Includes rich ambient that reinforces the drum sound.

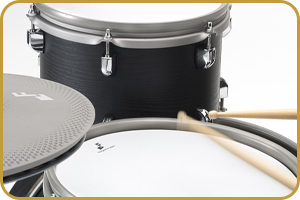

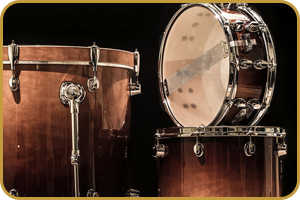

7-Sensor Snare Drum12 x 5", 8 lugs, birch wood shell, 2ply mesh drum head. Multi-sensor for hotspotless and high-resolution sounding. High head tension tuning available.

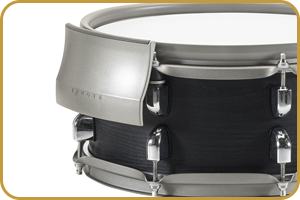

Independent Side-RimEasy, intuitive and reliable. No switch operation required. Elegant arc design.

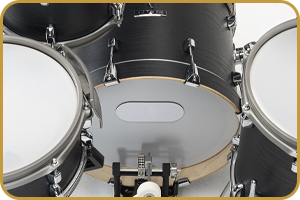

16" Kick, More Than the Size16 x 12", 8 lugs, birch wood shell, 2ply mesh drum head. Comfortable feeling and stability over its size. Stable multi-sensing for single/double beater(s).

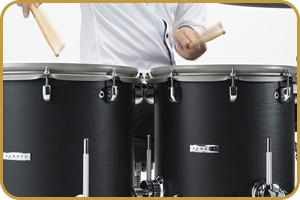

Two Floor Toms12 x 12", 8 lugs / 13 x 13", 8 lugs. Birch wood shells, 2ply mesh drum heads. Multi-sensor for hotspotless and high-resolution sounding. Low head tension tuning available.

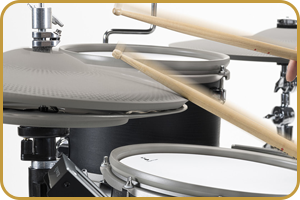

Finest Hi-Hat Cymbals14" top/bottom cymbals. World's first multi-optical sensing to capture the motions in 3D. Tru-Motion™ technology for expressiveness leap. 360° free-swinging top/bottom cymbal design.
Full Size Cymbals2x 16" crash cymbal, 3-zone (Bow/Edge/Cup). 1x 18" ride cymbal, 3-zone (Bow/Edge/Cup). Multi-sensored 360° play/choke area. 360° free-swinging design. Responsive thin edge.

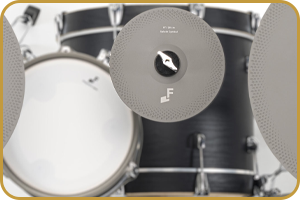

Splash!8", 2-zone (Bow/Edge). Ultra thin and light weight design. Multi-sensored 360° play/choke area. 360° free-swinging design. Responsive thin edge.

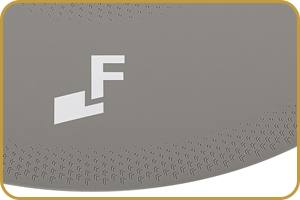

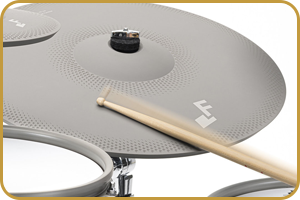

Beautiful Cymbal SurfaceElegant warm-gray surface with fine engravings. Clean silicone rubber surface that is resistant to drumstick marks.
Sound Module

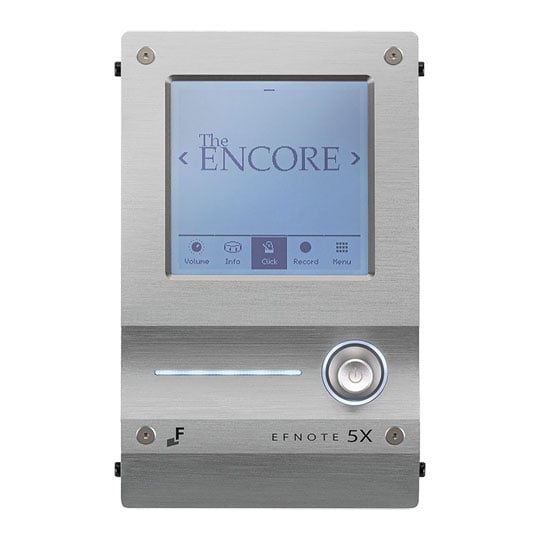

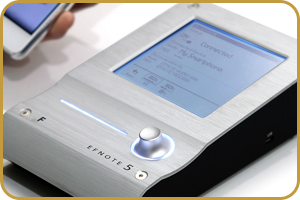

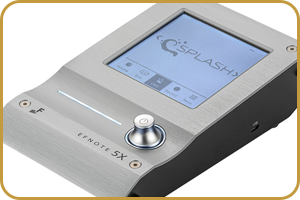

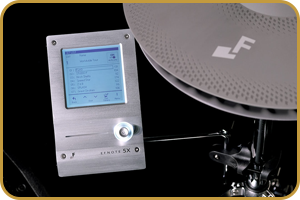

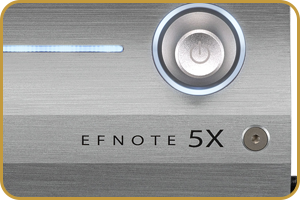

Ultra-Compact Sound ModuleUltra-small form factor with uncompromised features. Metal chassis and aluminum finish. High quality DAC and audio circuit. High power headphone amplifier. Touch screen intuitive user interface.
ELISE™ Sensing ProcessorCapturing drummer's intentions from each stroke. Low latency, wide dynamic-range, consistent and stable sensing. Optimized for EFNOTE multi-sensor drum/cymbal/hi-hat pads.
Full-Scale Acoustic SoundFull stereo acoustic drum/cymbal samples recorded by EFNOTE. Tru-Aco™ sound technology provides real drum/cymbal sound behaviors. Raw sound without resynthesis.
For TrainingMulti-function metronome with beat LED indicator. Built-in metronome speaker for daily training without headphones. On-board drum recording function (15 tracks). Stroke Analyzer. Rhythm Box feature provides over 90 basic drum beats.
For RecordingUSB 8-ch individual audio outputs with Mac / Windows (ASIO). USB 2-ch audio inputs for playback. Analogue 4-ch audio outputs. USB MIDI in/out with individual MIDI channels. MIDI output (5-pin DIN).
For Small GigsSetlist feature enables you to configure kit order with tempo for each song. Kick and Snare can be output individually with analogue 4-ch outputs. Click and Audio-In can be assigned only for headphones. High-power headphones output.MIDI output (5-pin DIN).
Stroke Analyzer"Stroke Scope" displays your strike points on time-line. "Accuracy Score" estimates your strike accuracy.
Sound EditTuning, Muffling, 2-band EQs for each pad. Pad layer function can overlay two sounds. User Inst Library enables you to store 128 customized instruments. On-board reverb. Dedicated level control screen.
Flexible Audio Routing10-ch output buses. Flexible output routing for each pad. Output assignable click. Output: 4-ch analogue / 8-ch USB. Input: Analogue / Bluetooth / 2-ch USB.
BluetoothBluetooth audio-in provides you to play along with Spotify™ / YouTube™ with your smartphone. Bluetooth MIDI. EFNOTE Tools App for remote control.
Various Optional ComponentsFull compatible various Optional Components. Off-the-shelf drum hardware available.
EFNOTE Tools AppBackup, restore, and share your favourite drum kits with your smartphone. Visit the official Kit Library to get new drum kits. Sound level balance can be adjusted remotely.
The Tech Spec
| Features | Specification |
|---|---|
| Drum Kit | EFD-K1612 (Kick) | Size: 16 x 12" Finish: Black Oak-ish Zone: Head Sensor: Multi Head: Double-layered mesh with beater patch Connector: Head (TRS Phones) Features:Bass drum riser, Wood hoop |
| EFD-S1250 (Snare) | Size: 12 x 5" Finish: Black Oak-ish Zone: Head / Rim / Side-Rim Sensor: Multi Head: Double-layered mesh Connector: Head/Rim, Side-Rim (2x TRS Phones) Features: Birch shell, Colored hoop rubber, Side-Rim |
| EFD-T1070 (Tom) | Size: 10 x 7" Finish: Black Oak-ish Zone: Head / Rim Sensor: Multi Head: Double-layered mesh Connector: Head/Rim (TRS Phones) Features: Birch shell, Colored hoop rubber |
| EFD-T1212 (Floor Tom 1) | Size: 12 x 12" Finish: Black Oak-ish Zone: Head / Rim Sensor: Multi Head: Double-layered mesh Connector: Head/Rim (TRS Phones) Features: Birch shell, Colored hoop rubber |
| EFD-T1313 (Floor Tom 2) | Size: 13 x 13" Finish: Black Oak-ish Zone: Head / Rim Sensor: Multi Head: Double-layered mesh Connector: Head/Rim (TRS Phones) Features: Birch shell, Colored hoop rubber |
| EFD-H14 (Hi-Hat) | Size: 14" (Top/Bottom) Colour: Warm gray Zone: Bow / Edge / Cup Sensor: Multi (360° flat sensing + choke) / Optical Connector: 6-pin Features: Multi-optical sensor, Tru-motion™ hi-hat, Weight simulation, Fine engraved surface General hi-hat stands compatible with φ12.7 mm (1/2") hole cymbal can be used. |
| EFD-C16 (Crash 1/2) | Size: 16" Colour: Warm gray Zone: Bow / Edge / Cup Sensor: Multi (360° flat sensing + choke) Connector: Bow/Edge, Cup (2x TRS Phones) Features: Weight simulation, Fine engraved surface |
| EFD-C18 (Ride) | Size: 18" Color: Warm gray Zone: Bow / Edge / Cup Sensor: Multi (360° flat sensing + choke) Connector: Bow/Edge, Cup (2x TRS Phones) Features: Weight simulation, Fine engraved surface |
| EFD-C08 (Splash) | Size: 8" Color: Warm gray Zone: Bow / Edge Sensor: Multi (360° flat sensing + choke) Connector: Bow/Edge (TRS Phones) Features: Weight simulation, Fine engraved surface |
| EFD-5X Sound Module | |
| Trigger Interface | 3-Zone: Snare, Crash 1/2*, Ride 2-Zone: Tom 1/2/3/4, HH, Crash 3 1-Zone: Kick |
| Audio / MIDI Interface | Line (1/2) Output: 2x TS Phone (+4dBu, Unbalanced) Phones (3/4) Output: Stereo Mini-Phone (320 mW + 320 mW @32Ω) Audio Input: Stereo Mini-Phone (+2dBu Max) USB: Micro-B Type USB 2.0 Hi-Speed Audio: 8-ch Out (48kHz/24bit) / 2-ch In (48kHz/16bit), Mac/Windows ASIO MIDI: In/Out Bluetooth Audio Input Bluetooth MIDI In/Out MIDI Out: 5-pin DIN |
| Drum Kits / Instruments | Preset Drum Kits: 17 (Editable) User Drum Kits: 83 Instruments: Acoustic Drums/Cymbals (Stereo), Percussion (Stereo), Attack Elements User Inst Library: 128 (Can be stored customized instruments) |
| Edit Parameters | Level, Pan, Tuning, Muffling (for each pad) 2-Band EQ (for each pad) Ambience Effect (8 types) Pad Layer |
| Dimensions | 106 (W) x 172 (D) x 47 (H) mm |
| Weight | 700g |
| Power | DC 12 V, 500 mA (Nominal) / 800 mA (Max) |
| Hardware | |
| Tom Holder | 1x Tom holder arm Geared L-rod tilter Knurled carbon steel rod L-rod diameter: φ11.5 mm (7/16") Tube diameter: φ22.2 mm (7/8") Height adjustment range: 700 -- 900 mm |
| Splash Cymbal Arm | 1x Z-rod short 1x Z-rod long |
| Sound Module Arm | 1x Sound module arm 1x Smartphone tray |
| Accessories | Brake-Out Cable: EFD-MULTI-A-X Brake-Out Cable: EFD-MULTI-B 4x Trigger Cable 3.0 m: EFD-TRS-LL3 Cable Ties Quickstart Guide |
