ECS LIVA Z2 Pentium Barebone Compact Mini PC Kit

ECS LIVA Z2, Intel Pentium N5030, 64GB eMMC, DDR4 SO-DIMM, 3x USB Type-A, USB Type-C, 2x USB 2.0, GbE, 2x HDMI,Barebones

Thumbnail 1 : ECS LIVA Z2 Pentium Barebone Compact Mini PC Kit Thumbnail 2 : ECS LIVA Z2 Pentium Barebone Compact Mini PC Kit Thumbnail 3 : ECS LIVA Z2 Pentium Barebone Compact Mini PC Kit Thumbnail 4 : ECS LIVA Z2 Pentium Barebone Compact Mini PC Kit
Scan code: LN133826 Manufacturer code: 95-696-MH2240
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
Was: £189.98
Get it Tomorrow, 14 AprIn stock
From £15.40 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £15.40
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £169.99
Total inc. interest: £184.81
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 15th Apr to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Palm-Size PC

Smaller than a lunchbox and less volume than a large soda can, it is the smallest mini PC in its kind. With 0.8 liter case that still provides all the elements of a desktop-worthy PC

Quiet Operation with Fanless Design

With completely cool, fanless design. It prevents the attraction of dust preventing overheating issues and also reduces malfunctions and increases the life-cycle of your mini PC.

Energy Efficient for Power Saving

We keeps the environment in mind, and delivers incredible energy efficiency thanks to an ultra-low power design that draws as little as 6W at idle- as much as a light bulb.

For All Your Devices with Type-C Connect

It delivers data transfer speeds up to 5x faster than older USB 2.0 connections! With reversible USB Type-C™ connector design that makes connecting devices simple and quick.

Easily Connect to a Wide Variety of Devices

With complete I/O design ,especially features five easily accessible USB ports, including one reversible USB 3.1 Gen1 Type-C port. It also has variety video output HDMI 1.4 and HDMI 2.0 option. In addition, it has the latest 802.11ac Wi-Fi and a Kensington lock.

Ultra-Compact PC with Dual-Storage Design

With features 64GB eMMC + 2.5" HDD dual storage design. It offers eMMC 5.1 & high-capacity HDD support. And with Windows 10 built-in OneDrive, it's easy to connect the local storage and cloud backup to have the best of both worlds.

The Best 4K Visuals with HDMI 2.0

Featuring Intel HD 600 series integrated graphic, it supports revised video engine, playing 4K video smoothly and give you ultra-realistic visuals with HDMI 2.0 video output.

Easy to Upgrade

If you want to upgrade your mini PC ,all need you have to is remove 4 screws at the bottom cover to gain access and replace the M.2 WiFi, memory modules and 2.5" HDD storage slots. It's just that simple.


• Intel® Pentium® N5030 SoC.
• 64GB eMMC.
• 2 x SO-DIMM DDR4 up to 8GB.
• Support 1 x eMMC 32GB/64GB, Support 1 x 2.5" HDD.
• 3x USB 3.1 Gen 1 (Type A), 1x USB 3.1 Gen 1 (Type C), 2x USB 2.0, 1x Audio Jack (Combo), 1x Digital Mic, 1x DC_IN, 1x GbE LAN, 2x HDMI.
• 802.11ac Wireless Connectivity.

Edition LIVA Z2
Form Factor mini PC
CPU Included Yes
CPU Type Intel Pentium Silver
CPU Model N5030
Architecture Gemini Lake
Manufacturing Process 14 nm
Unlocked CPU No
Core Quad Core
No. of Threads 4
Clock Speed 1.1 GHz
Burst Frequency 3.1 GHz
CPU Cache 4MB
CPU Cooler
Max. TDP 6 W
CPU Socket N/A
Chipset N/A
Motherboard Form Factor
Motherboard Model
Memory Type DDR4 SO-DIMM
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz)
Max. Memory Capacity 8GB
On-board/Integrated Graphics No
Processor/Motherboard Graphics Chip N/A
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface N/A
Expansion Slots N/A
HDD Storage Included No
HDD Storage Type
HDD Storage Capacity N/A
SSD Storage Included Yes
SSD Storage Type eMMC
SSD Storage Capacity 64
Optical Drive None
Drive Bays 1 x 2.5" Internal
Backplane I/O
RAID Support
Internal I/O 1 x Wireless LAN Module
Network Interface Type
  • 802.11ax Wi-Fi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Gigabit LAN

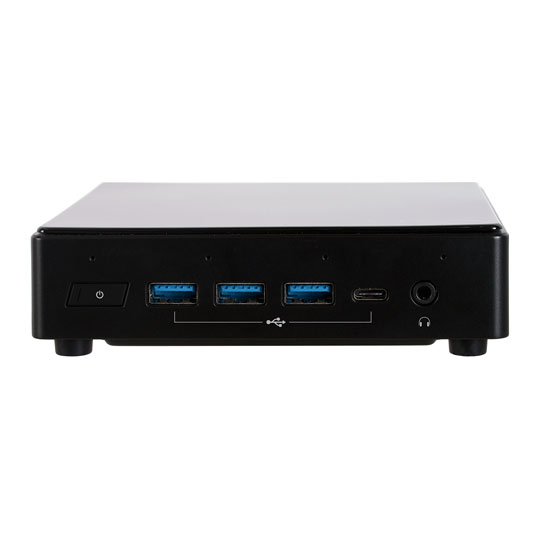

Front Panel
  • 1 x Headphone/Mic Combo
  • 1 x Power Button
  • 3 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen1 Type-C

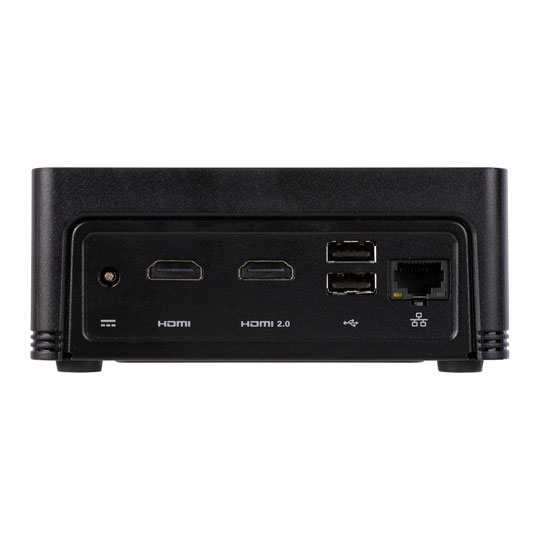

Back Panel
  • 1 x 10/100/1000 (LAN)
  • 1 x DC-In Jack
  • 1 x HDMI 1.4
  • 1 x HDMI 2.0
  • 1 x Mini DisplayPort
  • 2 x USB 2.0
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage 65 W
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour Black
Dimensions 132 x 118 x 56.4 mm (mm WxHxD)
Additional Information
Scan Code LN133826
Model Number 95-696-MH2240
GTIN 4711064007985
