ECS LIVA Q3 PLUS AMD Ryzen Barebone Ultra Compact Mini PC Kit
ECS LIVA Q3 PLUS AMD Ryzen Barebone Ultra Compact Mini PC Kit
Scan code: LN133827 Manufacturer code: 95-677-MZ6A05
£209.99
Get it Tomorrow, 19 MayIn stock
  • Thumbnail 1 : ECS LIVA Q3 PLUS AMD Ryzen Barebone Ultra Compact Mini PC Kit
  • Thumbnail 2 : ECS LIVA Q3 PLUS AMD Ryzen Barebone Ultra Compact Mini PC Kit
  • Thumbnail 3 : ECS LIVA Q3 PLUS AMD Ryzen Barebone Ultra Compact Mini PC Kit
  • Thumbnail 4 : ECS LIVA Q3 PLUS AMD Ryzen Barebone Ultra Compact Mini PC Kit

ECS LIVA Q3 PLUS AMD Ryzen Barebone Ultra Compact Mini PC Kit

ECS LIVA Q3 PLUS, AMD Ryzen R1505G, Vega 3 Graphics, 4GB DDR4, 2x USB 3.2 Gen2, 1x USB 2.0, GbE, HDMI/mDP, Barebones

Scan code: LN133827 Manufacturer code: 95-677-MZ6A05
£209.99
Free delivery on this item
Order now and get it tomorrow, Mon 19th May
Get it Tomorrow, 19 MayIn stock
Pay in 3 interest-free payments of £70.00

Email me when the availability or price changes

  • By DPD On 19th May Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.
Product Overview

Small Outside, Powerful Inside

Smaller than a mouse, LIVA Q3 Plus features the AMD Ryzen Embedded R1505G APU. The R1505G is a 2-core/4-thread SoC with 15W thermal design power (TDP) and incredible performance that sets a new standard in processing power for next-generation embedded designs.


See More, Do More

LIVA Q3 Plus supports up to 2 independent displays through its HDMI/ mini DisplayPort. Giving you the flexibility to expand the desktop workspace and multitask on two displays without any limitation.


Stay Cool and Reliable

In spite of its compact dimensions, LIVA Q3 Plus designs to feature an internal cooling fan to prevent overheating. It can keep your system stay cool and more reliable.


Micro SD Slot for Extend Storage

LIVA Q3 Plus offers best C/P Micro SD extend storage solution, you can easily have big space to storage your treasure photos and movies.


Features


• AMD Ryzen™ Embedded R1505G.
• 64GB eMMC.
• 4GB on board memory.
• 1 x DC-in, 1 x GIGA LAN, 1 x HDMI-out (2.0), 1 x mDP 1.4, 1 x USB 2.0, 2 x USB 3.2 Gen1, 1 x Micro SD Slot (Max. 128GB).
• Dual band WiFi 802.11 (ac/b/g/n)/BT4.1 module on board.

Specifications
Edition LIVA Q3 Plus
Form Factor mini PC
CPU Included Yes
CPU Type AMD Ryzen Embedded
CPU Model R1505G
Architecture Zen
Manufacturing Process
Unlocked CPU No
Core Dual Core
No. of Threads 4
Clock Speed 2.4 GHz
Burst Frequency 3.3 GHz
CPU Cache 4MB
CPU Cooler
TDP 15 W
CPU Socket N/A
Chipset N/A
Motherboard Form Factor
Motherboard Model
Memory Type DDR4
Memory Included Yes
Memory Capacity Included 4GB (Onboard)
Memory Edition
Memory Channels
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz)
Max. Memory Capacity 8GB (Onboard)
On-board/Integrated Graphics No
Processor/Motherboard Graphics Chip N/A
Discrete GPU Yes
Discrete GPU Chipset Radeon
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface N/A
Expansion Slots N/A
SATA N/A
HDD Storage Included No
HDD Storage Type
HDD Storage Capacity N/A
SSD Storage Included Yes
SSD Storage Type eMMC
SSD Storage Capacity 64
Optical Drive None
Drive Bays N/A
Backplane I/O
RAID Support
Internal I/O 1 x Wireless LAN Module
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x 802.11ac WiFi + BT4 Module
  • 1 x Gigabit LAN

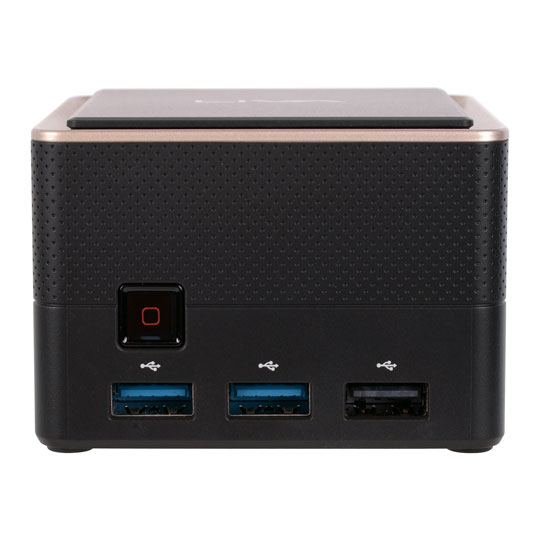

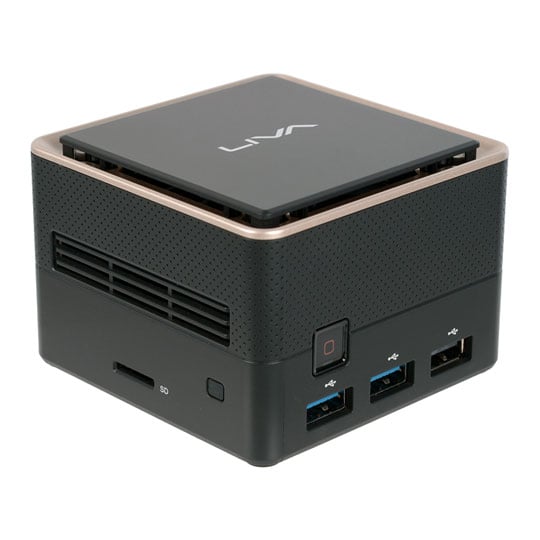

Front Panel
  • 1 x MicroSD Slot
  • 1 x Power Button
  • 1 x USB 2.0
  • 2 x USB 3.2 Gen2 Type-A

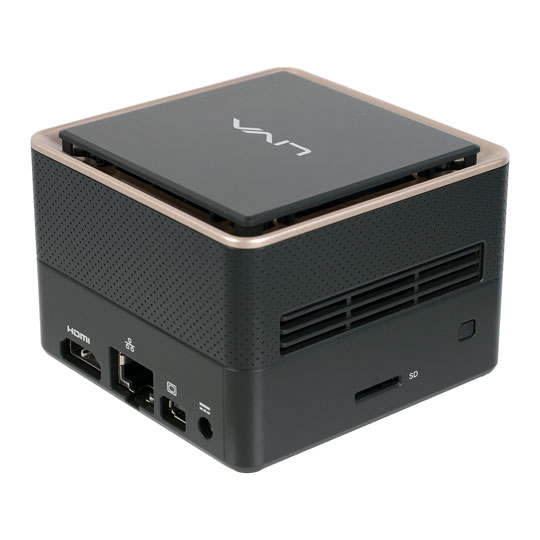

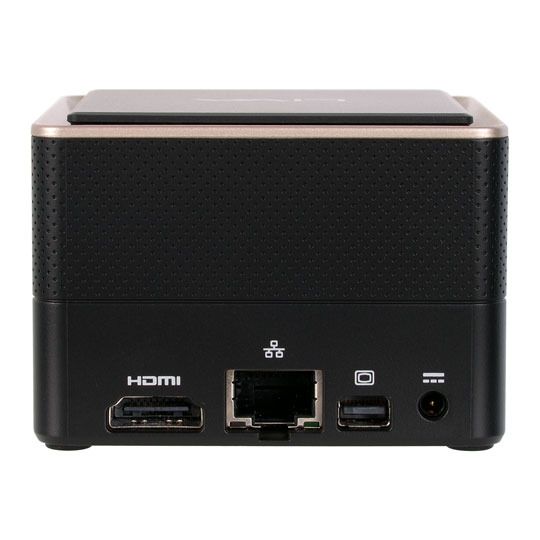

Back Panel
  • 1 x 10/100/1000 (LAN)
  • 1 x DC-In Jack
  • 1 x HDMI 2.0
  • 1 x Mini DisplayPort 1.4
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable Yes
PSU Wattage
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour Black
Dimensions 74 x 74 x 52.1 mm (mm WxHxD)
Weight 359 kg
Includes
Notes
Additional Information
Scan Code LN133827
Model Number 95-677-MZ6A05
GTIN 4711064006094
