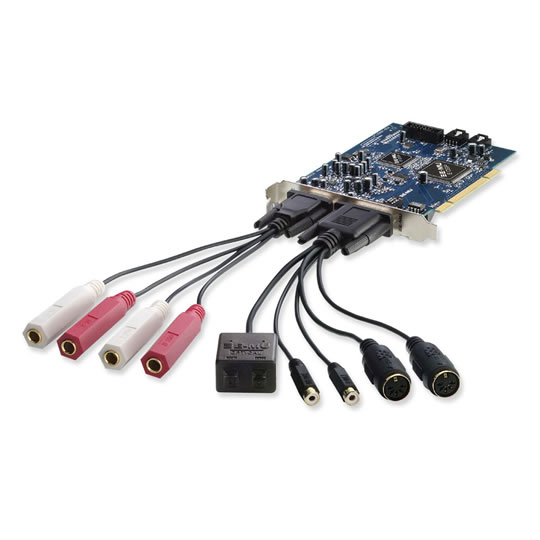

E-MU 0404 PCIe - Digital Audio System
Scan code: LN38440
Manufacturer code: 0404PCIE
End Of Life
Product Overview
The E-MU® 0404 PCIe Digital Audio System delivers everything you need to produce audio on a PC at a breakthrough price.
2 line level, unbalanced analog inputs, 2 line level, unbalanced analog outputs, plus MIDI input and output.
This is a finely-tuned audio interface, using high performance 24-bit/192kHz A/D - D/A converters to deliver an unbelievable 111dB of dynamic range.
hardware-accelerated effects and mixing
The PCIe card contains a powerful hardware DSP processor which allows you to use over 16 simultaneous hardware-based effects, which place minimal load on your computer’s CPU.
The E-MU 0404 PCIe Card also provides a S/PDIF stereo digital input and output with either optical or coaxial connections.
A built-in MIDI interface allows you to connect external MIDI instruments or keyboards directly to your computer.
The PatchMix DSP mixer application is included in all the systems.
PatchMix DSP delivers unmatched flexibility in routing your audio between physical inputs and outputs, virtual (ASIO) inputs and outputs and internal hardware effects and buses—no external mixer needed.
You can add digital effects, EQs, meters, level controls and ASIO sends anywhere you like in the signal chain.
Because the effects and mixing are hardware-based, there is no latency when you record.
You can even record a dry signal while monitoring yourself with effects!
Mixer setups can be saved and instantly recalled for specific purposes such as recording, mixdown, special effect setups or general computer use.
The E-MU 0404 Digital Audio System offers seamless compatibility with your favourite PC audio/sequencer software, providing you with professional sound quality and powerful DSP an affordable price.
Manual
Features Premium 24-bit/192kHz converters
111dB signal-to-noise ratio A/D converters and 116dB signal-to-noise ratio D/A converters for pristine recording and playback of your tracks
Hardware-accelerated effects
over 600 standalone E-MU plug-in effects for use in PatchMix with no CPU overhead
PatchMix™ DSP zero-latency hardware mixing and monitoring
with super-flexible patchbay - no external mixer needed
Comprehensive analog and digital I/O plus MIDI
two analog inputs, two analog outputs, optical/coaxial S/PDIF plus MIDI I/O
Compatibility with most popular audio/sequencer applications
ultra-low latency 24-bit/192kHz ASIO2, WDM and 64-bit drivers
E-MU Production Tools Software Bundle
includes Cakewalk SONAR LE 6.3, Steinberg Cubase 4 LE, Ableton Live Lite 6 E-MU Edition, IK Multimedia AmpliTube X-Gear, Celemony Melodyne essential,
Waldorf Attack, Waldorf D-Pole, Waldorf PPG Wave, SFX Machine LT, Creative EAX® ADVANCED HD™ Alchemy (Vista only), E-MU Proteus VX
- everything you need to create, record, edit, and master is in the box.
2 line level, unbalanced analog inputs, 2 line level, unbalanced analog outputs, plus MIDI input and output.
This is a finely-tuned audio interface, using high performance 24-bit/192kHz A/D - D/A converters to deliver an unbelievable 111dB of dynamic range.
hardware-accelerated effects and mixing
The PCIe card contains a powerful hardware DSP processor which allows you to use over 16 simultaneous hardware-based effects, which place minimal load on your computer’s CPU.
The E-MU 0404 PCIe Card also provides a S/PDIF stereo digital input and output with either optical or coaxial connections.
A built-in MIDI interface allows you to connect external MIDI instruments or keyboards directly to your computer.
The PatchMix DSP mixer application is included in all the systems.
PatchMix DSP delivers unmatched flexibility in routing your audio between physical inputs and outputs, virtual (ASIO) inputs and outputs and internal hardware effects and buses—no external mixer needed.
You can add digital effects, EQs, meters, level controls and ASIO sends anywhere you like in the signal chain.
Because the effects and mixing are hardware-based, there is no latency when you record.
You can even record a dry signal while monitoring yourself with effects!
Mixer setups can be saved and instantly recalled for specific purposes such as recording, mixdown, special effect setups or general computer use.
The E-MU 0404 Digital Audio System offers seamless compatibility with your favourite PC audio/sequencer software, providing you with professional sound quality and powerful DSP an affordable price.
Manual
Features Premium 24-bit/192kHz converters
111dB signal-to-noise ratio A/D converters and 116dB signal-to-noise ratio D/A converters for pristine recording and playback of your tracks
Hardware-accelerated effects
over 600 standalone E-MU plug-in effects for use in PatchMix with no CPU overhead
PatchMix™ DSP zero-latency hardware mixing and monitoring
with super-flexible patchbay - no external mixer needed
Comprehensive analog and digital I/O plus MIDI
two analog inputs, two analog outputs, optical/coaxial S/PDIF plus MIDI I/O
Compatibility with most popular audio/sequencer applications
ultra-low latency 24-bit/192kHz ASIO2, WDM and 64-bit drivers
E-MU Production Tools Software Bundle
includes Cakewalk SONAR LE 6.3, Steinberg Cubase 4 LE, Ableton Live Lite 6 E-MU Edition, IK Multimedia AmpliTube X-Gear, Celemony Melodyne essential,
Waldorf Attack, Waldorf D-Pole, Waldorf PPG Wave, SFX Machine LT, Creative EAX® ADVANCED HD™ Alchemy (Vista only), E-MU Proteus VX
- everything you need to create, record, edit, and master is in the box.
