Scan code: LN98615 Manufacturer code: A26

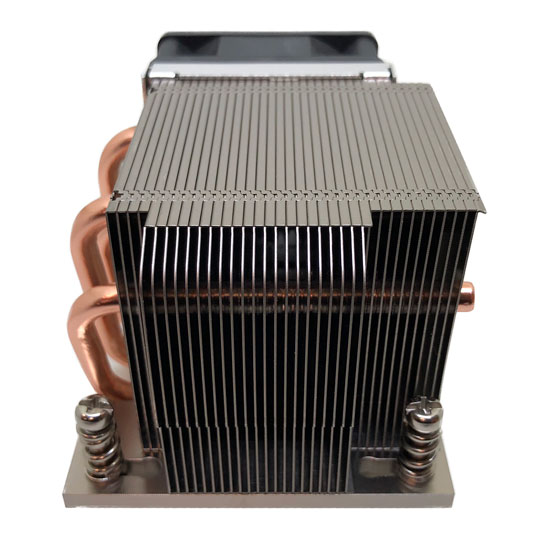

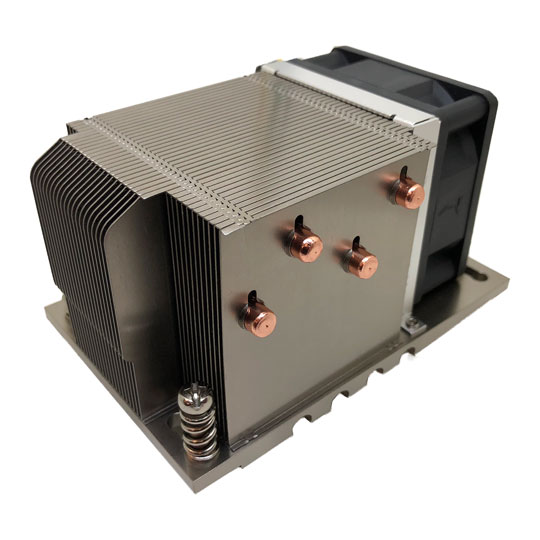

Dynatron A26 AMD Socket SP3/TR4/EPYC Active 2U Server Cooler

Dynatron A26 Active Cooler, AMD TR4/EPYC Processor Socket SP3, Side-Blower, 60mm PWM fan, For 2U Server

MORE INFO
MORE INFO
Thumbnail 1 : Dynatron A26 AMD Socket SP3/TR4/EPYC Active 2U Server Cooler Thumbnail 2 : Dynatron A26 AMD Socket SP3/TR4/EPYC Active 2U Server Cooler Thumbnail 3 : Dynatron A26 AMD Socket SP3/TR4/EPYC Active 2U Server Cooler Thumbnail 4 : Dynatron A26 AMD Socket SP3/TR4/EPYC Active 2U Server Cooler
Scan code: LN98615 Manufacturer code: A26
Order in the next 1 hr 41 mins and get it tomorrow
£39.98
Add To Basket
Get it Tomorrow, 27 MayIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 27th May to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview AMD EPYC Processor Socket SP3 Side-Blower 60x60x25mm PWM fan Cooler for 2U Server and Up. Features • CPU Support: AMD
• CPU Socket: SP3
• Weight: 450 g
• Material: Aluminum Heatsink with Heatpipe Embedded
• Solution: 2U Server and Up
• Dimensions: 119.0 x 79.0 x 65.0 mm
• Fan Dimension: 60 x 60 x 25 mm
• Rated Voltage: 12V
• Bearing: Ball Type, Double
• Speed:
- At Duty Cycle 20%: 1600 ± 200 RPM
- At Duty Cycle 50%: 4000 ± 10% RPM
- At Duty Cycle 100%: 8000 ± 10% RPM
• Power:
- At Duty Cycle 20%: 1.2 W
- At Duty Cycle 50%: 2.28 W
- At Duty Cycle 100%: 7.2 W
• Air Flow :
- At Duty Cycle 20%: 8.85 CFM
- At Duty Cycle 50%: 21.88 CFM
- At Duty Cycle 100%: 43.75 CFM
• Noise Level:
- At Duty Cycle 20%: 18 dBA
- At Duty Cycle 50%: 37.9 dBA
- At Duty Cycle 100%: 53 dBA
• Air Pressure:
- At Duty Cycle 20%: 0.76 mm-H2O
- At Duty Cycle 50%: 4.76 mm-H2O
- At Duty Cycle 100%: 19.04 mm-H2O
• Lead Wire Pin Out :
- Pin1- (-)
- Pin2- (+)
- Pin3- (Techometer/Signal output)
- Pin4- (PWM)
Specifications
Cooler Specifications
Edition A26
Cooler Form Factor Server
Heatpipes 4
Cooler Features
  • Aluminium Heatsink
  • Copper Heatpipes
Socket Compatibility SP3
Max. TDP 180W
Fan Specifications
Included Fan Configuration 1 x 60mm
Fan Edition
PWM Fan Yes
Fan Bearing Type Dual Ball Bearing
Fan Colour Black
LED Lighting
Fan/Pump Connectors
Max. Fan Speed 8000 +/- 10% rpm
Max. Fan Airflow 43.75 CFM
Max. Air Pressure 19.04 mm H²O
Max. Sound Level
Materials
Cooler Materials Aluminium
Included TIM (Thermal Interface Material) Included (Pre-Applied)
Dimensions & Weight
Heatsink/Radiator Dimensions
Total Dimensions 119 x 65 x79 mm (WxHxD)
Weight 450 g
Additional Information
Scan Code LN98615
Model Number A26
GTIN 855700001556
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871-472-4747

Missing information??

I was wondering about what is possibly the most important piece of information which is the one piece that isnt stated lol What is the rating for the amount of TDP this can handle? Because both the Epyc and Threadripper chips have quite a wide variance in the amount of power they use Cheers
Asked by: Ubermik
Thank you. The information has now been updated to include the TDP for the cooler.
Answered by: DavidScan
Date published: 2020-03-04
