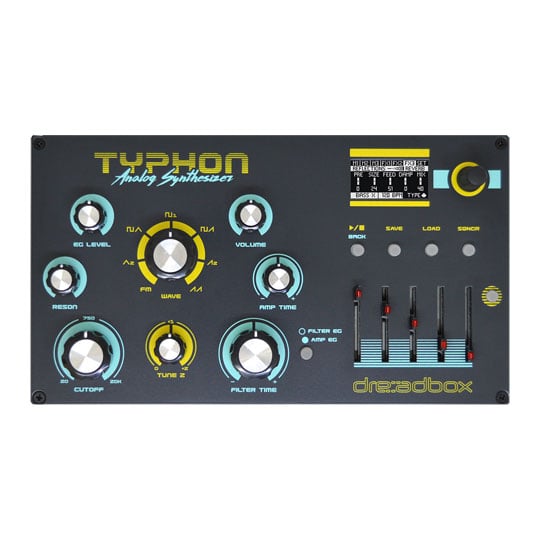

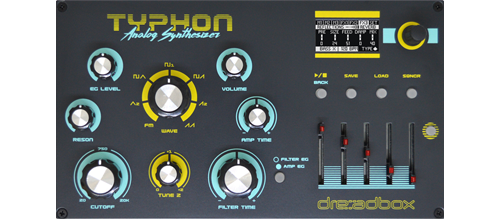

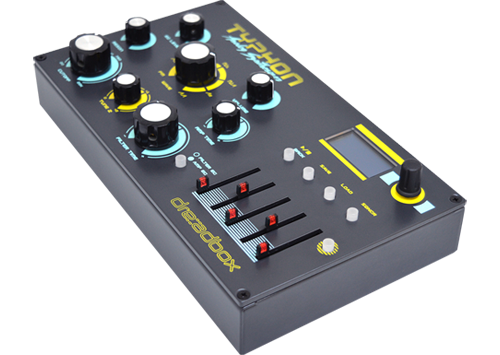

Dreadbox Typhon Mono Synth
Dreadbox Typhon Monophonic Analog Synthesizer Module with 2 VCOs, Resonant Lowpass Filter, 2 Envelope Generators
- SCANPROTECT Protect against installation damage for 28 days. More info
Desktop Monophonic Analog Synthesizer
Dreadbox - 'Typhon'
Monophonic Analog Synthesizer ModuleDreadbox and software developers ‘Sinevibes’ teamed up together to develop the ‘Typhon’, a powerful desktop monophonic analogue synthesiser. Don’t let its small stature fool you, the Typhon is brimming with innovative design features and breath-taking sounds. This powerful monophonic synthesiser features two fully analogue VCOSs, a four-pole resonant lowpass filter, two envelope generators, and analogue VCAs – everything you’d expect to find in an old-school inspired synthesiser!
‘Sinevibes’ gives Typhon the power it needs for its powerful DSP technology and sound design flair, packing it with a wide FX library which includes 6 varying distortions, a bitcrusher, two delays, reverb and 3 modulations. With the Typhon from Dreadbox, creative ideas will never be too far from your mind. Connect your headphones, build a killer sequence using the 32-step sequencer and give life to your catchy synth lines!
254xPresets
32-StepSequencer
2xOscillators
Amazing Features
• Large diaphragm cartridge provides wider dynamic range for clear highs and strong lows
• Cardioid polar pattern picks up audio from the source while rejecting unwanted noise
• Updated industrial design with black metallic finish and grille for unobtrusive visual presence
• High-pass filter for additional control of unwanted low-end signal
• -15dB switchable attenuator for additional SPL versatility
• Shock mount included for additional set-up stability and minimization of unwanted mechanical noise
• Padded zipper case included for additional protection during storage or transport
3 Independent Modulators
13 modulation destinations‘Typhon’ hands you direct access to 3 independent modulators, each of which are assignable to up to 13 modulation destinations. Change pitch, frequency cutoff, waveshapes, effects parameters and so much more using the LFOs, envelope generators and even the 32-step sequencer!
Expansive FX sectionDeveloped in conjunction with sound design wizards ‘Sinevibes’, ‘Typhon’s deep library of distortions, delays and modulation effect offer limitless avenues for taking your synth formulations to all new levels. Thicken things up one of the 6 on board distortions, use the bitcrusher to morph your signal into utter insanity! Add alien atmospheres with the fantastic reverb on hand and the choice of two delays!
32-Step Sequencer
hands-on controlFound yourself on the road without any means of controlling your MIDI sections? Fear not! Typhon features a useful 32-step sequencer, meaning you can create your synthwave masterpiece anywhere, anytime! Programming the onboard sequencer couldn’t be any easier too, you’re handed hands on control over note velocity, octave, gate, length and BPM division. Furthermore, it’s not just ostinatos and basslines you’re limited to programming, the Typhon’s sequencer is also able to utilised as a modulation source for forming in-depth signal manipulations!
The Tech Spec
| Features | Specification | Type | Desktop Synthesizer |
|---|---|
| Analog/Digital | Analog with DSP FX |
| Polyphony | Monophonic |
| Presets | 254 Preset Memory |
| Oscillators | 2 x Analog VCO |
| Envelope Generator | 2 x EG (filter, amp) |
| Filter | 4-pole 24dB/octave Lowpass Filter |
| Effects Types | Sinevibes DSP Stereo FX: Distortion, Bit Crusher, Chorus, Flanger, Delay, Reverb, Ensemble |
| Sequencer | 32-step Sequencer |

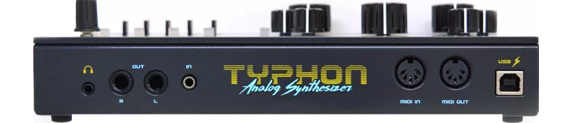

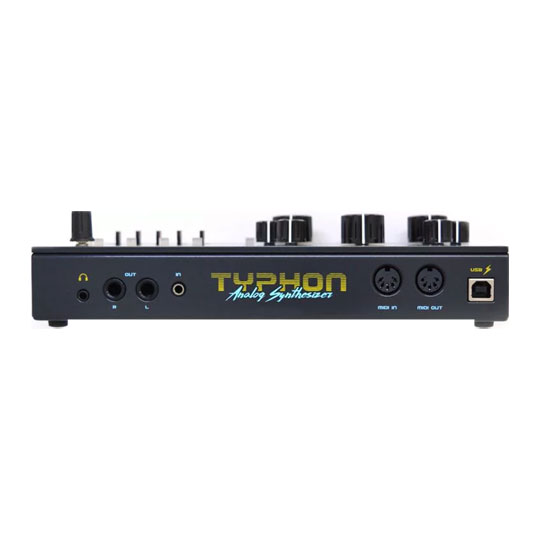

| Analog Inputs | 1 x 1/8" (external audio in) |
| Analog Outputs | 2 x 1/4" (L/R) |
| Headphones | 1 x 1/8" |
| MIDI I/O | In/Out, USB (future feature) |
| USB | 1 x Type B |
| Features | 3 x Modulators (LFO, EG, Random, Parameter Step Sequencer) |
| Software | Typhon Editor |
| Power Supply | USB Bus powered |
