Dobot CR5AP Collaborative 6-Axis Robotic Arm, IP68, Waterproof, Dust Proof, Max Payload 5kg, 900mm Working Radius

Scan code: LN170411 Manufacturer code: 1200000257

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free

Suggested Alternatives

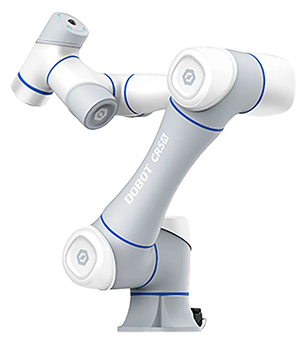

CRA-IP68 CR5AP Waterproof Collaborative Robot from DOBOT

CRA-IP68 Waterproof Collaborative Robot from DOBOT

Pioneer for Extreme The DOBOT CR5AP is a compact, IP68-rated collaborative robot built for harsh environments with high dust, humidity, and oil exposure, while preserving the CRA series' ease of use, performance, and reliability. It offers a 5 kg payload and a 900 mm working radius, making it a strong fit for demanding automation tasks that need precision and protection.

Stand Out in Complicated, Harsh Environments

CR5AP, CR10AP, CR20AP cobot key visual.
Anti-Dust Design.

Anti-Dust Design Handle the high dusty environment, prepare for such applications as cutting and grinding.

Oil resistant.

Oil Resistant, Perfect for Cutting Fluid All exterior plastic components are made from fluororubber, known for its exceptional chemical stability and strong corrosion resistance.

Internal Pneumatic System.

Internal Pneumatic System Enables internal pressurisation, ensuring positive pressure and enhancing the cobot's sealing capabilities.

IP54 Waterproof Control Cabinet.

IP54 Waterproof Control Cabinet To enhance safety and high adaptability in extreme conditions, the control cabinet adopts IP54 waterproof design, making the CRA-IP68 series fully capable of handling harsh tasks.

CRA-IP68 cobot submerged in a watertank, highlighting waterproof design.

Perfect for High Humidity, Dusty, Water Mist Conditions Certified by SGS under IEC 60529, the robot passed a rigorous 72-hour test to meet IP68 waterproof standards.

Note: Not suitable for prolonged underwater use.

Specifications
DOF 6
Safeskin No
Weight 25 Kg
Max. Payload 5 Kg
Working Radius 900 mm
Maximum Working Speed 4 m/s
Range of Motion (J1) ±360 °
Range of Motion (J2) ±360 °
Range of Motion (J3) ±160 °
Range of Motion (J4) ±360 °
Range of Motion (J5) ±360 °
Range of Motion (J6) ±360 °
Max. Working Speed (J1) 180 °/s
Max. Working Speed (J2) 180 °/s
Max. Working Speed (J3) 180 °/s
Max. Working Speed (J4) 223 °/s
Max. Working Speed (J5) 223 °/s
Max. Working Speed (J6) 223 °/s
Force Sensor (Range)
Force Sensor (Overload)
Force Sensor (Accuracy)
Force Sensor (Precision)
End Effector IO (DI) 2 Channels
End Effector IO (DO) 2 Channels
End Effector IO (AO) 2 Channels
Repeatability ±0.02 mm
IP Rating IP68
Temperature Range 0~50 °C
Power Consumption 150 W
Installation Method Any Angle
Cable Length (Robot-to-Control) 5 m
Material(s)
  • ABS Plastic
  • Aluminium Alloy
