DigiTech TRIO+ Band Creator and Looper Pedal
DigiTech - TRIO+ Band Creator and Looper Pedal, 12 Genres, 12 Song Styles, 5 Different Song Parts
Email me when the availability or price changes
Band Creator and Looper Pedal
Digitech - Trio+
A Full band in a pedal!The Digitech TRIO+ is an easy-to-use guitar pedal that listens to the way you play and automatically generates bass and drum parts that match your song. Just plug your guitar into the TRIO+, press the Band footswitch to teach the TRIO+ your chords and rhythm, then press the Band footswitch again to start playing with your own personal band!
Bass and drum levels can be adjusted for the perfect mix using the TRIO+’s Bass and Drums knobs. The TRIO+ also includes a Simple Bass button lets you select between 3 bass line modes for busy or simple bass lines. Pushing the Band Creator™ paradigm further, the TRIO+ also allows you to loop and custom sequence your looped guitar parts to create full songs on the fly.
What's in the box?
• 1 x TRIO+ Band Creator + Looper
• 1 x Power adapter
• 1 x Power adapter
Unlimited Overdubs
Easy ControlHit the TRIO+’s Looper footswitch to record a loop along with an unlimited amount of overdubs. The Loop level can be controlled individually using the TRIO+’s Loop knob. Loops can be recorded by themselves, operating just like a traditional looper, or along with the band. You can also apply built-in effects to your guitar signal by enabling the TRIO+’s Guitar FX button, or connect your favourite effects to the TRIO+’s FX Send and FX Return jacks.

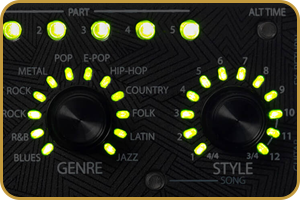

The TRIO+ provides 12 music genres to choose from including Blues, R&B, Rock, Alternative Rock, Metal, Pop, Electronic Pop, Hip-Hop, Country, Folk, Latin, and Jazz. 12 song styles are available for each genre and can be selected using the TRIO+’s Style encoder, including selection between 3/4 and 4/4 time signatures.
Multi-coloured LEDs around the TRIO+’s Style encoder display which styles best match your song. The TRIO+ can learn up to 5 different song parts, perfect for creating an intro, verse, chorus, bridge and outro. Song parts can be recalled on-the-fly as the song plays back or pre-programmed as a sequence for automated playback. An optional DigiTech FS3X Footswitch can be connected to the TRIO+’s Control In jack for additional handsfree control with 3 modes of operation to select from.
More Songs, More Memory
SD card compatibleUp to 12 songs along with loops can be stored to the TRIO+’s Micro SD Card (included). If you need to create more songs, just insert a new SD Card and you’re ready to start teaching the band your new songs. To manage all your songs and loops on a computer, download the free Librarian Manager software from digitech.com, available for Windows® and Mac®.
The TRIO+ offers independent Tempo, Genre, Style, Loop Level, Bass Level, Drums Level, Headphone Output Level controls; Guitar, FX Return and Control Inputs; Amplifier, Mixer, FX Send and Headphone Outputs; Built-in Guitar Effects (relative to music genre); a Soft Click Footswitch and includes a 9V DC adapter.
User-Friendly
12 music genresChoose from Blues, R&B, Rock, Alternative Rock, Metal, Pop, Electronic Pop, Hip-Hop, Country, Folk, Latin, and Jazz.
12 song styles availableCan be selected using the TRIO+’s Style encoder, including selection between 3/4 and 4/4 time signatures.
Learns up to 5 different song partsPerfect for creating an intro, verse, chorus, bridge and outro.
Create Full Songs
Guitar FX ButtonPress this button to add the built-in effects to your guitar signal.
Sequence ButtonPress this button to program the song sequence.

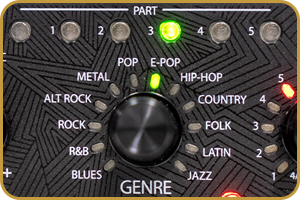

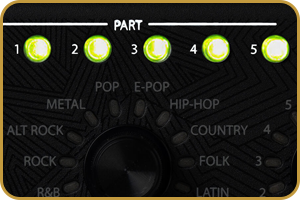

Song Part ButtonsSelect from up to 5 different song parts.

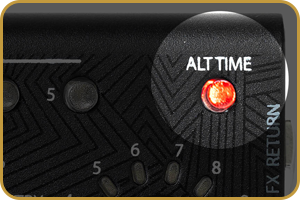

Alt TimePressing this button selects a different interpretation of the selected song part's tempo.

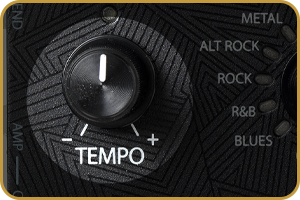

Tempo ControlChanges the global playback tempo.

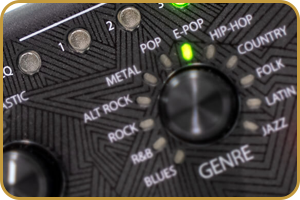

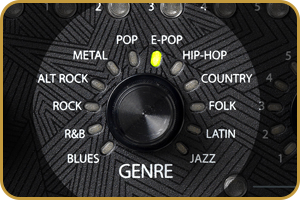

Genre ControlSelects the type for the selected song part.

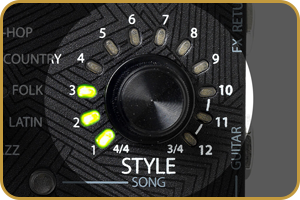

Style ControlSelects between the various styles for each of the genres.

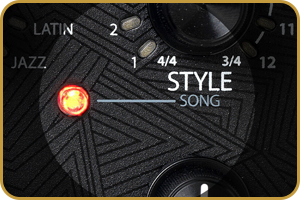

Song ButtonPress this to access the song selection.

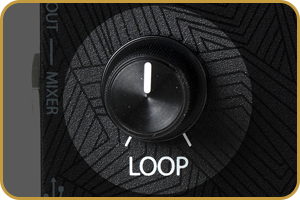

Loop ControlAdjusts the level of your recorded loop and overdubs in the mix.

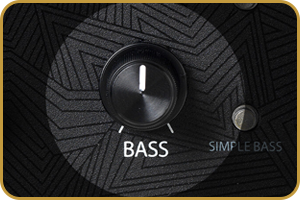

Bass ControlAdjusts the level of the bass guitar in the mix.

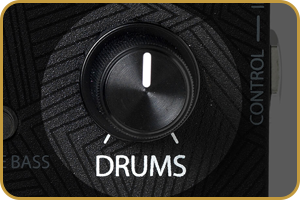

Drum ControlAdjusts the level of the drums in the mix.

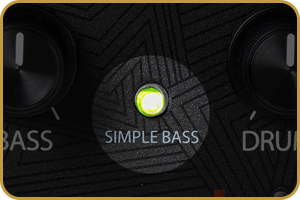

Simple Bass ButtonEngage this to force the TRIO+ to play a simpler bass line.

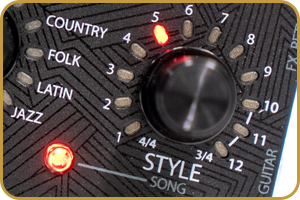

Multi-coloured LEDsLEDs around the style encoder indicate which style suits your song best.
The Tech Spec
| Features | Specification | Controls | Tempo, Genre, Style, Loop, Bass, Drums, Headphone Volume |
|---|---|
| Backlit Buttons | Guitar FX, Seq, Part 1-5, Alt Time, Song, Simple Bass |
| Footswitches | Looper, Band |
| LEDs | Genre types, Style 1–12, Audiolastic, Looper, Band |
| Jacks | Power, Control In, Guitar In, FX Return, FX Send, Amp Out, Mixer Out, Headphone |
| Other | Mini USB port, microSD card slot |
| Bit Depth | 24-bit |
| Sample Rate | 44.1 kHz |
| Signal-to-Noise Ratio | 110dB, A-weighted |
| Maximum Recording Time | 230 seconds per song part — based on a minimum 50 BPM and 48 bars per part |
| USB Type | Mini-B |
| SD Card Type | microSDHC, Class 10 |
| SD Min/Max Storage Size | 8 GB/32 GB |
| Power Requirements | 9 VDC external power adapter |
| Power Consumption | 7.2 W |
| Current Draw | 800 mA |
| Pickups | Width: 4.25" (108mm) Height: 2.5" (64mm) Length: 5.4" (137mm) |
| Weight | 1.46 lb. (622g) |
| Amp Output Type | Unbalanced, 1/4" TS |
| Amp Output Impedance | 1 kΩ |
| Mixer Output Type | Unbalanced, 1/4" TS |
| Mixer Output Impedance | 1 kΩ |
| FX Send Output Type | Unbalanced, 1/4" TS |
| FX Send Impedance | 1 kΩ |
| Headphone Output Type | 1/8" (3.5 mm) Stereo Mini Jack |
| Headphone Output Impedance | 120 Ω |
| Guitar Input Type | Unbalanced, 1/4" TS |
| Guitar Input Impedance | 1 MΩ |
| FX Return Input Type | Unbalanced, 1/4" TS |
| FX Return Impedance | 1 MΩ |
| Control Input Type | 1/4" TRS (compatible with DigiTech FS3X) |
