Pitch-Shifting Pedal

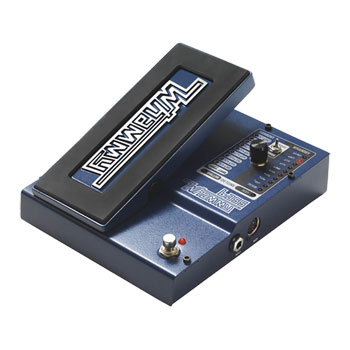

DigiTech - Bass Whammy
Legendary pitch shifting effect for bass guitarThe next generation Bass Whammy uses the most advanced pitch detection and polyphonic note tracking technology to create the world’s best pitch shifting effect pedal optimized for bass. The Bass Whammy keeps the classic settings from the original with many modern upgrades. Featuring two different tracking modes, Classic and Chord, the Bass Whammy gives players the ability to recreate the shift glitch effects from the original or get the smooth pitch shift effect.
Chord mode uses advanced polyphonic tracking algorithms for a more exact and smooth pitch shift effect while Classic maintains the tracking artifacts of the original Whammy. The Bass Whammy is true bypass, MIDI controllable, and uses a 9V DC power supply to easily integrate into your existing pedalboard.
At A Glance
• Legendary pitch-shifting pedal optimized for bass guitar
• Expression pedal to control the Harmony, Whammy or Detune effect
• Bend entire chords with the new chordal pitch shifting setting
• Classic/Chords switch goes between classic and modern algorithm
• MIDI input for MIDI control

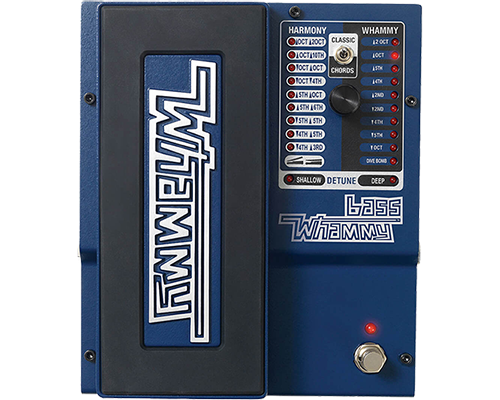

Amazing Features
Expression PedalThis peda; is used to control the pitch bending amount of the selected Harmony, Whammy, or Detune effect. Rocking it forward (toe down) increases the amount of pitch bending while rocking it back (toe up) decreases the amount of pitch bending.
Harmony LEDSOne of these LEDs will light up when a Harmony effect is selected. Harmony effects have dry signal added to the effect signal.
classic/chords switchThis switch toggles between the classic Whammy algorithm (Classic) and modern chordal algorithm (Chords). The classic setting works perfectly for single note play while the Chords setting is best suited for bending full of chords.
Selector KnobThis knob is used to select one of the Whammy, Harmony or Detune effects.
Whammy LEDSOne of these LEDs will light when a Whammy effect is selected. Whammy effects don't have dry signal added to the effect signal.
Detune LEDSOne of these LEDs will light when a Detune effect is selected. The expression Pedal controls the amount of Detune signal mixed with the dry signal.
DigiTech Bass Whammy
The Tech Spec
| Features | Specification | Sample Rate | 44.1 kHz |
|---|---|
| Frequency Response | 20 Hz to 20 kHz |
| Signal To Noise Ratio | > -105 dB (A weighted); ref = max level, 22 kHz bandwidth |
| THD | 0.004% @ 1 kHz; ref = 1 dBu w/ unity |
| A/D Conversion | 24 bit |
| D/A Conversion | 24 bit |
| Power Consumption | 2.4 Watts (< 265 mA @ 9 VDC) |
| Power Adapter | 9 VDC External Adapter |
| True Bypass | Yes. With true bypass circuitry, the whammy is completely bypassed when both Whammy and Drop Tune effects are off. |
| Dimensions | Width: 6.5" (165mm) Height: 2.5" (64mm) Depth: 7.75" (197mm) |
| Output Type | 1/4” Unbalanced TS |
| Max Output Level | +10 dBu |
| Output Impedance | 1 kΩ |
| Instrument Input Type | 1/4” Unbalanced TS |
| Max Input Level | +5 dBu |
| Input Impedance | 1 MΩ |
| MIDI | 5-Pin Din |
