Product Overview

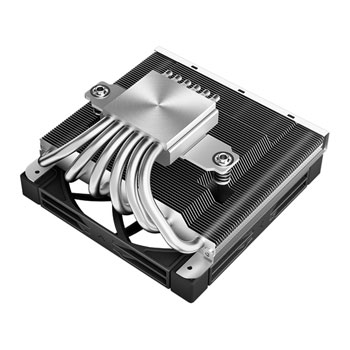

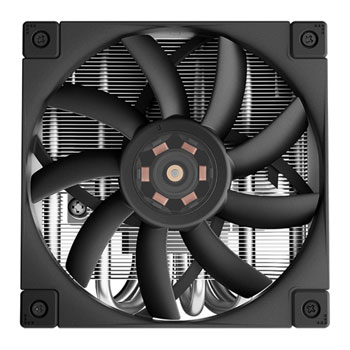

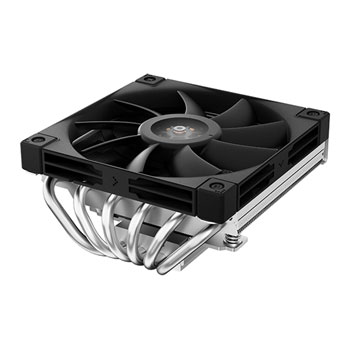

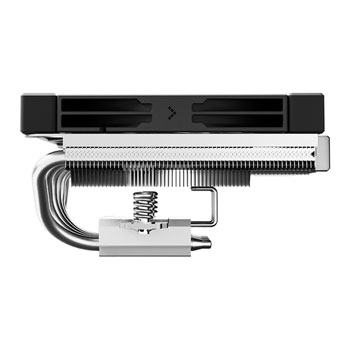

DeepCool AN600 Low Profile Cooler

The AN600 is a low-profile CPU cooler that provides 180W of cooling to the CPU while also cooling the RAM modules. Making full use of a 120mm high airflow fan and an overhanging design, the AN600 actively cools RAM modules up to 40mm tall, while being compatible with ITX motherboards.


Keeping Things Cool

Utilising 62 aluminium fins, a slim profile 120mm fan, 6 optimised heatpipes, and a raised copper coldplate, the AN600 packs a lot of cooling potential in a short 67mm tall CPU cooler.


More Than a CPU Cooler

Taking full advantage of the slim 120mm PWM-enabled FDB fan and a top-down air flow, the AN600 pushes massive amounts of air through the fin array and down onto the RAM and VRMs below. The visible 6-phase fan motor ensures all of this is accomplished while staying under 24.2 dB(A). A low-noise adapter cable is included.


Simplified Support

The all-metal back plate is easy to install and evenly distributes pressure from the rear of the motherboard, while providing reinforcement behind the CPU socket.

Features

• Intel Compatibility: LGA1700/1200/1151/1150/1155.
• AMD Compatibility: AM5/AM4.

Specifications
Cooler Specifications
Edition AN600
Cooler Form Factor Top Flow Single Tower
Heatpipes 6
Cooler Features
  • Aluminium Heatsink
  • Copper Base
  • Copper Heatpipes
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1200
  • 1700
  • AM4
  • AM5
Max. TDP
Fan Specifications
Included Fan Configuration 1 x 120mm
Fan Edition
PWM Fan Yes
Fan Bearing Type Fluid Dynamic Bearing
Fan Colour Black
LED Lighting N/A
Fan/Pump Connectors 1 x 4-pin PWM
Max. Fan Speed 500~1850 rpm
Max. Fan Airflow 60.94 CFM
Max. Air Pressure 2.61 mm H²O
Max. Sound Level 24.2 dBA
Materials
Cooler Materials Aluminium / Copper
Included TIM (Thermal Interface Material)
Dimensions & Weight
Heatsink/Radiator Dimensions 121 x 120 x 52 mm (WxHxD)
Total Dimensions 122 x 120 x 67 mm (WxHxD)
Weight 628 g
Additional Information
Scan Code LN135232
Model Number R-AN600-BKNNMN-G
GTIN 6933412728146
