Decimator Design DECIMATOR 2 Professional SDI HDMI Video Converter
Scan code: LN63395
Manufacturer code: DD-DEC-2
£408.49Item currently awaiting an ETA
Pre order
Decimator Design DECIMATOR 2 Professional SDI HDMI Video Converter
DECIMATOR 2 3G/HD/SD-SDI to HDMI + NTSC/PAL with De-Embedded Analogue Audio and Simultaneous Scaling, Aluminium, Red
Scan code:
LN63395
Manufacturer code:
DD-DEC-2
Item currently awaiting an ETA
Pre order
Email me when the availability or price changes
Product Overview

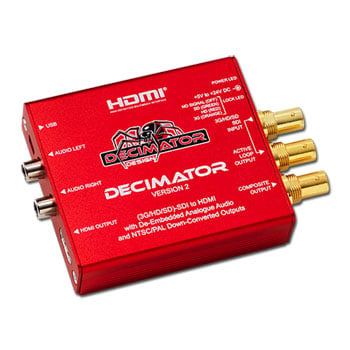

Miniature (3G/HD/SD)-SDI to both HDMI and NTSC/PAL with simultaneous scaling on both outputs and De-embedded Analogue Audio
• Auto detects 3G, HD or SD (26 Formats in total) and can handle switching of synchronous sources
• Simultaneous scaling on both the HDMI and Composite outputs with a maximum delay of 1 input frame
• HDMI output with optional full scaling and aspect ratio conversion.
• Down-converted Composite output with:
- NTSC or PAL is selectable for 3G/HD inputs
- SD will be passed unchanged.
- Low latency 3G/HD to SD Down-conversion with
- ARC (Aspect Ratio Conversion) of either:
i) 16:9 to 16:9 Anamorphic
ii) 16:9 to 4:3 Letterbox
iii) 16:9 to 4:3 Centre Cut (Crop to 4:3)
- Full 10-bit data path and multipoint interpolation
- 16 times over-sampling for Composite Output
• Passes EIA-708/608 Closed Captions to the Composite Output
• Full 16-Channel Audio metering displayed on the HDMI output with:
- Any of the 4 audio groups individually selectable
- Vertical or Horizontal Bars
- AES/EBU, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales
- Bar & Float, Bar only or Float only
- Transparency adjustment
- Separate Bar and Float Ballistics control
- Adjustable Reference level
- Red, Yellow and Green Range adjustment
- Bar thickness adjustment
- Margin adjustment
• Adjustable Graticules Generator displayed on the HDMI output with:
- Separate enables for Safe Action, Safe Title and Centre Cross
- Adjustable position for either Safe Action or Safe Title
- Adjustable colours for Safe Action, Safe Title and Centre Cross
• Text Overlays displayed on the HDMI output with:
- Adjustable Foreground and Background colours
- Adjustable 16 character text
- Current input format status
• De-Embedded Analogue Audio is output on 2 x RCA connectors at -10dBu = -20dBFS
• 3G/HD/SD-SDI Active Loop-Through Output External Dip-Switch Configuration
• USB port for control and firmware updates
• Locking DC Power Socket
• The following is also included with the unit:
- Power Supply
- HDMI Cable
- USB Cable and Mounting Bracket Features Video Formats
• 3G:SMPTE [email protected] and 2.967Gb/s
- 1080p@60/59.94/50Hz
• HD:SMPTE 292M/274M/[email protected] and 1.435Gb/s
- 1080i@60/59.94/50Hz
- 1080p/psf@30/29.97/25/24/23.98Hz
- 720p@60/59.94/50/30/29.97/25/24/23.98Hz
• SD:SMPTE 259M@270Mb/s
- 625i50
- 525i59.94
Dip Switch Controls
• NTSC or PAL Selection
• SD Pedestal
• Crop 16:9 to 4:3
• 16:9 or 4:3 Aspect Selection
• Stereo Pair selection for RCA Analogue Audio
• HDMI Output format select
Inputs
• (3G/HD/SD)-SDI 10-bit
• Conditional Maximum Equalization cable length of 400M for SDI, 200M for HD-SDI and 100M 3G-SDI using Belden 1694A
Outputs
• HDMI
• SD-Composite
• 1 x (3G/HD/SD)-SDI Active Loop-Through
• 2 x RCA for De-embedded Analogue Audio (20dBFS=-10dBu)
LED Status
• Power
• Signal Lock
Dimensions
• 90mm x 71mm x 23mm (3.5” x 2.8” x 0.9”)
Power
• +5V to +24V DC, ~5 Watts
• Positive Centre Pin
• Auto detects 3G, HD or SD (26 Formats in total) and can handle switching of synchronous sources
• Simultaneous scaling on both the HDMI and Composite outputs with a maximum delay of 1 input frame
• HDMI output with optional full scaling and aspect ratio conversion.
• Down-converted Composite output with:
- NTSC or PAL is selectable for 3G/HD inputs
- SD will be passed unchanged.
- Low latency 3G/HD to SD Down-conversion with
- ARC (Aspect Ratio Conversion) of either:
i) 16:9 to 16:9 Anamorphic
ii) 16:9 to 4:3 Letterbox
iii) 16:9 to 4:3 Centre Cut (Crop to 4:3)
- Full 10-bit data path and multipoint interpolation
- 16 times over-sampling for Composite Output
• Passes EIA-708/608 Closed Captions to the Composite Output
• Full 16-Channel Audio metering displayed on the HDMI output with:
- Any of the 4 audio groups individually selectable
- Vertical or Horizontal Bars
- AES/EBU, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales
- Bar & Float, Bar only or Float only
- Transparency adjustment
- Separate Bar and Float Ballistics control
- Adjustable Reference level
- Red, Yellow and Green Range adjustment
- Bar thickness adjustment
- Margin adjustment
• Adjustable Graticules Generator displayed on the HDMI output with:
- Separate enables for Safe Action, Safe Title and Centre Cross
- Adjustable position for either Safe Action or Safe Title
- Adjustable colours for Safe Action, Safe Title and Centre Cross
• Text Overlays displayed on the HDMI output with:
- Adjustable Foreground and Background colours
- Adjustable 16 character text
- Current input format status
• De-Embedded Analogue Audio is output on 2 x RCA connectors at -10dBu = -20dBFS
• 3G/HD/SD-SDI Active Loop-Through Output External Dip-Switch Configuration
• USB port for control and firmware updates
• Locking DC Power Socket
• The following is also included with the unit:
- Power Supply
- HDMI Cable
- USB Cable and Mounting Bracket Features Video Formats
• 3G:SMPTE [email protected] and 2.967Gb/s
- 1080p@60/59.94/50Hz
• HD:SMPTE 292M/274M/[email protected] and 1.435Gb/s
- 1080i@60/59.94/50Hz
- 1080p/psf@30/29.97/25/24/23.98Hz
- 720p@60/59.94/50/30/29.97/25/24/23.98Hz
• SD:SMPTE 259M@270Mb/s
- 625i50
- 525i59.94
Dip Switch Controls
• NTSC or PAL Selection
• SD Pedestal
• Crop 16:9 to 4:3
• 16:9 or 4:3 Aspect Selection
• Stereo Pair selection for RCA Analogue Audio
• HDMI Output format select
Inputs
• (3G/HD/SD)-SDI 10-bit
• Conditional Maximum Equalization cable length of 400M for SDI, 200M for HD-SDI and 100M 3G-SDI using Belden 1694A
Outputs
• HDMI
• SD-Composite
• 1 x (3G/HD/SD)-SDI Active Loop-Through
• 2 x RCA for De-embedded Analogue Audio (20dBFS=-10dBu)
LED Status
• Power
• Signal Lock
Dimensions
• 90mm x 71mm x 23mm (3.5” x 2.8” x 0.9”)
Power
• +5V to +24V DC, ~5 Watts
• Positive Centre Pin
