Datavideo 12G-SDI Distribution Amplifier
Datavideo VP-601 12G-SDI Distribution Amplifier, 1x Input to 8x Output, SD/HD/3G/6G/12G SDI
Email me when the availability or price changes
Finance this product
- From £19.73 / month (APR 16.9%) for 24 months or 0% for 4 months
- With a 10% deposit from just £10.09 / month (APR 15.9%)
Datavideo - 'VP-901 1x8 12G SDI Distribution Amplifier'

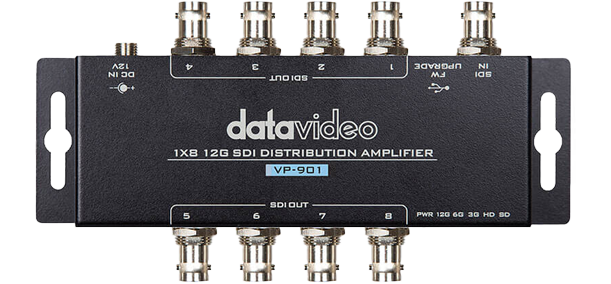

VP-901 1x8 12G SDI Distribution AmplifierThe VP-901 12G SDI Distribution Amplifier can distribute a single 12G, 4K, HD, or SD-SDI input into eight SDI outputs. It is a reliable video device, which splits an SDI, HD-SDI, 3G-SDI, 6G-SDI, or 12G-SDI video source to SDI compliant video displays simultaneously. It also supports re-clocking for a clean signal over long cable runs.
Digital Signage Applications
Useful applications in digital signage,
indoor, and outdoor studiosSupports 12G/6G/3G/HD/SD-SDI video with embedded Audio

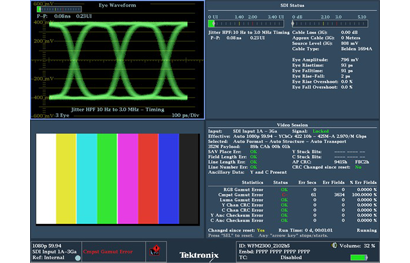

Equalisation and re-clockingTo provide better performance on video and reduce the accumulated jitter problem.

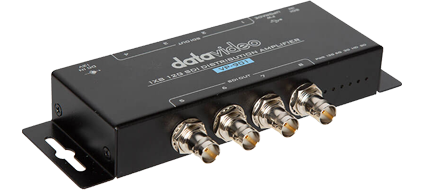

LED indication of signal lock and video rateWith easy-to-use controls, the VP-901 is ideal for a variety of broadcast, post-production, and professional AV applications.
Plug and playAutomatic detection of incoming data rate
The Tech Spec
| Features | Specification | Video Input/Output | Input: 1 x BNC Output: 8 x BNC |
|---|---|
| Video Format | 3840x2160p: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50, 720p: 60/59.94/50 525i59.94 NTSC, 625i50 PAL |
| Video Processing | SD/HD/3G/6G/12G-SDI |
| Video Bandwidth | 11.88Gpbs & 11.88/1.001Gbps |
| Audio Format | Support SDI embedded audio |
| Power | 12V DC Jack |
| Dimension (LxWxH) | 167 x 50 x 24 mm |
| Weight | 0.31 kg |
| Operating Temp. Range | 0~40 °C |
