Datavideo - 'PTC-325'
4K Tracking PTZ Camera
Advanced 4K PTZ Camera perfect for large venuesThe Datavideo PTC-325 is an advanced PTZ camera perfect for large venues thanks to its 1/2.8-inch CMOS sensor and 30x optical zoom lens offering up to 4K60p resolution output via HDMI with YUV 4:2:2 colour sampling to deliver sharp, detailed images with accurate colour reproduction, even in larger venues. Featuring Auto-Tracking, the PTC-325 automatically locks onto and smoothly follows the subject, perfect for easy, hands-free operation. With NDI support for low-latency video transmission over networks, ideal for live streaming and remote production.
Designed for the A/V market the PTC-325 supports dual streaming output, enabling easy streaming to platforms like Facebook, YouTube, and dvCloud. ONVIF Profile S compliant to ensure compatibility across diverse network video environments. With dual power options, PoE and DC input, it offers robust, versatility to match your workflow.

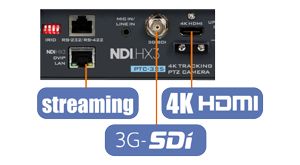

HDMI/SDI/IP Output
Simultaneous OutputsConnect your PTC-325 to multiple devices in your workflow, with all the outputs being active at the same time, for full flexibility.
1/2.8" CMOS Sensor
Broadcast Quality 4K ResolutionThe built-in 1/2.8" CMOS sensor, supports resolution up to 2160p 50/60.
30x Optical Zoom
Superior Optical PerformanceThe PTC-325 camera features 30x Optical Zoom and 16x Digital Zoom with the f1.8 wide open aperture.
Built-in Tracking
Quick Access to Camera's Auto TrackingYou will be allowed direct access to auto tracking via various external controllers such as the supplied RMC-1AT remote control and DVIP controllers (RMC-300A, PTC View Assist, etc.)
In addition to camera controllers, you can also easily enable auto tracking on smart switchers which include iCAST mini, SHOWCAST 100, etc as well as complete solution systems like ZR-1 Hybrid Video Production Solution.
Designate Object Tracking
Custom Auto Object TrackingIf you are filming multiple people, you can designate a person for auto- tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, etc.
Smart Tracking Speed
Smart PTZ Speed AdaptionThe integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera's corresponding pan, tilt and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.
Talent Position
Center/Left Side/Right SideThe positioning of talent depends on the videographer's creativity and intent rather than strict rules. Different positions can convey various emotions, messages, or visual effects. A centered composition provides a sense of stability and balance, suitable for scenes that require highlighting the main subject. Videographers may also place the talent on the left third or right third of the frame, leaving adequate space in the foreground to showcase the talent's sight direction or potential future possibilities.
Full Body/Half Body/Close-upAll of the PTC-325 camera series include RMC-1AT controller. User can quickly select full-body, half-body and close up framing, making it easy to change the shooting scene and framing requirements.
RMC-1AT PTZ Controller
Simply Enable Auto Tracking with Your IR Remote ControlRMC-1AT PTZ Controller: All you need is a remote control to set and control all four cameras and save the four presets.
WebUI
Remote Control and Preview
by Web User InterfaceThe web user interface provides preview, pan-tilt-zoom control and configurations setting in IP mode.
PTZ View Assist
Control up to 4 CamerasThe camera control app is tailored for the Datavideo PTZ camera series. It can monitor the live streaming video from PTC-140, PTC-280, PTC-285, PTC-300 and PTC-305 series. The app can control up to 4 cameras simultaneously via DVIP, you can intuitively set up and recall the presets, and adjust white balance, focus and IRIS.
The app is able to decode the live streaming via RTSP and SRT. Easily monitor the live streaming video and set up the parameters promptly in one application. Datavideo provides iOS and Android versions, which you can download on Google Play and App Store for free.
Noise Reduction
Low Noise in Low LightAdvanced 3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.
HDMI 2.0 and 3G-SDI
Multiple Simultaneous Video outputsSupports simultaneous HDMI 2.0 and IP output up to 2160p 50/60 and also 3G-SDI output up to 1080p 60/50.
SRT, RTSP and RTMPS
Multiple Network Protocol
with Dual Stream FunctionSupport RTSP an RTMPS protocols, easy to stream directly to two different CDN platforms and Datavideo dvCloud as well.
H.264/H.265 Video
Supports H.264/H.265 Video CompressionSupport compression of resolution up to 3840x2160 with frame up to 59.94, 60fps and the second channel 720x480p compression. AAC, MP3 and PCM audio compression also supported.
Easy PoE Connection
Power Over EthernetThe PTC-325 supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT-6 cable to power your PTC-325.
Controller Support
Compatible with Various ControllerControl real-time pan, tilt, and zoom camera movements with Datavideo Showcast 100, PTZ View Assist APP, RMC-300A and RMC-180. With configurable preset positions supported.
IP Control
RS-422, DVIP and Ethernet Camera ControlRS-422 and ethernet to use DVIP or VISCA over IP commands to integrate with larger control systems.
Onvif S Compliant
Compliant with the ONVIF Profile S StandardThe PTC-325 series cameras are compliant with the ONVIF Profile S standard, ensuring seamless integration and interoperability in network video systems.
NDI HX3 Support
One Ethernet Cable with NDI HX TechnologyThere is no need for multiple cables and complicated setup. Single-wire concept helps you to transfer video, audio, power, tally, and control over only one Ethernet cable.
Power Over Ethernet (PoE) functionality allows you transmit all the information and power over only one cable.
NDI® is a registered trademark of Newtek, Inc.
Datavideos NDI Support
NDI® Virtual InputPTC-325 as an video input source can be applied to various platforms: Skype, GoToMeeting, WebEx, Zoom, and more.
Built in Tally Light
Tally LightGreen and red tally lights to show the preview and program status for broadcast applications.
Two Colour Options
Dark or light BodyThe PTC-325 is available in dark gray or white to remain inconspicuous in permanent setups.
SRT Streaming
Build a Reliable SRT Live Streaming Workflow with all Datavideo ProductsDatavideo's wide range of encoders, cameras, and hand-carry switchers are fully supported by SRT and dvCloud. Datavideo encoders and dvCloud provide reliable streams over unreliable networks.
By using a Datavideo encoder and dvCloud together, you can utilize SRT (instead of RTMP) on the initial problematic connection or "First Mile." After your video stream reaches dvCloud, you can depend on dvCloud's reliable, high-bandwidth network to deliver the stream to your favorite destinations, like Facebook and YouTube.
dvCloud Control
Remote Control from Anywhere in the WorldControl the PTZ camera at the venue from anywhere in the world using the BB-1Kit and dvCloud streaming service.
