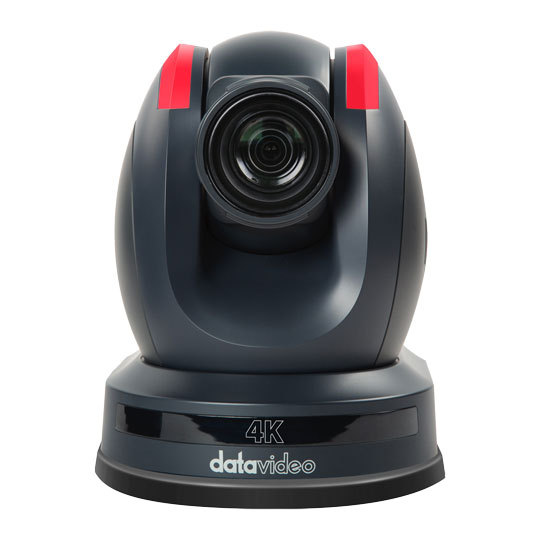

Datavideo - 'PTC-285T 4K HDBaseT Tracking PTZ Camera'
Black
4K Auto Tracking PTZ Camera with HDBaseTIntroducing the Datavideo PTC-285T 4K HDBaseT Tracking PTZ Camera, designed to seamlessly integrate into any setting, offering exceptional versatility and control. With its high-resolution 4K HDMI/3G-SDI capabilities and 12x optical zoom, coupled with a 16x digital zoom, it captures every detail with precision. Whether operated via remote control, IP, HDBaseT, or serial protocols, its pan, tilt, and zoom functionalities provide effortless customization. Plus, its advanced AI auto tracking algorithm ensures your subject remains the focus, delivering professional-grade results effortlessly.
One Cable Solution
HDBaseTHDBaseT allows you to transmit power, HD video, control, and tally over a single Ethernet cable.
AI Tracking Features
Quick Access to Camera's Auto TrackingYou will be allowed direct access to auto tracking via various external controllers such as the supplied RMC-1AT remote control and DVIP controllers (RMC-300A, PTC View Assist, etc.)
In addition to camera controllers, you can also easily enable auto tracking on smart switchers which include KMU-200, SHOWCAST 100, etc as well as complete solution systems like ZR-1 Smart Classroom.
Custom Auto Object TrackingIf you are filming multiple people, you can designate a person for auto tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, etc.
Smart PTZ Speed AdaptationThe integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera's corresponding pan, tilt and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.
Talent PositionThe positioning of talent depends on the videographer's creativity and intent rather than strict rules. Different positions can convey various emotions, messages, or visual effects. A centered composition provides a sense of stability and balance, suitable for scenes that require highlighting the main subject. Videographers may also place the talent on the left third or right third of the frame, leaving adequate space in the foreground to showcase the talent's sight direction or potential future possibilities.
Quick SelectionAll of the PTC-285 camera series include RMC-1AT controller. User can quickly select full-body, half-body and close up framing, making it easy to change the shooting scene and framing requirements.
S-Shaped Speed CurveJust like how the lift accelerates or decelerates, the camera lens movement will be smooth, avoiding jerky movements that are visible to naked eyes.
Simply enable auto tracking with your IR remote controlRMC-1 PTZ Controller. All you need is a remote control to set and control all four cameras and save the four presets.
RMC-1 PTZ Remote Overview
PTZ View Assist
CONTROL UP TO FOUR CAMERASThe camera control app is tailored for the Datavideo PTZ camera series. It can monitor the live streaming video from PTC-140, PTC-280, PTC-285, PTC-300 and PTC-305 series. The app can control up to 4 cameras simultaneously via DVIP, you can intuitively set up and recall the presets, and adjust white balance, focus and IRIS.
DECODE LIVE STREAMINGThe app is able to decode the live streaming via RTSP, and SRT. Easily monitor the live streaming video and set up the parameters promptly in one application. Datavideo provides iOS and Android versions, which you can download on Google Play and App Store for free!
Advanced 3D Noise Reduction
Low Noise in Low LightAdvanced 3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.
Multiple Video Outputs
Multiple Simultaneous Video OutputsSupports simultaneous HDMI 2.0 and IP output up to 2160p 50/60 and also 3G-SDI output up to 1080p60/50.
RTSP and RTMPS Protocol Support
Multiple Network Protocol with Dual Stream FunctionSupport RTSP and RTMPS protocols, easy to stream directly to two different CDN platforms and Datavideo dvCloud as well.
Multiple Control Options
Compatible with Various ControllersControl real-time pan, tilt, and zoom camera movements with Datavideo PTZ View Assist APP, RMC-300A and RMC-180. With configurable preset positions supported.
Compliant with the ONVIF Profile S StandardThe PTC-285 series cameras are compliant with the ONVIF Profile S standard, ensuring seamless integration and interoperability in network video systems.
RS-422, DVIP and Ethernet Camera ControlRS-422 and ethernet to use DVIP or VISCA over IP commands to integrate with larger control systems.
Power Over Ethernet
easy installationThe PTC-285T supports PoE and HDBastT for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT6 cable to power your PTC-285T.
Built-In Tally Light
Tally LightGreen and red lights tally to show the preview and program status for broadcast applications.
Wide Field Of View
Wide 80° Field of ViewPTC-285T provides a wide Field of View of 80°, easily shooting all the scenes in the field.
Supports H.264/H.265 Video Compression
H.264/H.265 SupportSupport compression of resolution up to 3840x2160 with frame up to 59.94, 60fps and the second channel 720x480 with 29.97fps compression. AAC, MP3 and PCM audio compression also supported.
Web User Interface
Remote Control and PreviewThe web user interface provides preview, pan-tilt-zoom control and configurations setting in IP mode.
SRT And dvCloud Support
Build a reliable SRT live streaming workflow with all Datavideo productsDatavideo's wide range of encoders, cameras, and hand-carry switchers are fully supported by SRT and dvCloud. Datavideo encoders and dvCloud provide reliable streams over unreliable networks. By using a Datavideo encoder and dvCloud together, you can utilize SRT (instead of RTMP) on the initial problematic connection or "First Mile." After your video stream reaches dvCloud, you can depend on dvCloud's reliable, high-bandwidth network to deliver the stream to your favorite destinations, like Facebook and YouTube.
Tutorial Videos Created Specifically For The PTC-285NDI
Datavideo AcademyDatavideo Academy is a comprehensive learning platform established by Datavideo Technology. As a professional Broadcast and AV equipment manufacturer, Datavideo Technology is not only committed to providing quality products to users, but also has the responsibility to help users learn to operate Datavideo products.
Through the Datavideo Academy platform, users can easily master the operation of Datavideo products and experience the unique design of Datavideo products, further creating a variety of applications and bringing a good user experience. Now, a tutorial video for the PTC-285T is available at Datavideo Academy to help you get the best performance out of the product. Please click on the following link.
Datavideo Academy
