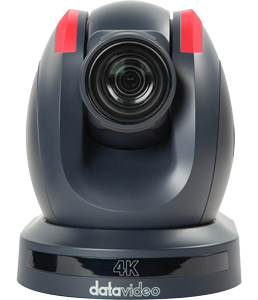

Datavideo - 'PTC-285G'
4K Tracking PTZ Camera
4K Auto Tracking PTZ Camera with 12G-SDI outputThe PTC-285G is a professional PTZ camera designed for high-quality 4K broadcast applications. Featuring 12G-SDI output and 12X optical zoom, the PTC-285G is a versatile and powerful tool suitable for live events, studio production, and other professional broadcast settings.
The PTC-285 series can be easily managed via the traditional RS-422 serial port or remotely through IP using DVIP or Sony VISCA over IP. This advanced 4K camera series supports dual streaming outputs for various A/V market applications, enabling seamless streaming to platforms such as Facebook (RTMPS), YouTube, and dvCloud.
Additionally, the PTC-285G includes integrated NDI control functionality, offering enhanced flexibility and efficiency for modern live production environments.

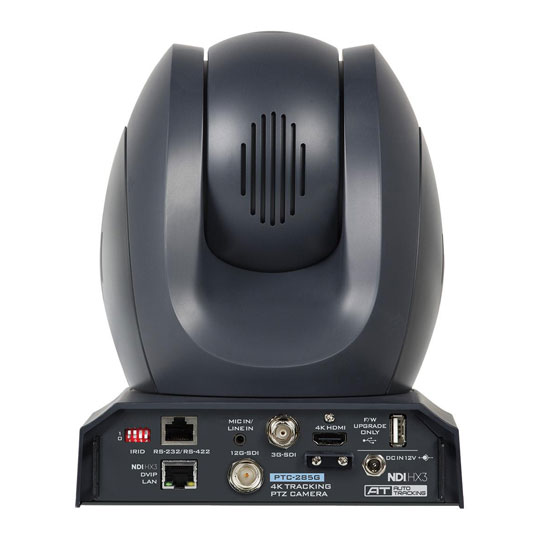

HDMI/SDI/IP Output
Simultaneous OutputsConnect your PTC-285G to multiple devices in your workflow for flexibility. All the outputs are active at the same time.
Built-in Auto Tracking
Quick Access to Camera's Auto TrackingYou will be allowed direct access to auto tracking via various external controllers such as the supplied RMC-1AT remote control and DVIP controllers (RMC-300A, PTC View Assist, etc.)
In addition to camera controllers, you can also easily enable auto tracking on smart switchers which include iCAST mini, SHOWCAST 100, etc as well as complete solution systems like ZR-1 Hybrid Video Production Solution.
Designated Object Tracking
Custom Auto Object TrackingIf you are filming multiple people, you can designate a person for auto tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, etc.
Smart Tracking Speed
Smart PTZ Speed AdaptionThe integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera's corresponding pan, tilt and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.
Talent Position
Center/Left Side/Right SideThe positioning of talent depends on the videographer's creativity and intent rather than strict rules. Different positions can convey various emotions, messages, or visual effects. A centered composition provides a sense of stability and balance, suitable for scenes that require highlighting the main subject. Videographers may also place the talent on the left third or right third of the frame, leaving adequate space in the foreground to showcase the talent's sight direction or potential future possibilities.
Full Body/Half Body/Close-upAll of the PTC-285 camera series include RMC-1AT controller. User can quickly select full-body, half-body and close up framing, making it easy to change the shooting scene and framing requirements.
Smooth Acceleration
S-Shaped Speed CurveThe S-Shaped Speed Curve, inspired by the smooth acceleration and deceleration of a lift, is a pivotal feature that enhances the camera lens movement. Much like the elevator ride that starts and stops seamlessly, the PTC-285 camera ensures your video captures maintain uninterrupted fluidity.
This innovative technology eliminates any jerky movements that might be discernible to the naked eye, resulting in professional-quality, visually pleasing content. The S-Shaped Speed Curve is your assurance that the camera's pan, tilt, and zoom functions will operate with precision and grace, delivering an unparalleled visual experience for your audience. Experience the future of camera movement with the PTC-285.
RMC-1AT PTZ Controller
Simply Enable Auto Tracking with Your IR Remote ControlRMC-1AT PTZ Controller: All you need is a remote control to set and control all four cameras and save the four presets.
WebUI
Remote Control and Preview
by Web User InterfaceThe web user interface provides preview, pan-tilt-zoom control and configurations setting in IP mode.
PTZ View Assist
Control up to 4 CamerasThe camera control app is tailored for the Datavideo PTZ camera series. It can monitor the live streaming video from PTC-140, PTC-280, PTC-285, PTC-300 and PTC-305 series. The app can control up to 4 cameras simultaneously via DVIP, you can intuitively set up and recall the presets, and adjust white balance, focus and IRIS.
The app is able to decode the live streaming via RTSP and SRT. Easily monitor the live streaming video and set up the parameters promptly in one application. Datavideo provides iOS and Android versions, which you can download on Google Play and App Store for free.
Noise Reduction
Low Noise in Low LightAdvanced 3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.
HDMI 2.0 and 12G-SDI
Multiple Simultaneous Video outputsSupports simultaneous HDMI 2.0 and IP output up to 2160p 50/60 and also 12G-SDI output up to 2160p 60/50.
SRT, RTSP and RTMPS
Multiple Network Protocol
with Dual Stream FunctionSupport RTSP an RTMPS protocols, easy to stream directly to two different CDN platforms and Datavideo dvCloud as well.
Controller Support
Compatible with Various ControllerControl real-time pan, tilt, and zoom camera movements with Datavideo Showcast 100, PTZ View Assist APP, RMC-300A and RMC-180. With configurable preset positions supported.
IP Control
RS-422, DVIP and Ethernet Camera ControlRS-422 and ethernet to use DVIP or VISCA over IP commands to integrate with larger control systems.
Onvif S Compliant
Compliant with the ONVIF Profile S StandardThe PTC-285 series cameras are compliant with the ONVIF Profile S standard, ensuring seamless integration and interoperability in network video systems.
Datavideos NDI Support
Datavideo PTZ Cameras Support NDI FeaturesDatavideo's PTZ camera series now supports NDI (Network Device Interface) features, enhancing their versatility and integration capabilities. With NDI, these cameras can transmit high-quality, low-latency video over IP networks, making them ideal for live production environments. The implementation of NDI utilizes the DVIP (Datavideo Protocol) ports, ensuring seamless connectivity and control. This advancement allows users to leverage the flexibility of IP-based workflows, simplifying setup and reducing the need for additional cabling, ultimately streamlining the production process.
NDI HX3 Support
One Ethernet Cable with NDI HX TechnologyThere is no need for multiple cables and complicated setup. Single-wire concept helps you to transfer video, audio, power, tally, and control over only one Ethernet cable.
Power Over Ethernet (PoE) functionality allows you transmit all the information and power over only one cable.
NDI® is a registered trademark of Newtek, Inc.
Datavideos NDI Support
NDI® Virtual InputPTC-285G as an video input source can be applied to various platforms: Skype, GoToMeeting, WebEx, Zoom, and more.
Easy PoE Connection
Power Over EthernetThe PTC-285G supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT6 cable to power your PTC-285G.
Built in Tally Light
Tally LightGreen and red tally lights to show the preview and program status for broadcast applications.
Wide FOV
Wide 80° Field of ViewPTC-285 series provides a wide field of view of 80°, easily shooting all the scenes in the field.
Datavideos NDI Support
Supports H.264/H.265 Video CompressionSupport compression of resolution up to 3840x2160 with frame up to 59.94, 60fps and the second channel 720x480 with 29.97fps compression. AAC, MP3 and PCM audio compression also supported.
NDI HX3 Support
Dark or light BodyThe PTC-285G is available in dark gray or white to remain inconspicuous in permanent setups.
SRT Streaming
Build a Reliable SRT Live Streaming Workflow with all Datavideo ProductsDatavideo's wide range of encoders, cameras, and hand-carry switchers are fully supported by SRT and dvCloud. Datavideo encoders and dvCloud provide reliable streams over unreliable networks.
By using a Datavideo encoder and dvCloud together, you can utilize SRT (instead of RTMP) on the initial problematic connection or "First Mile." After your video stream reaches dvCloud, you can depend on dvCloud's reliable, high-bandwidth network to deliver the stream to your favorite destinations, like Facebook and YouTube.
dvCloud Control
Remote Control from Anywhere in the WorldControl the PTZ camera at the venue from anywhere in the world using the BB-1Kit and dvCloud streaming service.
