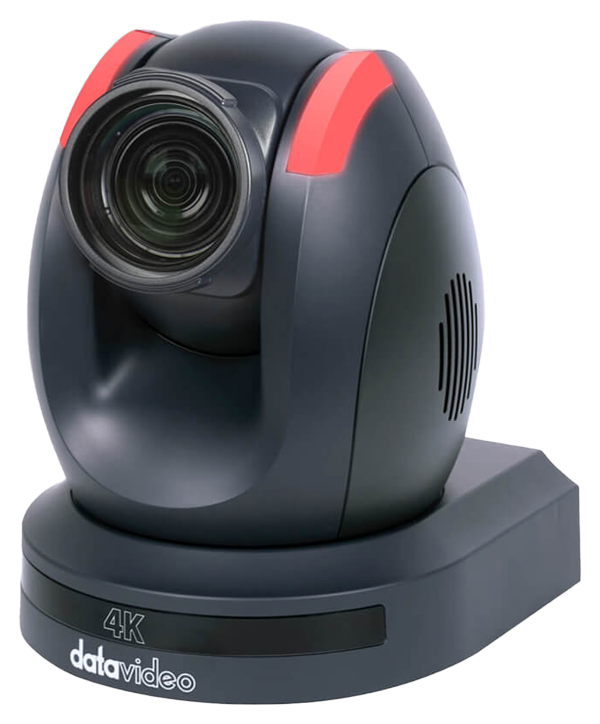

Datavideo PTC-285 4K Tracking PTZ Camera
Datavideo PTC-285 4K Tracking PTZ Camera
Scan code: LN129406 Manufacturer code: DATA-PTC285
£2,323.99Item currently awaiting an ETA
Pre order
  • Thumbnail 1 : Datavideo PTC-285 4K Tracking PTZ Camera
  • Thumbnail 2 : Datavideo PTC-285 4K Tracking PTZ Camera
  • Thumbnail 3 : Datavideo PTC-285 4K Tracking PTZ Camera

Datavideo PTC-285 4K Tracking PTZ Camera

Datavideo PTC-285 Tracking PTZ Camera, 2160p, 12x Optical Zoom, 16x Digital Zoom, PoE, HDMI 2.0, SDI, Black

Scan code: LN129406 Manufacturer code: DATA-PTC285
£2,323.99
Item currently awaiting an ETA
Pre order
  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • From £48.42 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £193.67
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £2,323.99
    Total inc. interest: £2,323.99
    Monthly Payment: £96.84
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £2,323.99
    Total inc. interest: £2,323.99
    Monthly Payment: £64.56
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £2,323.99
    Total inc. interest: £2,323.99
    Monthly Payment: £48.42
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £2,323.99
    Total inc. interest: £2,323.99
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • With a 10% deposit from just £61.76 / month (APR 19.9%)

Datavideo - 'PTC-285 4K Tracking PTZ Camera'

Datavideo PTC-285 4K Tracking PTZ Camera

4K AI Tracking PTZ CameraIntroducing the PTC-285 Ai Tracking PTZ Camera by Datavideo, easily controlled by traditional RS-422 serial port, or IP remote control Via DVIP or Sony VISCA. The PTC-258 offer high performance to streamline your workflow, supporting dual streaming output for A/V market application and giving you easy access to stream directly to Facebook, YouTube and dvCloud.

Simultaneous Outputs

Datavideo PTC-285 4K Tracking PTZ Camera

Connect To Your WorkflowConnect your PTC-285 to multiple devices in your workflow for flexibility. All the outputs are active at the same time.

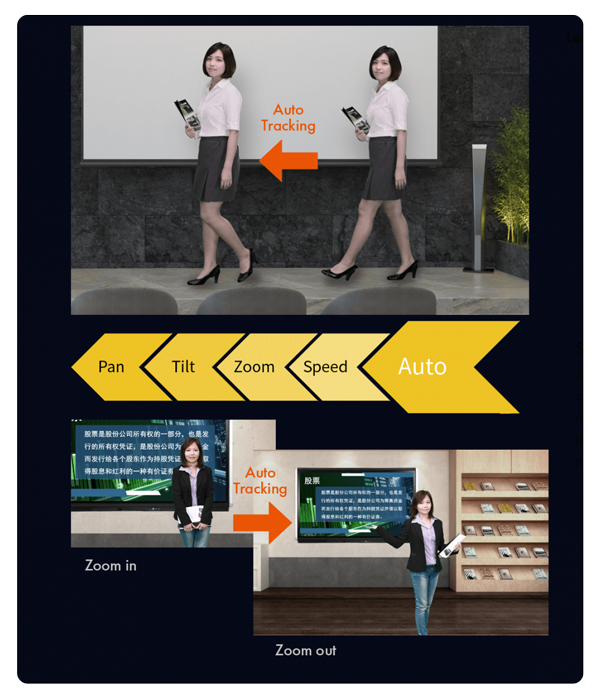

AI Tracking Features

Datavideo PTC-285 4K Tracking PTZ Camera

Quick Access to Camera's AI TrackingYou will be allowed direct access to AI tracking via various external controllers such as the supplied RMC-1 remote control and DVIP controllers (RMC-300A, RMC-180 MARK II and PTC View Assist).

In addition to camera controllers, you can also easily enable AI tracking on smart switchers which include KMU-200, SHOWCAST 100, etc as well as complete solution systems like ZR-1 Smart Classroom.

Datavideo PTC-285 4K Tracking PTZ Camera

Custom AI Object TrackingIf you are filming multiple people, you can designate a person for AI tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, etc.

Datavideo PTC-285 4K Tracking PTZ Camera

Smart PTZ Speed AdaptationThe integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera's corresponding pan, tilt and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.

Datavideo PTC-285 4K Tracking PTZ Camera

S-Shaped Speed CurveJust like how the lift accelerates or decelerates, the camera lens movement will be smooth, avoiding jerky movements that are visible to naked eyes.

Datavideo PTC-285 4K Tracking PTZ Camera

Simply enable AI tracking with your IR remote controlRMC-1 PTZ Controller. All you need is a remote control to set and control all four cameras and save the four presets.

RMC-1 PTZ Remote Overview

Datavideo PTC-285 4K Tracking PTZ Camera

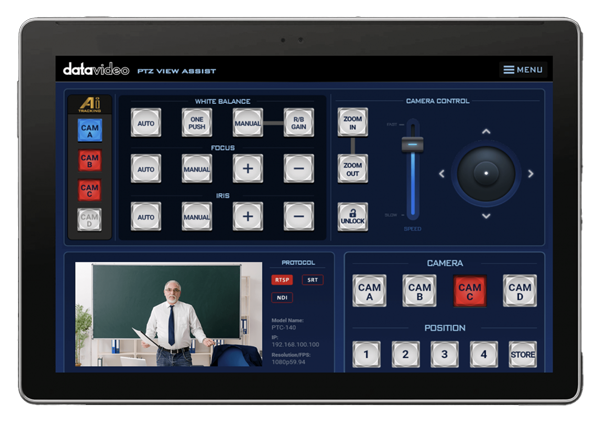

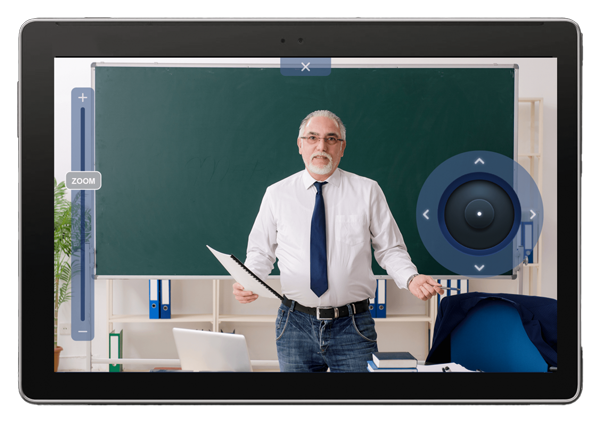

PTZ View Assist

Datavideo PTC-285 4K Tracking PTZ Camera

Control up to four camerasThe camera control app is tailored for the Datavideo PTZ camera series. It can monitor the live streaming video from PTC-140, PTC-280, PTC-285 and PTC-300 series. The app can control up to 4 cameras simultaneously via DVIP, you can intuitively set up and recall the presets, and adjust white balance, focus and IRIS.

Datavideo PTC-285 4K Tracking PTZ Camera

Decode Live StreamingThe app is able to decode the live streaming via RTSP, SRT, and NDI. Easily monitor the live streaming video and set up the parameters promptly in one application. Datavideo provides iOS and Android versions, which you can download on Google Play and App Store for free!

Advanced 2D/3D Noise Reduction

Datavideo PTC-285 4K Tracking PTZ Camera

Low Noise in Low LightAdvanced 3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.

Multiple Video Outputs

back

Multiple Simultaneous Video OutputsSupports simultaneous HDMI 2.0 and IP output up to 2160p 50/60 and also 3G-SDI output up to 1080p60/50.

RTSP and RTMPS Protocol Support

Datavideo PTC-285 4K Tracking PTZ Camera

Multiple Network Protocol with Dual Stream FunctionSupport RTSP and RTMPS protocols, easy to stream directly to two different CDN platforms and Datavideo dvCloud as well.

Multiple Control Options

Datavideo PTC-285 4K Tracking PTZ Camera

Compatible with Various ControllersControl real-time pan, tilt, and zoom camera movements with Datavideo PTZ View Assist APP, RMC-300A and RMC-180. With configurable preset positions supported.

Datavideo PTC-285 4K Tracking PTZ Camera

RS-422, DVIP and Ethernet Camera ControlRS-422 and ethernet to use DVIP or VISCA over IP commands to integrate with larger control systems.

Power Over Ethernet

Datavideo PTC-285 4K Tracking PTZ Camera

Easy InstallationThe PTC-285 supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT6 cable to power your PTC-285.

Built-in Tally Light

Datavideo PTC-285 4K Tracking PTZ Camera

Tally LightGreen and red lights tally to show the preview and program status for broadcast applications.

Wide Field Of View

Datavideo PTC-285 4K Tracking PTZ Camera

Wide 80° Field of ViewPTC-285 provides a wide Field of View of 80°, easily shooting all the scenes in the field.

H.264/H.265 Support

Datavideo PTC-285 4K Tracking PTZ Camera

Supports H.264/H.265 Video CompressionSupport compression of resolution up to 3840x2160 with frame up to 59.94, 60fps and the second channel 720x480 with 29.97fps compression. AAC, MP3 and PCM audio compression also supported.

SRT and dvCloud Support

Datavideo PTC-285 4K Tracking PTZ Camera

Build a reliable SRT live streaming workflow with all Datavideo productsDatavideo's wide range of encoders, cameras, and hand-carry switchers are fully supported by SRT and dvCloud. Datavideo encoders and dvCloud provide reliable streams over unreliable networks.

By using a Datavideo encoder and dvCloud together, you can utilize SRT (instead of RTMP) on the initial problematic connection or "First Mile." After your video stream reaches dvCloud, you can depend on dvCloud's reliable, high-bandwidth network to deliver the stream to your favourite destinations, like Facebook and YouTube.

Specifications
Resolution
  • 1280x720
  • 1920x1080
  • 3840x2160
Framerate
  • 25
  • 29.97
  • 50
  • 59.94
  • 60
Sensor 1/2.8" CMOS
Zoom
  • 16 x Digital
  • 12 x Optical
Pan 300 º
Tilt -15 to +130 º
Pan/Tilt Speed 0.876°/s~43°/s
NDI Protocol NDI | HX3
Protocols
  • RTMP
  • RTSP
  • SRT
Control Protocol
  • DVIP
  • IP Control
  • NDI Control
  • ONVIF
  • Pelco D
  • Pelco-P
  • VISCA
  • VISCA over IP

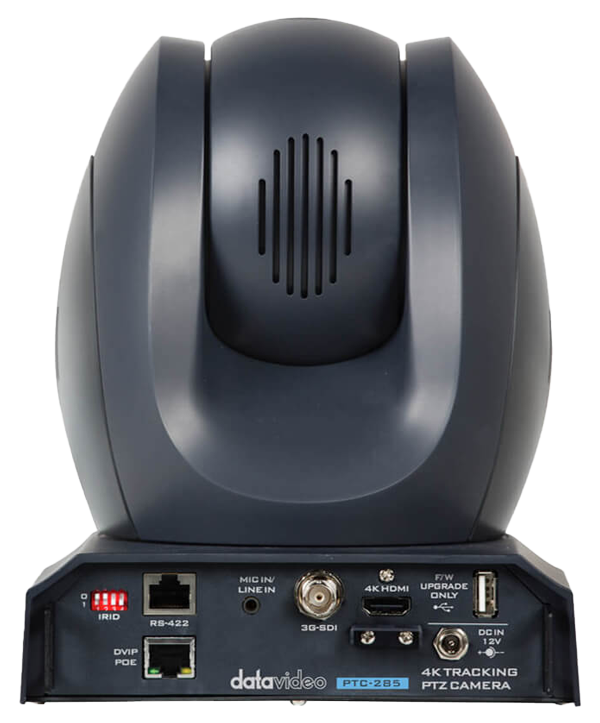

Connectivity
  • 3.5mm Stereo Mic/Line In
  • 3G-SDI Out
  • DC 12V
  • HDMI 2.0
  • RJ45 (PoE)
  • RS-422
  • USB
Weather Sealing
LCD Display No
Weight 2,600 g
Dimensions 173x219x189.08 WxHxD
