Datavideo - 'HDR-90'
'ProRes 4K Video Recorder-1U Rackmountable'

Datavideo HDR-90 ProRes 4K Video Recorder

UHD 4K Recording and Compressed in 10-Bit 4:2:2 ProResDatavideo’s HDR-90 is a 1U rack-mountable 4K ProRes Dual Disk Recorder designed for Outdoor Broadcast Vans or other integrated systems. With a built in 5” LCD touch screen on the front for video monitoring, device settings and configuration. The monitors is fitted with a complete suite of scopes and calibration tools including waveform, vectorscope and focus peaking to ensure perfect recording.

Built-in Touchscreen & ISO Recording

Datavideo HDR-90 ProRes 4K Video Recorder

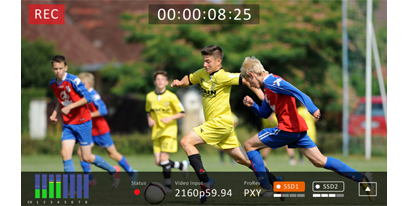

Large 5'' LCD Touch screen
for operating and monitoring
The HDR-90 has a built-in 5-inch touch screen, allowing you to easily configure parameters and view the live video.

Datavideo HDR-90 ProRes 4K Video Recorder

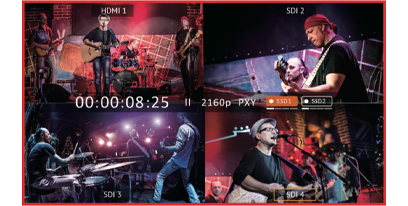

ISO Recording of four videos,
3G ISO recording and HD playback
Not just for a single-camera setup, HDR-90 can record up to four 1080p60 streams simultaneously to separate ProRes files. All files are synced with the same time code, making it easy for tracking during post-production.

Multiple Input & Output Configurations

Datavideo HDR-90 ProRes 4K Video Recorder

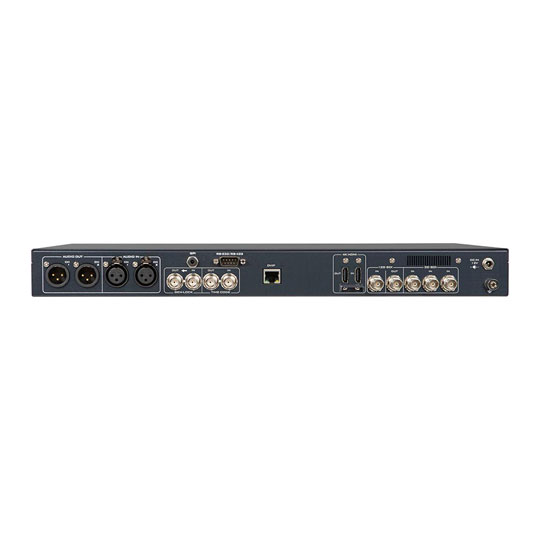

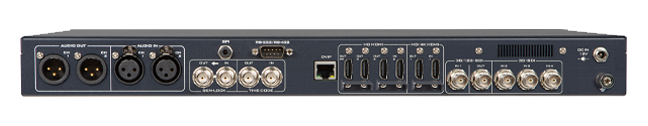

Supports multiple inputs and output configurationsSupports one 4K HDMI input, one 12G SDI input, and three 3G-SDI input as well as video outputs with embedded audio.

Datavideo HDR-90 ProRes 4K Video Recorder

2 x XLR Analogue Audio Inputs and 2 x XLR Analogue Audio OutputsAudio input can be embedded into the video for output playback thus making HDR-80 the device for live event broadcast.

Datavideo HDR-90 ProRes 4K Video Recorder

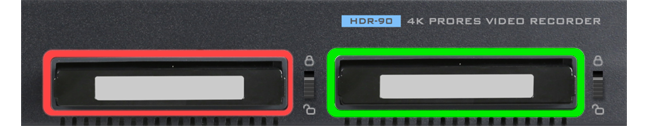

Easy post-edit and playbackCompressed videos are saved on two 2.5" SSD drives. If one disk is full, the recording will automatically continue on the second disk. It’s easy to expand storage for continuous recording.

Built-in Vector Scope and Closed Captioning

Datavideo HDR-90 ProRes 4K Video Recorder

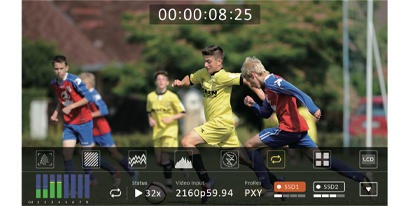

Vector ScopeHDR-90 built-in vectorscope allows you to monitor your record video quality.

Datavideo HDR-90 ProRes 4K Video Recorder

A recorder that can be operated
like a video switcher
The HDR-90 is not only an ISO recorder, but it can also be used as a four-channel HD video switcher. Display all four sources in quad view, you can cue and simply tap the touch screen to switch seamlessly between cameras. PGM output can even be used for live streaming.

Datavideo HDR-90 ProRes 4K Video Recorder

Closed CaptionWith closed caption support, embedded captions on SDI inputs can be encoded as metadata in recorded .mov files.

The Tech Spec

Features Specification
Video Standard UHD & HD
Video Format 2160p 23.98/24/25/29.97/30/50/59.94/60Hz
1080p 23.98/24/25/29.97/30/50/59.94/60Hz
1080i 50/59.94/60Hz
720p 50/59.94/60Hz
Supported Video Input Signal 1x 3G/12G-SDI
3x 3G-SDI
1x HDMI 2.0
1x HDMI 1.4
Video Output 1x 3G/12G-SDI
1x HDMI 2.0
3x HDMI 1.4
Analog Audio Input 2x Balanced XLR
Analog Audio Output 2x Balanced XLR
Embedded Audio SDI Input / Output (8CH )
HDMI Input / Output (8CH)
Storage Medium 2.5" SSD
Multi-channel Recording Yes, 4-CH HD
Estimated Record Time (min per 10GB) HD: 27 (Proxy), 11.5 (LT), 8 (Standard), 5.5 (HQ)
3G: 13 (Proxy), 6 (LT), 4 (Standard), 2.5 (HQ)
Recording Media 2x 2.5" Removable SSD
Storage File System exFAT
Video Recording Bit Rate/Colour Sampling ProRes 422 HQ
ProRes 422
ProRes 422 LT
ProRes 422 Proxy
Audio Recording Format Uncompressed PCM
Sampling rate 48KHz 24bit
Preview Display 5" Touch LCD
Time Code In / Out Yes
External Sync / Genlock Black Burst & Tri-level with loop thru
External Control RS-232/422 (Dsub 9pin),
DVIP (Ethernet),
GPI (3.5Ø phone jack)
Chassis 1RU rack-mountable
Dimension (LxWxH) 440 x 300 x 49 mm
Weight 4kg
Operating Temp Range 0~40 °C
Power DC 12V
