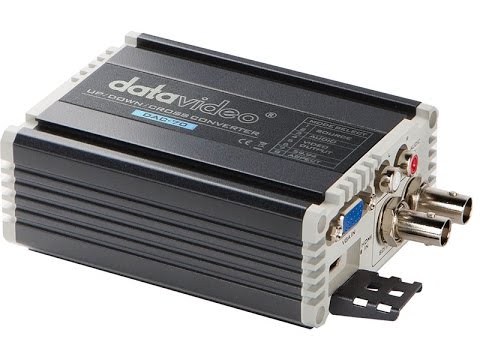

Datavideo DAC-70 video signal converter
Datavideo DAC-70 - Up / Down / Cross Converter - Audio/HDMI/SDI/VGA Input, 3G/HD/SD SDI and HDMI Output
£419.48
In stock
Pay on Scan Finance with a 10% deposit from just £10.48 / month (APR 15.9%)
Free Delivery
Delivery options
Free
By DPD On 28th Jul 2017
DPD
Delivered to your specified address. Receive SMS with one-hour delivery window.
Free
Collect Instore
Q-Collect
Place your order online and collect from our Bolton store with Q-Collect.
Weekend, timed and European delivery options are available at checkout
ScanProtect protection
ScanProtect
Protect against installation damage for 28 days.More
Product Overview
Datavideo DAC-70 up/down/cross converter is designed to convert video signals from VGA, HDMI, SDI with Audio input to 3G/HD/SD SDI outputs.
Perfect for connecting a VGA/HDMI output from computer to SDI devices over long distance SDI cable. Solutions like lecture theatres, churches, auditorium rooms and conference halls.
Video Input formats
SD-SDI: 525i, 625i
3G-SDI: 1080p60/50, 1080p59.94 (Level A)
HD-SDI: 1080i60/50, 1080p30/25/24, 1080p29.97, 1080p23.98, 1080i59.94, 720p60/50, 720p59.94
HDMI: (YUV/RGB): 1080p60/50, 1080p59.94, 1080p30/25/24, 1080p29.97, 1080p23.98, 1080i60/50, 1080i59.94, 720p59.94, 720p60/50, 576p, 480p, VGA, [email protected], [email protected], [email protected], [email protected], [email protected], [email protected]
Video Output formats
SDI / HDMI (YUV: 4:2:2): 1080p60/50, 1080p59.94, 1080p23.98/29.97/24/25/30, 1080i60/50, 1080i59.94, 720P60/50, 720P59.94, 525i, 625i
Supported Audio formats
SDI embedded Audio: Up to 8-CH, PCM 48KHz
HDMI embedded Audio: up to 8-CH, PCM 96KHz
- Stereo audio input: 2-CH, PCM 48KHz
* USB interface for firmware upgrade Features • 3G/HD/SD Up/Down/Cross convert.
• Audio/HDMI/SDI/VGA input.
• 3G/HD/SD SDI and HDMI output.
• Can be rackmounted using optional RMK-2 2RU Rack solution.
• DC 12V, 3.6 watts.
Perfect for connecting a VGA/HDMI output from computer to SDI devices over long distance SDI cable. Solutions like lecture theatres, churches, auditorium rooms and conference halls.
Video Input formats
SD-SDI: 525i, 625i
3G-SDI: 1080p60/50, 1080p59.94 (Level A)
HD-SDI: 1080i60/50, 1080p30/25/24, 1080p29.97, 1080p23.98, 1080i59.94, 720p60/50, 720p59.94
HDMI: (YUV/RGB): 1080p60/50, 1080p59.94, 1080p30/25/24, 1080p29.97, 1080p23.98, 1080i60/50, 1080i59.94, 720p59.94, 720p60/50, 576p, 480p, VGA, [email protected], [email protected], [email protected], [email protected], [email protected], [email protected]
Video Output formats
SDI / HDMI (YUV: 4:2:2): 1080p60/50, 1080p59.94, 1080p23.98/29.97/24/25/30, 1080i60/50, 1080i59.94, 720P60/50, 720P59.94, 525i, 625i
Supported Audio formats
SDI embedded Audio: Up to 8-CH, PCM 48KHz
HDMI embedded Audio: up to 8-CH, PCM 96KHz
- Stereo audio input: 2-CH, PCM 48KHz
* USB interface for firmware upgrade Features • 3G/HD/SD Up/Down/Cross convert.
• Audio/HDMI/SDI/VGA input.
• 3G/HD/SD SDI and HDMI output.
• Can be rackmounted using optional RMK-2 2RU Rack solution.
• DC 12V, 3.6 watts.
