D-BOX G5 4250i Motion & Haptic Platform

Full-System Feedback

The D-BOX G5 4250i Haptic System is a four-actuator motion platform that sits beneath your simulator, lifting the entire rig to deliver controlled movement and high-frequency feedback through your whole driving position. With 1.5 inches of travel and fast actuator response, it focuses on speed and detail — translating telemetry into physical cues you can feel through the seat, pedals, and wheel.

Fast, Readable Feedback You Can Drive On

G5 is tuned for clarity. Subtle road texture, curb detail, traction loss, and weight transfer come through as sharp, controlled inputs that are easy to interpret mid-corner. The system reacts quickly enough to support real-time corrections, helping you stay ahead of slides, braking limits, and balance shifts with confidence.

Integrated Hardware, Clean Setup

Each actuator handles both motion and vibration internally, removing the need for external shakers or additional components. A single compact controller manages the full four-actuator setup, keeping cabling simple and the footprint tidy. It’s a complete motion system that doesn’t sprawl across your rig or workspace.

Installation with Everything Included

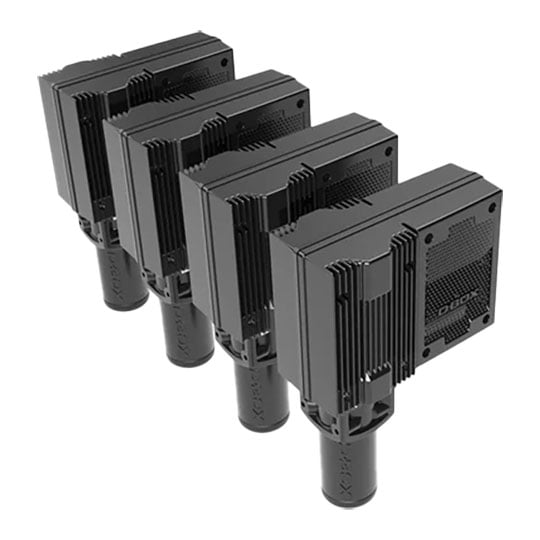

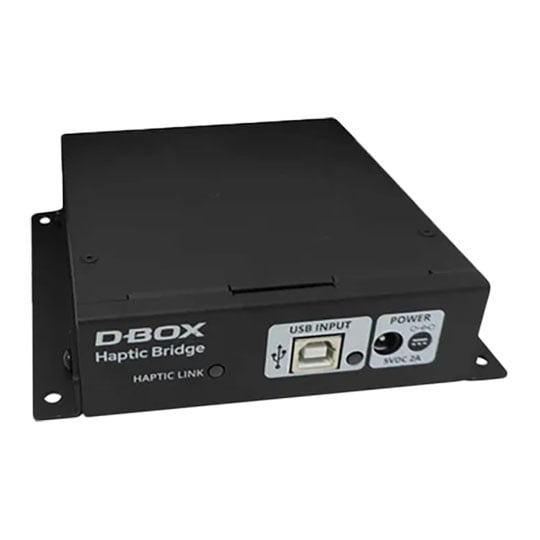

The G5 4250i arrives with all core components and cabling in the box. You get four G5 haptic actuators with RJ45 cables pre-inserted, a Haptic Bridge, and a dedicated power supply to run the system. Power is handled via three included cables, with two Y-splitters helping distribute connections across the setup.

Data connection is handled with a USB-A to USB-B cable, supported by a 10-inch USB extension for easier routing. The package also includes plug lock inserts to secure connections once installed. Mounting screws and non-adaptive endings are provided to complete the setup, giving you everything needed to get the system up and running without sourcing extra parts.

Tuned Through Software, Driven by Data

Using D-BOX HaptiSync Center on PC, the system can be configured per title, car, and preference. Supported sims use dedicated haptic profiles built from telemetry data, while adaptive modes extend feedback to other PC titles. Intensity, behaviour, and response can all be adjusted, letting you prioritise detail or aggression depending on the session.

Important Notice: This system does NOT include installation brackets. Appropriate mounting hardware will need to be sourced separately to get you up and running.

• Four-actuator motion and haptic system that lifts the entire simulator for full-body feedback .
• 1.5-inch travel focused on fast response and high-detail feedback .
• Motion and vibration generated within each actuator.
• Communicates road texture, curbs, grip loss, weight transfer, understeer, and oversteer .
• Compact single-controller design keeps cabling and setup contained.
• Actuators, controller, power supply, cabling, and installation hardware included .
• Configurable through D-BOX HaptiSync Center with per-title and per-car tuning .
• FIA-licensed haptic system used by professional drivers and simulator manufacturers .
• Broad title support with dedicated profiles and adaptive modes for unsupported PC games.

Specifications

System Type: Four-actuator G5 motion and haptic platform
Travel Range: 1.5 inches / 38.1 mm
Controllerr: Single controller for all four actuators
Maximum Lifting Capacity (per actuator): 250 lb / 113 kg
Maximum Velocity: 100 mm/s
Maximum Acceleration: ±1 g
Frequency Response: 0–100 Hz
Supported Voltage: 120V / 230V selectable
