D-BOX G3 4250i-3 Four Actuator Motion and Haptic System

For Users Who Want it All

The D-BOX G3 4250i-3 Haptic System is the choice for sim racers who want realistic motion, deep travel, and authentic physical feedback. With its 3-inch range and powerful full-body engagement, G3 brings you closer to the car than ever before — letting you feel suspension load, curb strikes, surface texture, and every weight shift with real-world clarity.

The Foundation of Your Sim

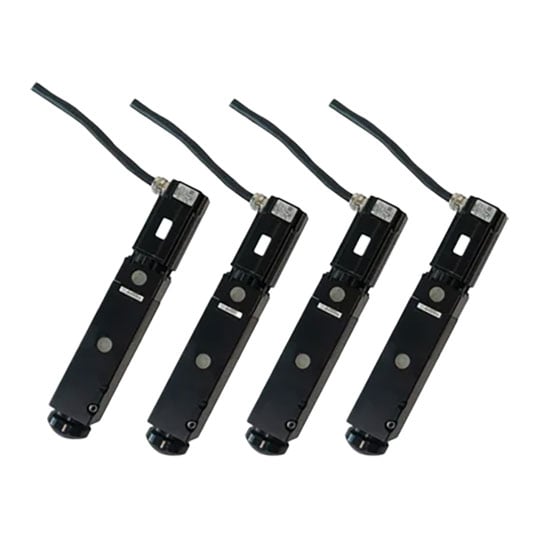

The D-BOX G3 4250i-3 is a four-actuator motion and haptic platform designed to sit directly between your cockpit and the floor. Each actuator replaces a standard rig foot, lifting the entire simulator — seat, wheel, pedals, and driver — into a unified motion structure. Rather than adding effects to a single contact point, G3 moves the whole driving position, so every force is felt across your body as it would be in a real car.

Realistic Feedback

Each actuator handles both large-scale movement and high-frequency vibration internally. There’s no need for external shakers, amps, or extra mounting hardware. Vertical travel delivers suspension movement, braking dive, and elevation changes, while rapid micro-movements convey surface detail, curb texture, tyre slip, and load transitions. Everything comes from the same hardware, which keeps the feedback coherent and easy to read at speed.

Software Setup That Matches Real Driving

On PC, the system is configured through D-BOX HaptiSync Center. From there, you select supported titles, adjust intensity levels, and choose how much motion and vibration you want from each driving cue. Profiles can be tuned per car and per sim, letting you run subtle feedback for training or sharper response for competitive sessions. The system responds to telemetry, not scripted effects, so what you feel is driven by the car’s behaviour on track.

Built for Long Sessions

The G3 line is engineered for sustained use, maintaining the same response over long practice runs and endurance races. Each actuator supports up to 250 lb, giving the platform the headroom needed for heavier rigs, direct drive wheels, and load cell pedals. Power delivery and thermal limits are managed to keep performance steady rather than tapering off mid-session.

Tuned to You, Not Locked In

Through HaptiSync Center on PC, the G3 system adapts to your preferences. Intensity, profiles, and behavior can be adjusted per car and per title, letting you dial in exactly how much information you want coming through the rig. Subtle when you’re learning, aggressive when you’re pushing — the system follows your intent.

• Four-actuator motion and haptic system that lifts the entire simulator, delivering full-body feedback through the seat, pedals, and wheel.
• 3-inch vertical travel allows the system to reproduce suspension movement, braking dive, elevation changes, and chassis load.
• Motion and high-frequency vibration are generated inside each actuator, removing the need for external shakers or additional hardware
• Communicates grip, weight transfer, curb strikes, surface texture, understeer, and oversteer through physical movement you can react to.
• Installs at the four corners of most aluminium profile and fixed-frame cockpits, replacing standard rig feet.
• Configured through D-BOX HaptiSync Center on PC, with adjustable intensity and per-title profiles.
• Officially licensed haptic motion system of the FIA, meeting professional motorsport standards.
• Supported by the largest haptic content library available, with handcrafted profiles for sim racing and adaptive modes for other PC titles.

• System Type: Four-Actuator motion and haptic platform.
• Vertical Travel: 3 inches / 76.2 mm.
• Maximum Lifting Capacity (per actuator): 250 lb / 113 kg.
• Maximum Velocity: 100 mm/s
• Maximum Acceleration: ±1 g
• Frequency Response: 0–100 Hz
• Supported Voltage: 120V / 230V selectable.
• Peak Current: 7.5 A
• Peak Current: 7.5 A
• Operating Temperature Range: 0–40 °C
• Operating Humidity Range: 10–85% (non-condensing)
